Proline CDW400P Owner's Manual

Proline cdw400p dishwasher
Hide thumbs

Advertisement

Table of Contents

line

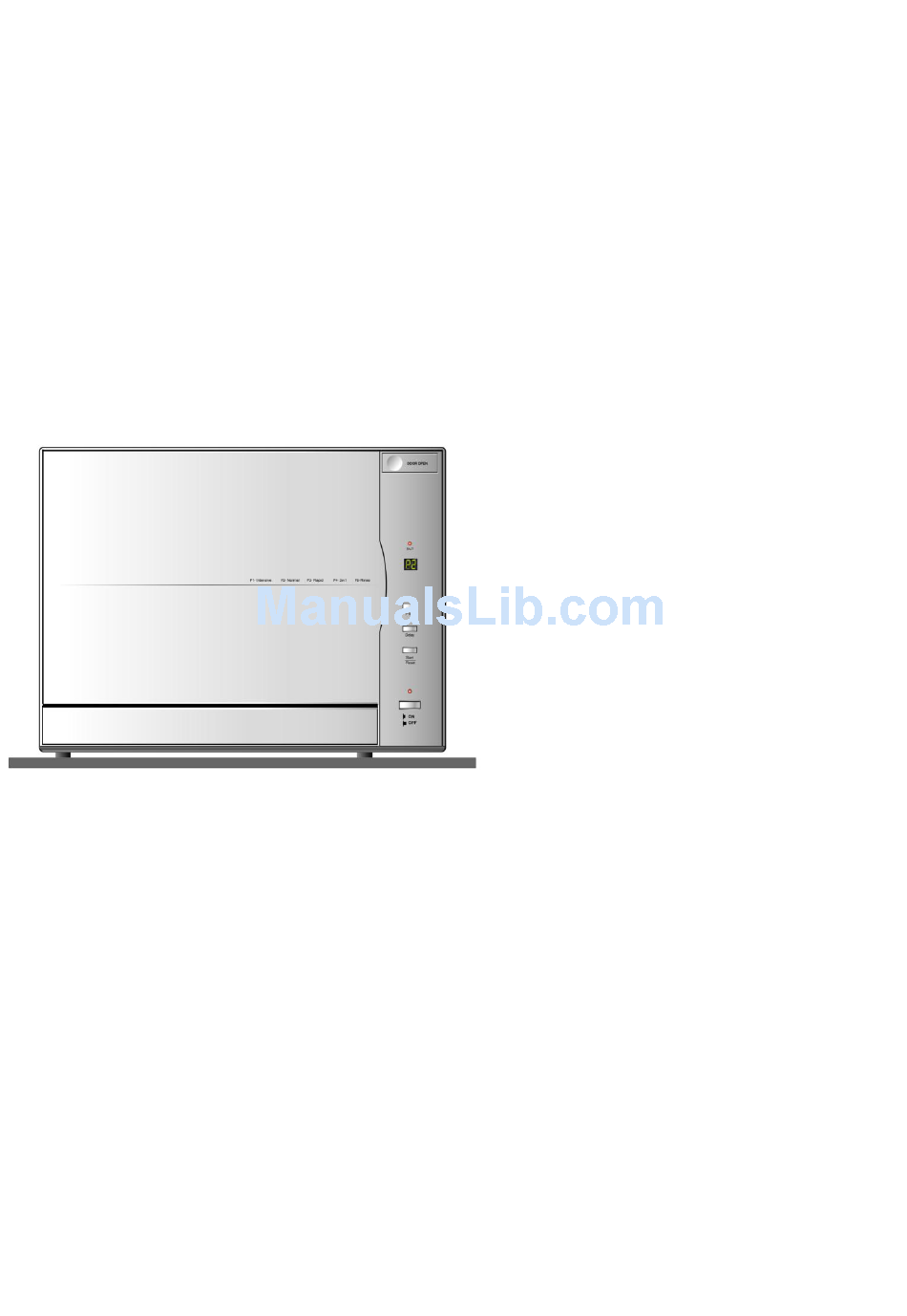

PRO
4 Place Settings
DISHWASHER
OWNER'S MANUAL
MODEL: CDW400P
Please read this manual carefully before
operating your dishwasher. Retain it for
future reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDW400P and is the answer not in the manual?

Questions and answers

Related Manuals for Proline CDW400P

Summary of Contents for Proline CDW400P

  • Page 1 4 Place Settings DISHWASHER OWNER’S MANUAL MODEL: CDW400P Please read this manual carefully before operating your dishwasher. Retain it for future reference...

  • Page 2: Table Of Contents

    Table of Contents Unit Parts……………………………………………………………… Important Safety Instructions-………………………………………. Unpacking……………………………………………………………… Electrical Installation………………………………………………… Installation instructions………………………………………………. Operation……………………………………………………………… Loading your dishwasher……………………………………………... Preparing your dishes for washing…………………………………… Using the right detergent……………………………………………… Using a rinsing agent………………………………………………….. Operating instruction…………………………………………………. Cleaning you dishwasher and filter………………………………….. Program Summary/Selection………………………………………… Common Problems and Solutions-………………………………….. Suggestion and Practical advise…………..………………………….

  • Page 3: Unit Parts

    Unit Part Identification FRONT VIEW BACK VIEW INSIDE VIEW 2. Door lock button 12. Water softener 3. Salt refill indicator light 13. Spray arm assembly 4. Display window 14. Filter assembly 5. Program function button 15. Rinse aid dispenser 6. Delay start button 16.

  • Page 4: Important Safety Instructions

    WARNING IMPORTANT SAFETY INSTRUCTIONS Dear customer, Please read these instructions carefully before installing the dishwasher, and using it for the first time. The information contained herein is provided to avoid accident and/or damage to you and your dishwasher. Please keep these instructions in a safe place for your future reference. Warning and safety information The dishwasher should be operated under the operating voltage specified on the rating plate.

  • Page 5: Unpacking

    Do not spray water on the appliance. It may cause the failure of electric parts or electric shock. Do not push down or sit on the inner door when the door is opened. It may cause the deformation or failure of your dishwasher. Do not use the dishwasher detergent for hand washing.
  • Page 6 WARNING SAVE THESE INSTRUCTIONS Instructions pertaining to a risk of fire, electric shock, or injury to persons Electrical Instructions: UK only An electrical supply of 220-240 volts 50Hz AC is required. Make sure that a suitable electrical supply socket is located close to where the dishwasher is to be placed. For your personal safety.

  • Page 7: Installation Instructions

    Installation Instructions Your dishwasher can be installed in various locations in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply. Note: The plug must be accessible at all times. Levelling The dishwasher must be installed on a „solid‟...

  • Page 8: Operation

    OPERATION: Your dishwasher cleans by spraying a mixture of hot clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray arm.

  • Page 9: Loading Your Dishwasher

    Control panel and the LED display 1 Salt Warning Light, comes on when the softener needs to be refilled with salt. Program 2 Display window running indicator, displays the delay time and Error codes. 3. Program button. Press the button to select washing program 4.

  • Page 10: Preparing Your Dishes For Washing

    - NOTE: for ease of loading / unloading large size dinner plates from the dish rack, it may be necessary to (temporarily) remove the silverware basket. When loading / unloading is complete, return the silverware basket to its original position. Preparing your Dishes for Washing - Scrape off all solid food particles from the dishes.

  • Page 11: Using The Right Detergent

    Using the Right Detergent The recessed detergent area located on the inside door panel will hold approximately 12 grams of detergent. Follow the detergent manufacturer’s guidelines. Use only detergent specifically made for use in dishwashers, as other types will cause over sudding.

  • Page 12: Using A Rinsing Agent

    4. Fill the salt into the salt container until a small amount of water comes out (this is very important when you use the dishwasher for the first time) When you have added all the 250 grams of salt and water still does not come out add slightly more water the salt indicator will go out after a few wash cycles.
  • Page 13 3. Place the dishes on the dish rack and cutlery (unsorted) inside the cutlery basket. 4. Check to make sure that the rotating spray arm can turn freely all the way round. If necessary remove any obstacles. 5. Fill the detergent in the recessed area on inner door panel. (Approx. 12 grams) 6.

  • Page 14: Cleaning You Dishwasher And Filter

    4. Press the start button 5. The set time display will start to flash After the set time as elapsed the program will start. Please ensure that the dishwasher is fully connected to the supply mains and water supply. To reset your dishwasher turn the power button off and then back on. START / RESET BUTTON Pressing this button pauses the selected program the display stops flashing and you are able to open the door to add a forgotten item, re-closing the door will restart the...
  • Page 15 Water Consumption: 5.4 litres (Note: the washing time may vary according to the incoming water temperature and the environmental temperature). Main technical data Brand PROLINE CDW400P Model Power input 1280W Outer dimension(L x W 570 x 480x465 x H) Weight About 22.5 kg...
  • Page 16 sensor or of the heating element abnormal water level too much inlet water COMMON DISH WASHING PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Dishwasher will not start * Dishwasher not receiving * Check electrical connection Electrical power. Fuse/circuit breaker * Door is unlatched.

  • Page 17: Suggestion And Practical Advise

    Load glasses on the upper rack only not over dish rack pins. glasses Loaded over dish rack pins are Not properly supported and Subject to damage. Water remains in bottom * A small amount of water * This is necessary to (in sump area) is normal.
  • Page 18 The fuse has not blown in the mains plug. The door is firmly closed. The water connection tap is fully open. The water supply is working correctly (turn on a tap close by) The drain hose is not blocked or bent. That the correct program as been selected.
