∗The signal splitter is really a combination of two circuits, a bridge rectifier and a current router. The bridge rectifier ensures that power is correctly supplied to the active sensor; it consists of the left
four diodes in Figure 11-5. The current router ensures that the sensor signal is supplied with the correct polarity to the input on the RCX. The right two diodes in Figure 11-5 make up the current router.
Not all Hall effect sensors are created equal. Some have on-board circuitry that processes the sensor's signal and converts it to a boolean electrical signal. Some respond to one polarity of magnetic
field; some respond to both. Read the fine print closely when you buy a Hall effect sensor.
The circuit presented in this section is built around a "sticky" Hall effect sensor (Digi-Key part number DN6847SE-ND). This sensor responds to both magnetic polarities. One polarity turns the
sensor on, and the other turns it off. The on or off setting "sticks" until the opposite magnetic field is applied. The processing circuitry is all built into the sensor. Hooking up the sensor to the RCX
is a matter of applying the signal splitter circuit from the previous section, as shown in Figure 11-7.
Once the sensor is hooked up, you can read boolean values from the appropriate input. Remember, though, you need to configure the input for a powered sensor. In NQC, it looks like this:
SetSensorType(SENSOR_3, SENSOR_TYPE_LIGHT);
SetSensorMode(SENSOR_3, SENSOR_MODE_BOOL);
How you use this sensor is, of course, up to you. You could build the Hall effect sensor and the signal splitter circuit into a large LEGO brick. Then you could build small permanent magnets into
other LEGO bricks. This would give you a flexible system, suitable for building limit switches, counters, or anything you can imagine.

Touch Multiplexer

No matter what software you're running, the RCX still has only three inputs and three outputs. Short of using another RCX, what can you do if you want to use
Figure 11-6.
A Hall effect sensor

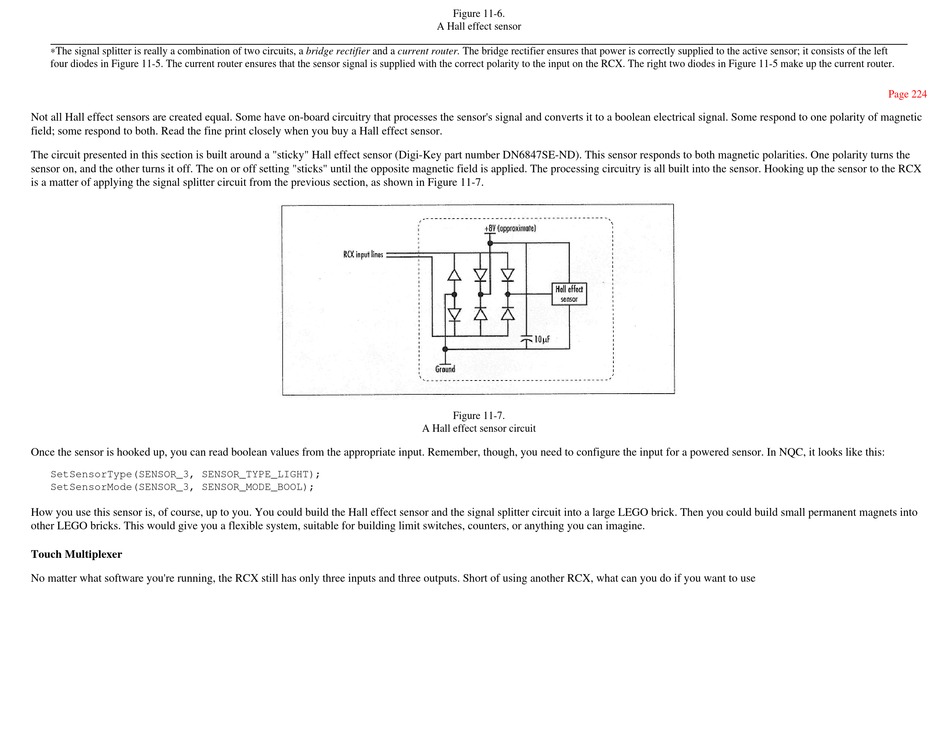

Figure 11-7.
A Hall effect sensor circuit
Page 224
