Introduction
The Bluetooth reader is a combined for codes and Bluetooth.
The output is a Wiegand format as for other Conlan Wiegand readers. To be used in
connection to other Wiegand controllers or the stand alone Wiegand Controller from
Conlan (Art. No. 460116).
In standby the yellow LED is lit.
Correct mobile phone flashes the green LED one time.
Incorrect code lights the red LED.
Installation
• Mount the reader.
• Connect the wires to the power supply, Wiegand Controller etc.
• Apply voltage min. 9V, max. 42V DC.
Note: Right after applying the voltage all LED's light and the buzzer sounds do not touch
the reader untill the yellow LED lights and the buzzer is silent.
Example:
Example:
Example:

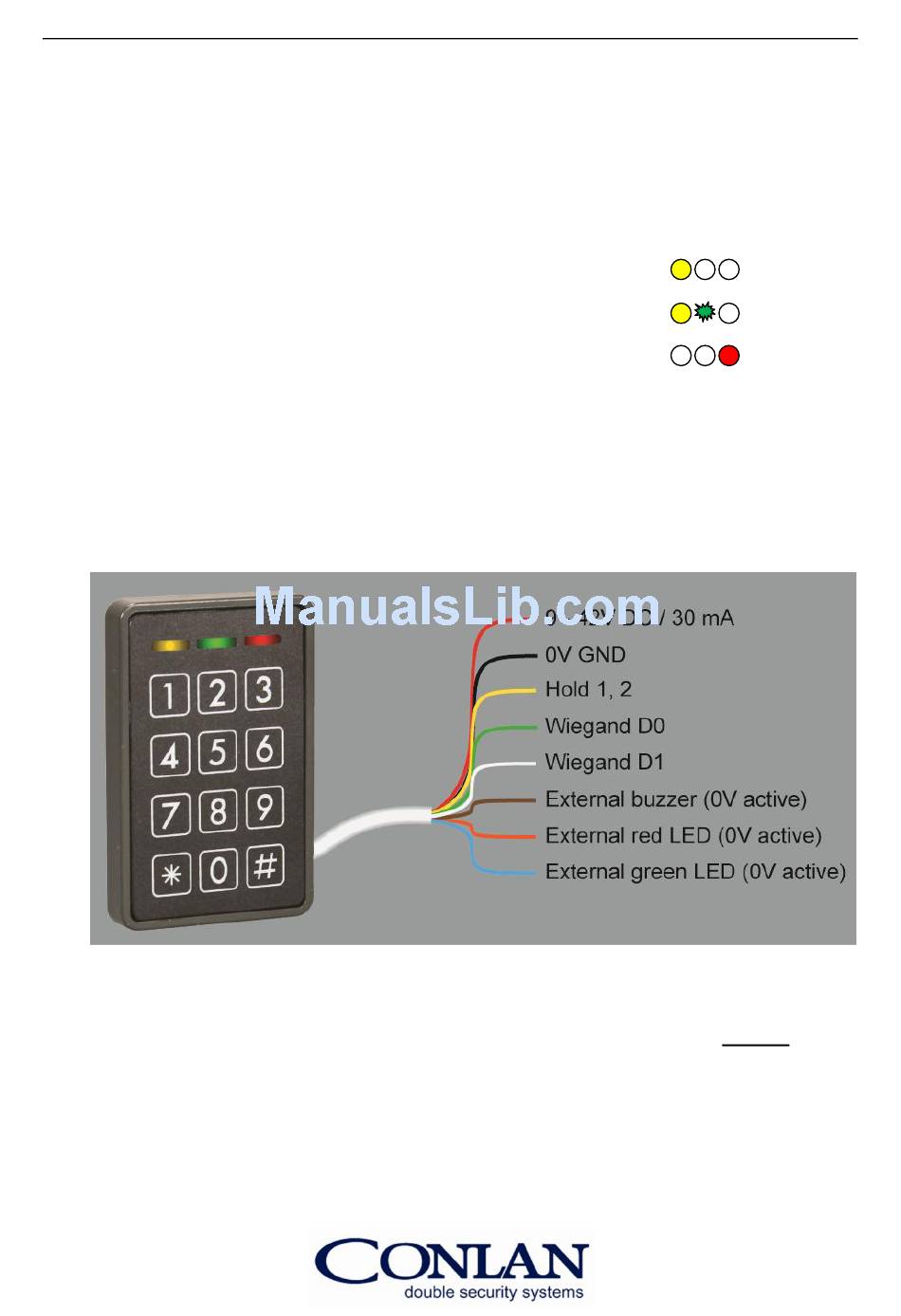

CB 1200 - wiring diagram
