Summary of Contents for Conlan CT 1000

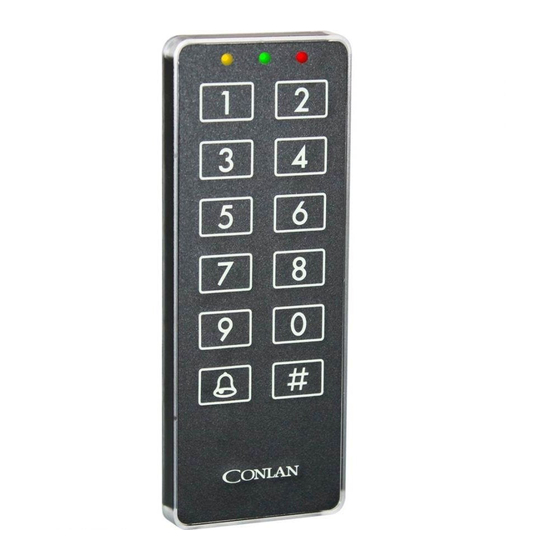

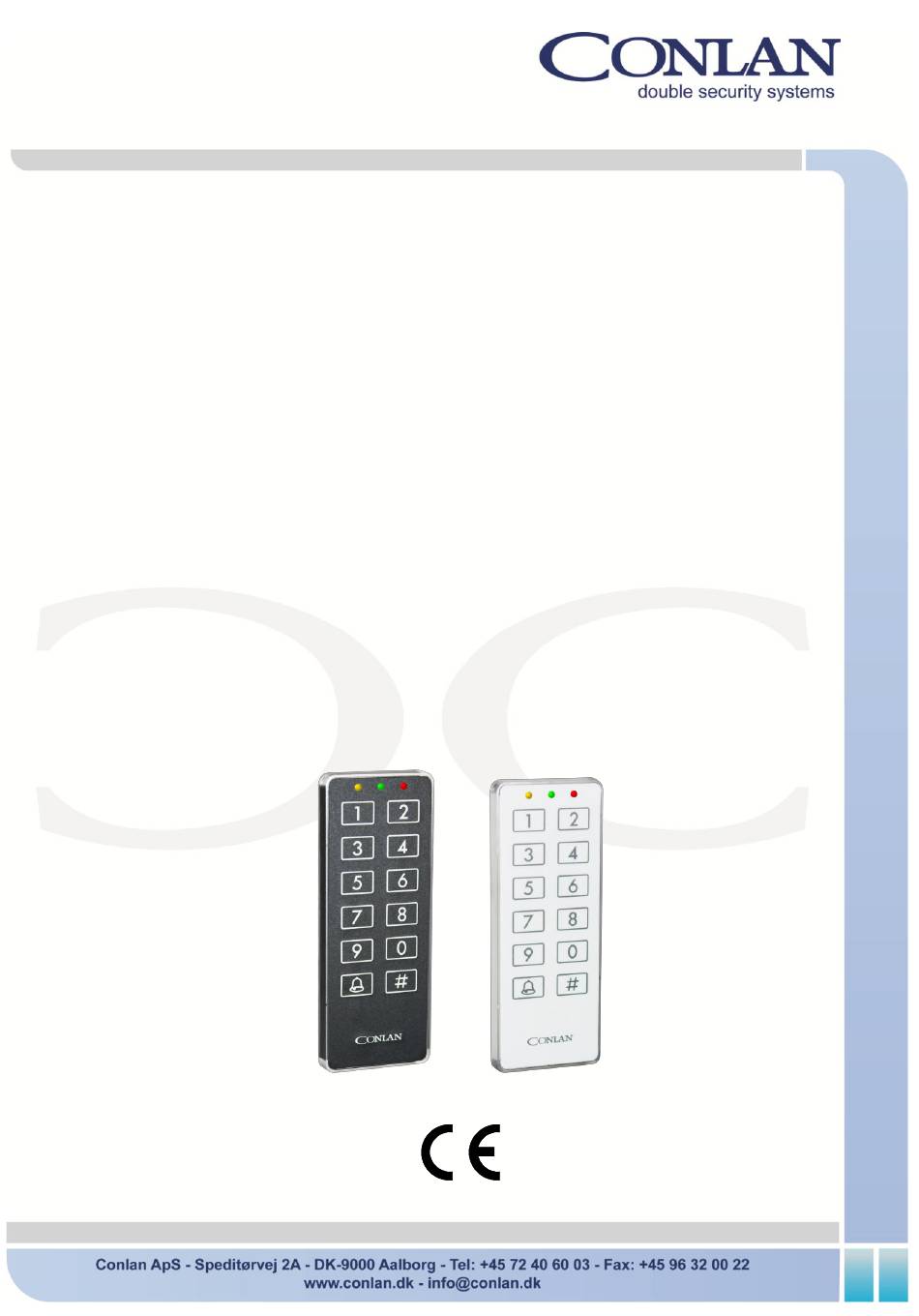

- Page 1 CT 1000 Keypad Art. No.: 460100 (black) Art. No.: 460106 (white) User Manual CT1000v.6 Manual ENGjul13...
- Page 2 3. Programming Users ................4 3.1 Positions .................. 4 3.2 Programming the User Codes ........... 4 4. Configuration of the CT 1000 ............5 4.1 Service Code ................5 4.2 Configuration Overview ............5 4.3 Changing the Master Code ..........5 4.4 Changing the Service Code ..........
- Page 3 CT 1000 has a buzzer for indicating while keying, correct code, incorrect etc. and 2 transistor outputs with open collector for controlling of locks, REX etc. CT 1000 is a stand alone unit, that can be programmed directly by Master Code and Service Code.
- Page 4 Programming Users Programming the CT 1000 is simple and easy to understand. Positions CT 1000 has 28 positions, which can contain a code from 1 to 8 digits. The code in position 1 is 1234 (default). Programming the User Codes The Master Code is used to program/change/delete the users.
- Page 5 (the service code can now be entered within 10 seconds). After entering the Service Code the reader is in programming mode (the green LED lit). Each time a setting is made the CT 1000 goes back to the previous point and the next setting can be made.
- Page 6 # again or wait 10 seconds. Output Time CT 1000 has 2 transistor outputs (yellow (4) and white (3) wire), which both are activated in 5 seconds (factory default) by correct code, the activation time can be changed.
- Page 7 # again or wait 10 seconds. Function Settings These settings is used to change CT 1000's functions e.g. to use the Service Code without power down and up, mut the buzzer etc. The overview below shows the values for the different functions.
- Page 8 LED's light and the buzzer sounds. When only the yellow LED is lit and the reader is silent, turn off power, separate the yellow and brown. The CT 1000 is now reset to default and the user codes/cards are deleted. Technical Specifications Voltage: 12V DC, 30mA.
