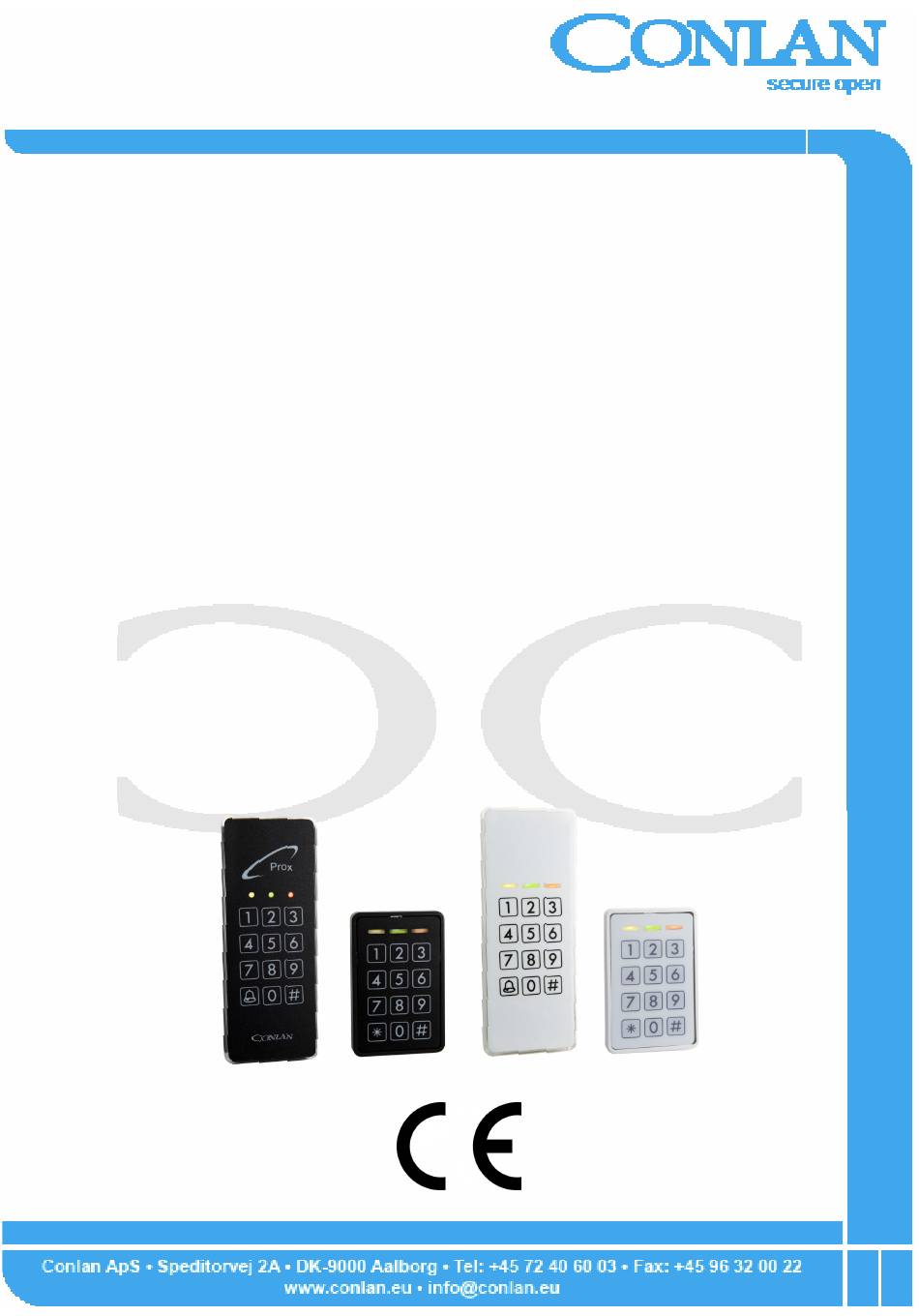

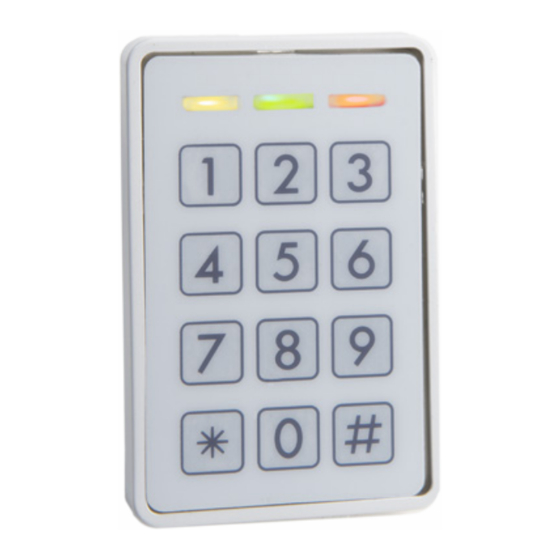

- Page 1 Codetastatur C1000 Mykey - Art. Nr: 480000 (sort), 480001 (hvid) Classic - Art. Nr: 482000 (sort), 482001 (hvid) User manual C1000_usermanual_ENGjan20...
-
Page 2: Table Of Contents
4 3.2 Programming user codes page 4 3.3 Programming codes for page 5 special functions 3.4 Smart reading page 6 4. Configuration of C1000 page 7 4.1 Service code page 7 4.2 Configuration overview page 7 4.3 Change the Master code page 7 4.4 Change the Service code... -
Page 3: Introduction
By incorrect code the red LED is lit (○ ○ ●) C1000 has a buzzer for indicating while keying, correct code, incorrect etc. and 2 tran- sistor outputs, independant from each other, so the C1000 can give access by code. The C1000 is a stand alone unit, the can be programmed directly by Master code and Service code. 2. Installation Mount the reader on a even surface. (use the following drill template for precise fit-... -
Page 4: Programming Users
3. Programming users Programming the C1000 is simple and easy to understand. 3.1 User positions C1000 has 200 positions for codes. The positions are divided as following: User position Function Activates output 2 (the code in position 1 is 1234 - default) 1 - 100 101 - 150 Activates output 1... -
Page 5: Programming Codes For
Delete specific users Key in the Key in the Master code user position ○ ● ○ ● ● ○ ○ ● ○ ● ○ ○ (4711 - standard) Delete all users Key in the Key in Master code 2500 ○ ●... -
Page 6: Smart Reading
3.5 Smart reading This position makes it possible to program codes quicker without entering new posi- tions. Key in a position and it counts automatically to the next position. Codes can be programmed alternatively as you see fit. Key in the Key in Key in the start- Key in the code Master code ing position or show tag ○ ●... -
Page 7: Configuration Of C1000
ON (the Service code can now be entered within 10 seconds). After entering the Service code the reader is in programming mode (the green LED lights). Each time a setting is made the C1000 goes back to the previous point and the next setting can be made. -
Page 8: Change The Service Code
4.4 Change the Service code The Service code is used to configurate the C1000’s settings. To change the Service code, enter the following within 10 seconds after power on: Key in the Key in Key in a new Repeat new Service code code or show tag code/tag ○ ● ○ ● ● ○ ○ ○ ● ○ 4.5 LED indications The C1000’s 3 LED’s can be adjusted at will. To adjust the LED indications enter the following: adjust the LED’s for standby indication (normal). -
Page 9: Outputs
4.6 Outputs The C1000 has 2 transistor outputs, which both are activated for 5 seconds (factory default) when a correct code is entered. The output activation time can be changed and inverted. To cahnge these settings key in: ○ ● ● acitvation time for output 1 (white core) activation time for output 2 (yellow core) The time is set as: Key in minutes Key in hours Key in seconds 0 to 60 0 to 60 0 to 60 ●... -
Page 10: Special Settings
4.7 Special settings These settings is used to change the C1000’s special functions such as turning the buzzer on/off, enable High Security etc.. To change these settings, key in: ● ○ ○ = Service code without timeout ( = inactive / = active) ● ● = Master code be changed by Master code (... -
Page 11: Blocking
5. Blocking The C1000 is blocked for 1 minute after 4 incorrect codes. LED indication: ○ ○ 6. Manual reset The C1000 can be reset to factoty default manually. • Turn the voltage off. • Connect the yellow and brown wire. • Turn the voltage on (9 - 25 V DC) the readers LED’s lights and the buzzer sounds. • Turn the voltage off and disconnect the yellow and brown wire. The C1000 is now reset to factory default and the user codes/tags are deleted. 7. Technical specifications Voltage: By 12V DC, 30mA... -
Page 12: Connection Examples
External controlling green LED, 0V active Relay 0V GND Relay CT 2000 Prox ALARM SYSTEM A/S + 12V DC Doorstrike + 12V DC + 12V DC Thank you for choosing Conlan’s products. For technical support, call: +45 72 40 62 32...
