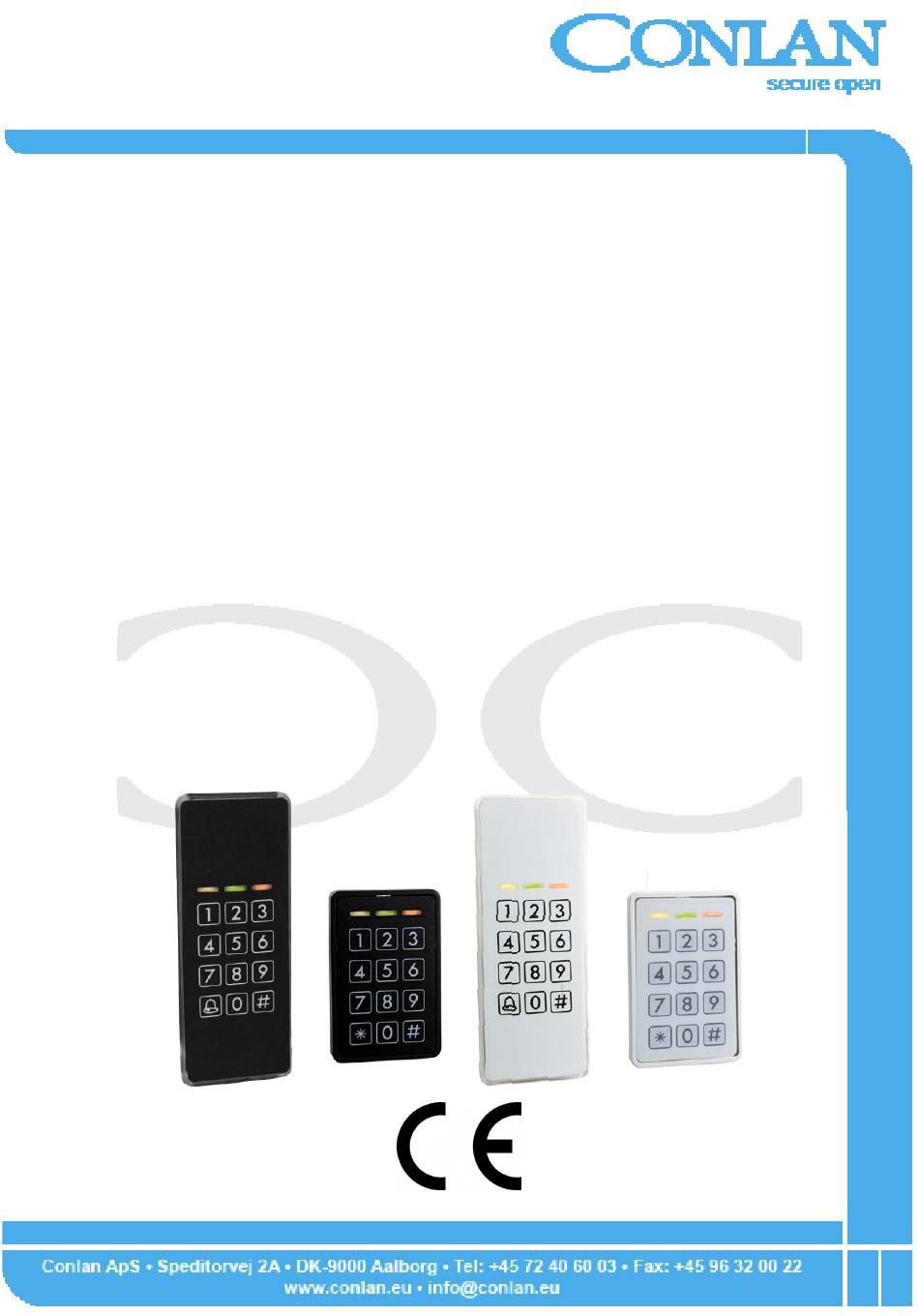

- Page 1 Code & Mifare CM1000 Mykey - Art. No: 480010 (black), 480011 (white) Classic - Art. No.: 482010 (black), 482011 (white) User manual CM1000_usermanual_ENGjan17...
-
Page 2: Table Of Contents
3.3 Programming Mifare tags page 5 3.4 Programming codes/Mifare tags for special functions page 6 3.5 Smart reading page 6 4. Configuration of CM1000 page 7 4.1 Service code page 7 4.2 Configuration overview page 7 4.3 Change the Master code page 7 4.4 Change the Service code... -
Page 3: Introduction

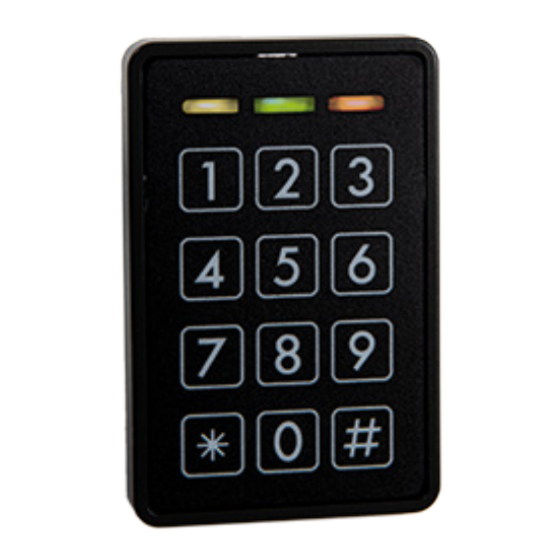

CM1000 has a buzzer for indicating while keying, correct code/tag, incorrect etc. and 2 transistor outputs, independant from each other, so the CM1000 can give access by code and Mifare tag. The CM1000 is a stand alone unit that can be programmed directly by Master code and Service code. -
Page 4: Programming Users
3. Programming users Programming the CM1000 is simple and easy to understand. 3.1 User positions CM1000 has 200 positions, which can contain a code or a Mifare tag. The positions are divided as following: User position Function Activates output 2 (the code in position 1 is 1234 - default) -
Page 5: Programming Mifare Tags
Key in the Key in Master code 2500 (4711 - standard) 3.2 Programming Mifare tags CM1000 can read Mifare classic 1K, classic 4K, Ultralight, Ultralight C, PLUS and DES- FIRE. Programming a new Mifare tag Key in the Key in the Show... -
Page 6: Programming Codes/Mifare Tags For Special Functions
3.4 Programming codes/Mifare tags for special functions Programming the codes and Mifare tags is described in 3.2 and 3.3. This entry acti- vates the output(s) for 5 seconds (factory setting). Only 1 user can enter at the time. Programming the same user twice By programming the same code/Mifare tag on the same position twice toggles the output. -
Page 7: Configuration Of Cm1000
ON (the Service code can now be entered within 10 seconds). After entering the Service code the reader is in programming mode (the green LED lights). Each time a setting is made the CM1000 goes back to the previous point and the next setting can be made. -
Page 8: Change The Service Code
4.5 LED indications The CM1000’s 3 LED’s can be adjusted at will. To adjust the LED indications enter the following: adjust the LED’s for standby indication (normal). adjust the LED’s for correct code/tag indication (active). -
Page 9: Outputs
4.6 Outputs The CM1000 has 2 transistor outputs, which both are activated for 5 seconds (factory default) when a correct code/Mifare tag is entered. The output activation time can be changed and inverted. To change these settings key in: acitvation time for output 1 (white core) -
Page 10: Special Settings
4.7 Special settings These settings is used to change the CM1000’s special functions such as turning the buzzer on/off, enable High Security etc. To change these settings, key in: = Service code without timeout ( = inactive / = active) = Master code be changed by Master code ( = inactive /... -
Page 11: Backup Card
5. Backup card The CM1000’s informations can be saved and loaded with a Backup card (Art. No.: 480080). Please view the following configuration scheme for further information. 6. Blocking The CM1000 is blocked for 1 minute after 4 incorrect codes/Mifare tags. LED indication: 7. Manual reset The CM1000 can be reset to factoty default manually. -
Page 12: Connection Examples
9. Connection examples Direct connection Relay connection Thank you for choosing Conlan’s products. For further assistance please contact our support service...
