  • Page 1 Keypad C1000LP Manual C1000LP_usermanual_ENGjun16...

  • Page 2: Table Of Contents

    4 3.3 Programming user codes on special positions page 5 3.4 Smart enrolling page 6 Battery Management page 6-7 5. Configuring C1000LP 5.1 Service code page 8 5.2 Configuration overview page 8 5.3 Changing Master Code page 8 5.4 Changing Service Code page 9 5.5 LED Indications...

  • Page 3: Introduction

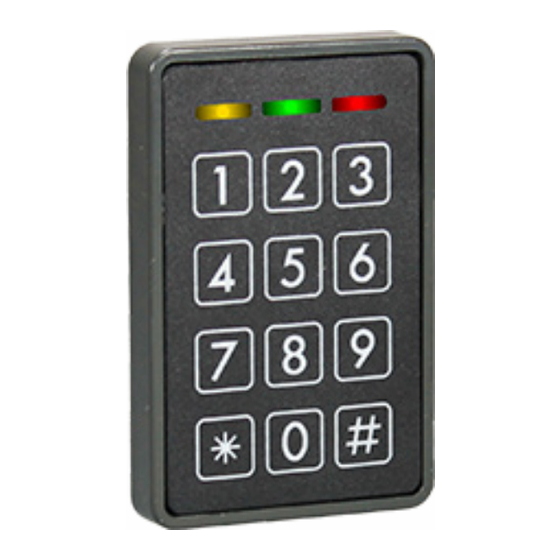

    1. Introduction C1000LP is a low power keypad that works on electroninc locks with open collector and/or H-Bridge mode. In standby mode is the yellow LED is lit (● ○ ○) By correct code lights yellow and green LED (● ● ○) By incorrect code lights the red LED (○ ○ ●) C1000LP has a buzzer for indicating while keying, correct code, incorrect etc. and 2 transistor outputs, independant from each other, so the C1000LP can give access by code. The C1000LP is a stand alone unit, the can be programmed directly by Master code and Service code. 2. Installation Mount the reader on a even surface. Connect the wires to power supply, door strike etc. (use supplied diode) Wire colours...

  • Page 4: Programming Users

    3. Programming users Programming the C1000LP is simple and easy to understand. 3.1 User positions C1000LP has 200 user positions, which can contain a code. The positions are divided as following: User position Function Activates output 2 (The code is position 1 is 1234 - factory default) 1 - 100 101 - 150 Activates output 1...
  • Page 5 Delete specific users Key in the Key in the Master code user position ○ ● ○ ● ● ○ ○ ● ○ ● ○ ○ (4711 - default) Delete all users Key in the Mas- Key in ter code 2500 ○...

  • Page 6: Smart Enrolling

    3.4 Smart enrolling This position makes it possible to program codes quicker without entering new posi- tions. Key in a position and it counts automatically to the next position. Codes can be programmed alternatively as you see fit. Key in the Key in Key in the start Key in the code Master code position ○ ● ○ ●...
  • Page 7 Custom battery low warning (2#): If you do not have any of the mentioned battery types, you can customize your battery size. See following instructions. Key in the Key in Custom battery  Key in Voltage Service code Key in 2 ○ ● ○ ○ ● ○ ● ○ ● ● ○ ○ Key in mV x 10 ○ ● ○ Here is an example of how you preset the customized battery low warning. In this example we want the battery to send a warning at 10,8V. Key in Key in Key in 2 Key in 10 ...

  • Page 8: Service Code

    ON (the Service code can now be entered within 10 seconds). After entering the Service code the reader is in programming mode (the green LED lights). Each time a setting is made the C1000LP goes back to the previous point and the next setting can be made.

  • Page 9: Changing Service Code

    5.4 Changing the Service code The Service code is used to configure the C1000LP’s settings. To change the Service code, enter the following within 10 seconds after power on: Key in the Key in Key in new code Repeat new code Service code ○ ● ○ ● ● ○ ○ ○ ● ○ 5.5 LED indications The C1000LP’s 3 LED’s can be adjusted at will. To adjust the LED indications enter the following: adjust the LED’s for standby indication (normal). adjust the LED’s for correct code indication (active).

  • Page 10: Outputs

    5.6 Outputs The C1000LP has 2 outputs that can be set to H-Bridge output or open collector out- put. By default is the C1000LP set to H-Bridge output with Lock delay in 5 seconds. To configure the output settings use the following steps: Key in the Key in Service code ○ ● ○ ○ ● ● sets the output 1 time in Pulse mode or Lock delay...

  • Page 11: Special Settings

    5.7 Special settings These settings is used to change the C1000LP’s special functions such as turning the buzzer on/off etc. To change these settings, key in: ● ○ ○ = Service code without timeout ( = inactive / = active) ● ● = Master code be changed by Master code ( = inactive / = active) ●...

  • Page 12: Blocking (Duress)

    6. Blocking The C1000LP is blocked for 1 minute after 4 incorrect codes. LED indication: ○ ○ 7. Manual reset The C1000LP can be reset to factoty default manually. • Turn the voltage off. • Connect the yellow and brown wire. • Turn the voltage on (2 - 16 V DC) the readers LED’s lights and the buzzer sounds. • Turn the voltage off and disconnect the yellow and brown wire. The C1000LP is now reset to factory default and the user codes are deleted. 8. Technical specifications Voltage range: 2 - 16V DC Mifare reading: Max. 50 mm Output: 2x open collector, max. 500mA...

  • Page 13: One-Time/Day Code

    9. One-time-/day code The C1000LP offers 2 advanced functions of codes that can be used once only and a code that is valid for a single day. First the codes have to be generated using the ConlanCode Generator (download available from www.conlan.eu or on itunes and Google Play). Enter a seed number into the first box. This can be any number from 1 to 9999999. Then enter the numbers of digits you require the code to have (best to avoid 4 or 8 digits codes so there is no chance of conflict with Service code or Master code. The system defaults to a 6 digit code.
