Page 1: User Manual

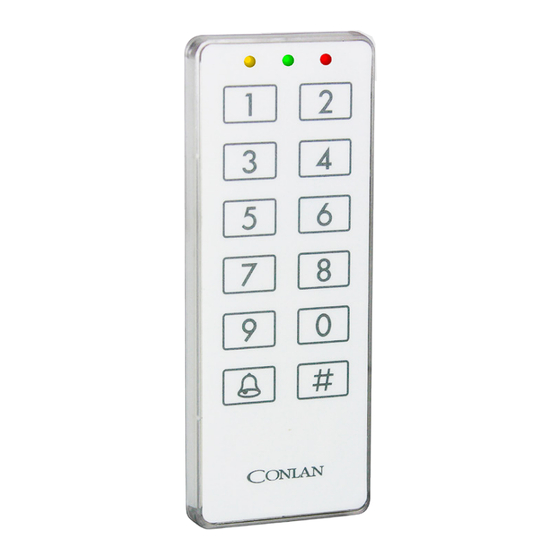

Keypad CT1000 Art. No.: 460100 (black) Art. No.: 460106 (white) User Manual CT1000_usermanual_ENGmay15 Conlan ApS • Speditorvej 2A • DK-9000 Aalborg • Tel: +45 72 40 60 03 • Fax: +45 96 32 00 22 www.conlan.eu • info@conlan.eu... -
Page 2: Table Of Contents
Table of Content Introduction page 3 Installation page 3 Programming Users page 4 3.1 Positions page 4 3.2 Programming the User Codes page 4 4. Advanced Configurations page 5 4.1 Service code page 5 4.2 Configuration Overview page 5 4.3 Changing the Master code page 6 4.4 Changing the Service code page 6... -
Page 3: Introduction
CT1000 has a buzzer for indicating while keying, correct code, incorrect etc. and 2 transistor outputs with open collector for controlling of locks etc. CT1000 is a stand alone unit, that can be programmed directly by Master Code and Service Code. -
Page 4: Programming Users
3. Programming Users 3.1 Positions CT1000 has 28 positions, which can contain a code from 1 to 8 digits. The code in position 1 is 1234 (default) 3.2 Programming the User Codes The Master Code is used to program/change/delete the users. By deafualt the Master Code is 4711. LED indication: No light: ○... -
Page 5: Service Code
4. Advanced settings 4.1 Service Code The Service Code is used for CT1000’s advanced settings such as changing the Master Code and Service Code, LED indication and much more. The overview of the settings and the facto- ry settings can be seen in 4.2 Configuration Overview. -
Page 6: Changing The Service Code
# again or wait 10 seconds. 4.6 Output Time CT1000 has 2 transistor outputs (yellow (04) and white (03) wire), which both are activivated in 5 seconds (factory default) by correct code, the activation time can be changed. The values are divided like this: 1 - 100 in seconds (e.g. 5 = 5 seconds, 101 - 199 in minutes (e.g. -
Page 7: Function Settings
4.7 Function Settings These settings is used to change CT1000’s function e.g. to use the Service Code without pow- er down and up, mute the buzzer etc. The overview below shows the values for the different functions. Buzzer Toggle mode for 8 digits codes Service Code with power on/off Output (yellow wire) inverted Hold function Lock L2H... -
Page 8: Blocking (Duress)
Indication: ○ ○ 6. Manuel Reset CT1000 can be reset to default settings manually. Turn off the voltage, connect the yellow and brown wire, turn the power on again and the readers LED’s light and the buzzer sounds. When only the yellow LED is lit and the reader is silent, turn off the power and separate the yellow and brown wire. The CT1000 is now reset to default and the user codes are deleted. 7. Technical Specifications Voltage: 12 VDC, 30 mA Voltage interval: 9 - 25 VDC Output (yellow core): Max. 500 mA...
