4.7.2

Wiring and Terminal Connections

NOTES:

1. Cable shield must be grounded at one end only, at the Control Panel. Coil and tape cable shield

at the Detector end.

2. Set SW3 (rotary switch) to position one (1) for Source current wiring.

3. Set SW3 (rotary switch) to position zero (0) for Sink current wiring.

Honeywell

Installation Guide and Operating Manual // Model FS20X™ Series

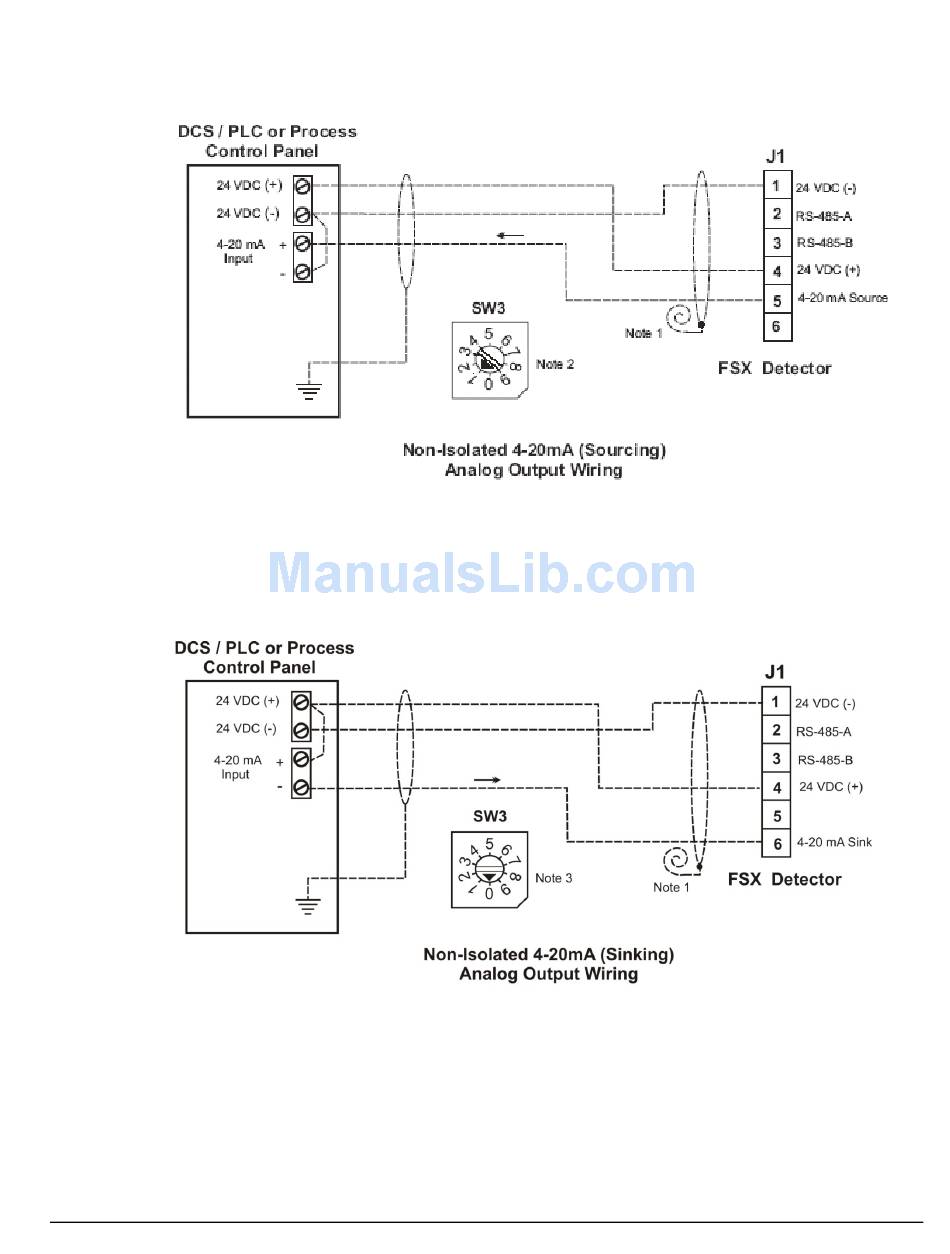

Figure 4-5

Typical Wiring for 4-20mA (Sourcing) Analog Output

Figure 4-6

Typical Wiring for 4-20mA (Sinking) Analog Output
