Summary of Contents for Inline IN2080

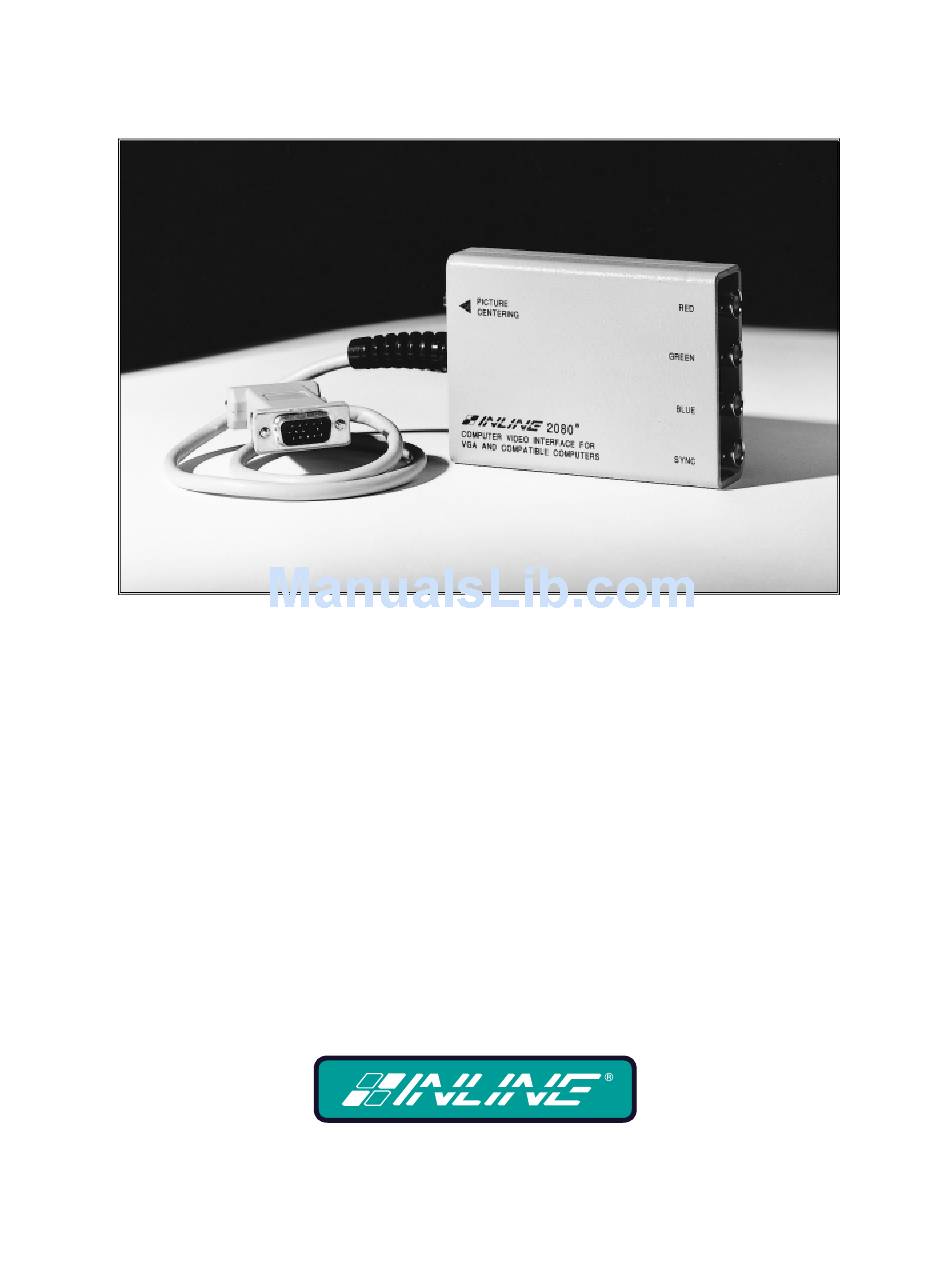

- Page 1 Operation Manual Dedicated Video Interface Series IN2080 VGA / SVGA / XGA Interface IN2081 MAC II Interface IN2090 CGA / EGA Interface...
- Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
-
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... -
Page 5: Input Compatibility
VGA, SVGA, XGA, and 8514A. Input signals to the IN2080 must in the RGBHV format and provided on a 15 pin HD connector. The IN2080 may be used with a monochrome local monitor if an IN9030 monochrome monitor adapter is used. -
Page 6: Installation
1. Turn the computer and computer monitor off. Disconnect the computer monitor (if present) from the video output port on the computer. 2. Connect the male side of the IN2080/81/90 input connector to the computer’s video output port. 3. Connect the local computer monitor (if present) to the female side of the pass-through connector. If... - Page 7 Application Diagram IN2080 / IN2081 Local Monitor Data Projector / Monitor RGBS Input IN2080 / 2081 Computer CPU PICTURE CENTERING GREEN IN7000-4 / IN7200-4 / BLUE IN7300-4 20XX ® RGBS Cable SYNC COMPUTER VIDEO INTERFACE Power Supply 9V / 500 mA...
-
Page 8: Internal Controls
These controls are infrequently used and do not require adjustment for normal daily operation. (The IN2080 contains no internal controls). CAUTION: Any adjustment of internal controls must only be carried out by qualified technicians. - Page 9 Horizontal Position Control is not causing any image problems. The Horizontal Blanking Control is adjacent to the Blue Enhancement Control (see diagram below). Adjust as needed to attain the best image quality. ©1994-1997 - INLINE, INC. IN2080 / 2081 / 2090 OPERATION MANUAL - REV. 2.1 02/19/00...
-
Page 10: Specifications
9V 500 mA ACCESSORIES INCLUDED IN2080 IN9031 VGA Termination Plug, 9V 500 mA Power Supply (US domestic units only), Manual IN2081 IN9056 MAC Termination Plug, 9V 500 mA Power Supply (US domestic units only), Manual IN2090 9V 500 mA Power Supply (US domestic units only), Operations Manual... -
Page 11: Troubleshooting
Output image is ghosting. Solution: The IN2080/81/90 are designed to plug directly into the computer’s graphic card and a short (6 to 12 ft) monitor cable attached to the loop through output. An extension cable for the input or a very long monitor cable may cause this problem. -
Page 12: Warranty
The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
