- Page 1 Operation Manual Universal Video Interface Series IN2000 Analog / TTL / ECL Video Interface IN2001 Analog / TTL / ECL Video Interface ®...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description / Features ...1 IN2000 / IN2001 Differences ...2 Input Compatibility ...2 Output Compatibility...3 IN5100 Series Monitor Loop Cables ...3 Installation ...4 Application Diagram...5 Horizontal Position Control ...6 RGB Gain Controls...6 Blue Enhancement Control ...6 Control Location Diagrams...7 Internal Controls ...8 Horizontal Blanking Control...9 Dip Switch Settings ...9... -
Page 3: Description / Features

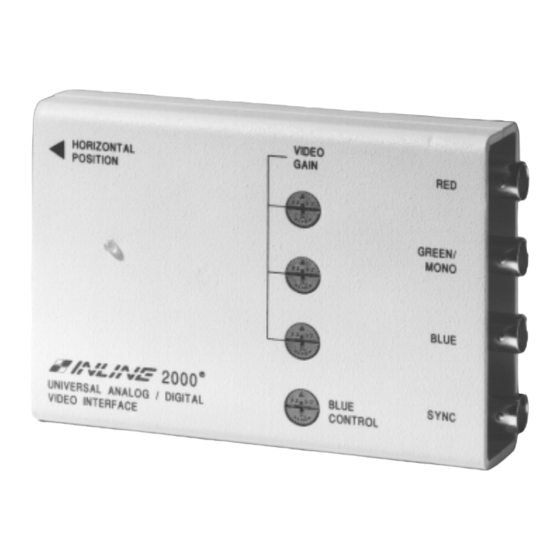

DESCRIPTION The IN2000 and IN2001 are universal computer video interfaces designed to work with Analog, TTL, and ECL computer video signals. Like other INLINE interfaces, the IN2000 / IN2001 carry out three primary functions: Signal Splitting - these interfaces allow for the simultaneous connection and viewing of both the computer’s local monitor and a second output device such as a large screen data projector, monitor, or color printer. -
Page 4: In2000 / In2001 Differences
IN2000 AND IN2001 DIFFERENCES These two interfaces are virtually identical in function, features, and operation with only a few minor differences as detailed in the chart below: Power Supply: External Power Adapter Size: 1.1" H x 4.8" W x 3.27" D Adjustment Pots: Top mounted, hand adjustable Dip Switches:... -
Page 5: Output Compatibility
While the input connector on the IN2000/2001 looks like a standard 15 pin HD VGA connector (15 pins in three rows), this input uses proprietary pin connections to accommodate the unit’s universal design. attached directly to the input without the appropriate IN5100 Series loop cable. OUTPUT COMPATIBILITY The IN2000 / IN2001 output an analog video signal in the RGBS format (Red, Green, Blue, and composite sync) on four BNC connectors. -
Page 6: Installation
INSTALLATION This section offers step-by-step instructions for installing the IN2000 / IN2001. A detailed application drawing showing all equipment connections is included on the next page. 1. Turn the computer and computer monitor off. Disconnect the computer monitor (if present) from the video output port on the computer. -
Page 7: Application Diagram
Application Diagram IN2000 / IN2001 Local Monitor Computer CPU IN5100 Series Monitor Loop Cable Data Projector / Monitor RGBS Input IN2000 / IN2001 VIDEO HORIZONTAL GAIN POSITION GREEN/ MONO BLUE ® 2000 SYNC BLUE UNIVERSAL ANALOG / DIGITAL CONTROL VIDEO INTERFACE Power Supply 12V / 500 mA IN7000-4 / IN7100-4... -
Page 8: Horizontal Position Control
HORIZONTAL POSITION CONTROL The location of the horizontal position control is diagrammed on the next page. The horizontal position control adjusts the position of the image on the data display device from left to right (it has no effect on the local computer monitor). -
Page 9: Control Location Diagrams
IN2000 Top View Horizontal Position Control Red Gain Green Gain Blue Gain 2000 Blue Enhancement Control Horizontal Position Control IN2001 Top View Blue Enhancement Control Blue Green Gain Gain Gain... -
Page 10: Internal Controls
INTERNAL CONTROLS The IN2000 and IN2001 have been designed with several controls which may be used by qualified technicians to adjust specialized signal parameters. These controls, consisting of 10 dip switches and one adjustment pot, are infrequently used and do not require adjustment for normal daily operation. For convenience, the IN2001 has been designed with two access slots in the bottom of the unit so the case does not need to be opened to change the dip switches and adjustment pot. -
Page 11: Horizontal Blanking Control
Horizontal Blanking Control (TTL Only) The Horizontal Blanking Control functions only with TTL digital input signals. This control (location shown on Page 8) will not need to be adjusted on a regular basis. The following image symptoms may indicate that the control is misadjusted: missing background colors, horizontal dark bars across the screen, or missing foreground colors. -
Page 12: Disable / Enable Horizontal Position Control
Disable Horizontal Position Control Turning Dip Switch #6 to ON disables the Horizontal Position Control. This setting should only be used with Composite Sync or Sync on Green input signals. If Switch #6 is set to ON when using input signals with separate Horizontal and Vertical syncs, the unit will not output any sync signal, causing the video projector or data monitor attached to the IN2000 / IN2001 output to loose sync and stop displaying an image. -
Page 13: In5100 Series Cables - Partial Listing
IN5100 SERIES MONITOR LOOP CABLES - PARTIAL LISTING Computer / Graphics Card IBM PC AND COMPATIBLES VGA / S-VGA / XGA / XGAII CGA / EGA MDA / Hercules APPLE MACII / Quadra MAC / MAC+ MAC SE Apple IIE COMMODORE Amiga 500 / 1000 / 2000 / 3000 / 4000 WORKSTATIONS &... -
Page 14: Interfacing To Computers With Bnc Outputs
INTERFACING TO COMPUTERS WITH BNC OUTPUTS The IN5129A, IN5132A, and IN5133A are special input cables designed for use with workstations and terminals which have BNC video outputs. The chart below describes the input signal compatibility for each of these cables: Cable / Description IN5129A 4 - BNCs IN5132A 1 - BNC... -
Page 15: Specifications
SPECIFICATIONS Input Connector type RGB Video Signals Input Impedance Maximum Input Voltage Sync Signals Input Impedance Maximum Input Voltage Horizontal Scan Range Vertical Scan Range Output Connector Type Output Signal Formats RGB Signals Bandwidth Rise and Fall Times Gain Sync Signal Horizontal Pulse Width Vertical Pulse Width Controls... -
Page 16: Included Accessories / Optional Accessories
Parts and Accessories Included Optional Accessories IN5100 Series Input Cables IN7000 Series RGBS Cable IN7100 Series RGBS Cable IN7600 Series RGBS Cable The RGBS cables above are available in longer lengths by custom order and may also be purchased in bulk quantities along with BNC connectors and crimp tools. - Page 17 The output image is very bright and overdriven looking with poor contrast. Solution 1: The loop through cable is probably being used without a local monitor and the signal is therefore unterminated. Use either a local monitor or a termination plug at the monitor loop- through connector on the IN5100 Series cable.
-
Page 18: Warranty
WARRANTY INLINE warrants the equipment it manufactures to be free from defects in materials and workmanship. If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
