FMS YAK-130 Operating Manual

70mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

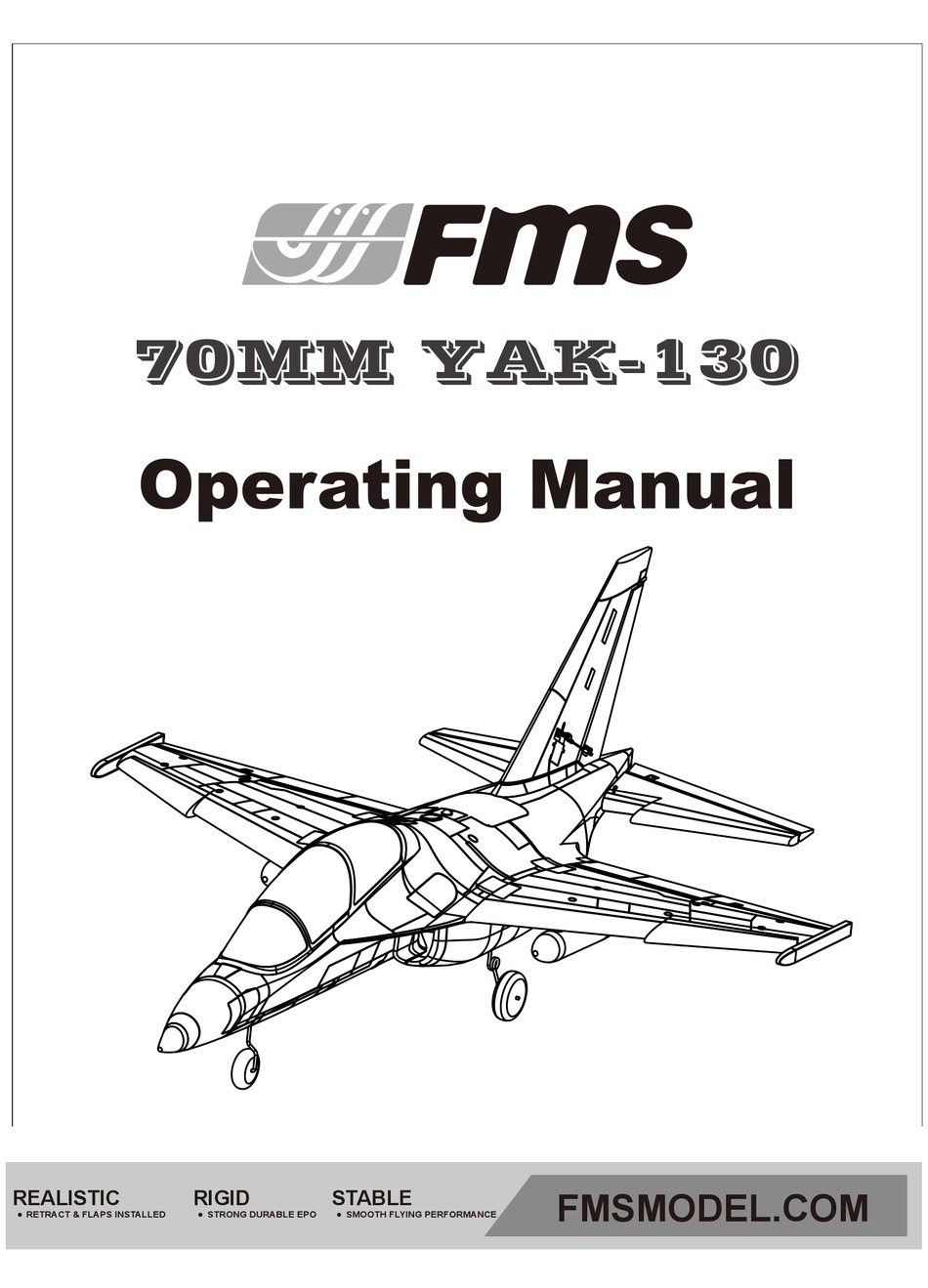

70MM YAK-130
FMSMODEL.COM
REALISTIC
RIGID
STABLE
RETRACT & FLAPS INSTALLED
STRONG DURABLE EPO
SMOOTH FLYING PERFORMANCE

Advertisement

Table of Contents
loading

Related Manuals for FMS YAK-130

Summary of Contents for FMS YAK-130

  • Page 1 70MM YAK-130 FMSMODEL.COM REALISTIC RIGID STABLE RETRACT & FLAPS INSTALLED STRONG DURABLE EPO SMOOTH FLYING PERFORMANCE...

  • Page 3: Table Of Contents

    Utilizing many of the new concepts from our propeller planes, FMS is embarking on upgrading and adding new and exciting Electric Ducted Fans to our lineup of planes. The first is our NEW Yak130 featuring our new and improved 70mm fan unit. The craftsmanship that has gone into this model began with the initial concept prototype and as refinements were determined and implemented brings to you the most accurately defined Yak on the current market.

  • Page 4: Contents Of Kit

    Wingspan: 880mm (34.6in) Overall Length: 1060mm (41.7in) Flying Weight: Around 1850g (65.3oz) Motor Size: Brushless 2860-KV1850 Wing Load: 100 g/dm² (0.23oz/in²) Wing Area: 19 dm² (294.5 sq.in) ESC: 70A Servo: 9g Servo x 8 Contents of Kit Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit and labels.

  • Page 5: Assemble The Plane

    Vertical Stabilizer Installation 1.Remove the top layer of the double sided tape on the rear of the fuselage as picture shows (fig1). 2.Connect the rudder servo connectors to the servo extensions in the fuselage (fig2). 3.Carefully slide the vertical tail assembly into the slot in the fuselage. CAUTION: DO Not crush or damage the wiring when attaching the vertical tail assembly.
  • Page 6 Horizontal Tail Installation Slide the horizontal tail in the rear of the fuselage. Ensure the control horn faces up as picture shows (fig3). Secure the horizontal tail pieces in the place using the included two screws. Use caution to avoid over-tightening the screw (fig4).
  • Page 7 Wing Installation Connect the Aileron servo connectors to the servo extensions in the fuselage. Slide the tube into the fuselage then install both wings over the wing tube and into the wing slow of the fuselage (fig5). Secure the left and right wings into the fuselage using the included 4 screws (fig7). fig5 FLAP FLAP...
  • Page 8 Drop Tank Slide the optional drop tanks into the rails on each wing. Check the Center of Gravity with the drop tanks installed. fig8 Nose cone Install the nose cone on the fuselage. fig9...

  • Page 9: Battery And Radio Installation

    Battery and radio installation fig10 fig11 fig17...

  • Page 10: Get Your Model Ready To Fly

    Get your model ready to fly Important ESC and model information The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position.

  • Page 11: Check The Control Throws

    Check the control throws The suggested control throw setting for FMS MODEL are as follows (dual rate setting): Tips: On first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium...

  • Page 13: Center Of Gravity

    Check the C.G. (Center of Gravity) When balancing your model, adjust the motor battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference.

  • Page 14: Before Flying The Model

    Before flying the model Find a suitable flying site Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best.

  • Page 15: Flying Your Model

    While applying power, slowly steer to keep the model straight. The model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. YAK-130 will climb out at a nice angle of attack (AOA).

  • Page 16: Troubleshooting

    Troubleshooting...

  • Page 17: Spare Parts List Content

    Spare parts list content YAK-130 RED FMSPS101RED Fuselage FMSPS102RED Main Wing Set FMSPS103RED Vertical Stabilizer FMSPS104RED Horizontal Stabilizer FMSPS105RED Cockpit FMSPS106RED Cowl FMSPS107 Linkage Rod Screw Set FMSPS108 Landing Gear Set FMSPS109 FMSPS110 Main Landing Gear System FMSPS111 Front Landing Gear System...

  • Page 18: Esc Instruction

    ESC instruction...
