FMS 70 MM A-10 THUNDERBOLT II Operating Manual

Hide thumbs

Advertisement

Table of Contents

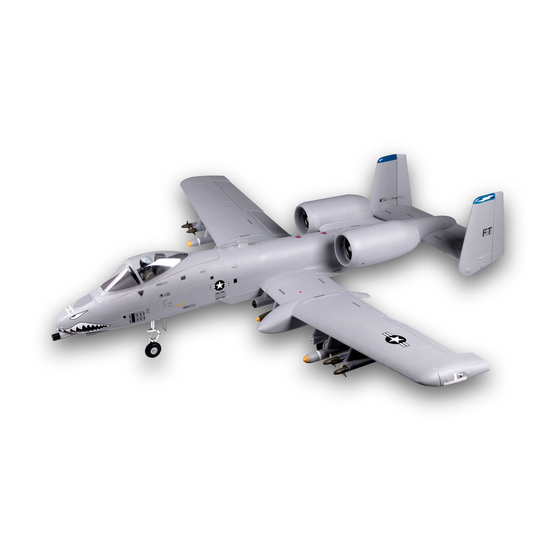

70MM A-10
Thunderbolt II
FMSMODEL.COM
REALISTIC
RIGID
STABLE
RETRACT & FLAPS INSTALLED
STRONG DURABLE EPO
SMOOTH FLYING PERFORMANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70 MM A-10 THUNDERBOLT II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FMS 70 MM A-10 THUNDERBOLT II

Summary of Contents for FMS 70 MM A-10 THUNDERBOLT II

  • Page 1 70MM A-10 Thunderbolt II FMSMODEL.COM REALISTIC RIGID STABLE RETRACT & FLAPS INSTALLED STRONG DURABLE EPO SMOOTH FLYING PERFORMANCE...
  • Page 3 WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product,personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so could result in injury or damage to the product or other property.

  • Page 4: Table Of Contents

    Thunderbolt, a World War II fighter that was effective at attacking ground targets. FMS is proud to bring to you this new and highly detailed Twin ducted fan version of the A-10. Incorporating many of the new and advanced construction and assembly features such as the optimized screw based assembly, ball links and a heavy duty wing spar and latest multi-connect technology.

  • Page 5: Contents Of Kit

    Wingspan: 1500mm (59.1in) Overall Length: 1368mm (53.9in) Flying Weight: Around 4100g (144.6oz) Motor Size: Brushless 2860-KV1850*2 Wing Load: 113.2 g/dm² (0.26oz/in²) Wing Area: 36.2 dm² (561 sq.in) ESC: 70A*2 Servo: 9g metal digital * 5 17g metal digital * 4 Recommended Battery: 22.2V 5000mAh 45C Li-Po Contents of Kit Before assembly, please inspect the contents of the kit.

  • Page 6: Model Assembly

    Model Assembly Canopy Hatch Installation 1. Install the canopy hatch as shown (fig1). fig1...
  • Page 7 Model Assembly Main Wing Installation 1.Slide the wing tube into the fuselage (fig2). 2. Install the left and right wing over the wing tube and into the wing slot of the fuselage. Notice: The connectors on both sides should be attached precisely and firmly. fig2 3.
  • Page 8 Model Assembly Horizontal and Vertical Stabilizer Installation 1. Connect the rudder servo connectors to the servo extensions in the elevator . 2. Carefully slide the two vertical tail pieces (left and right) into the slots of horizontal tail as shown (fig4). 3.
  • Page 9 Model Assembly Missile Set, Ventral Fins, and Airspeed tube Installation 1. Screw the air speed tube in place (fig8). 2. Slide ventral fins into the rails (fig9). fig8 fig9 3. Slide the missiles into the rails. Note: to fit different anhedrals, separate right and left missiles are required. Please install the missiles as shown.

  • Page 10: Battery And Radio Installation

    Battery and radio installation 1. Apply the hook strap to your battery as shown. 2. Carefully lift the canopy hatch to remove. 3. Install the full charged battery in the battery compartment with the power supply cable toward the rear end of the plane.

  • Page 11: Get Your Model Ready To Fly

    Get your model ready to fly Important ESC and model information The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position.

  • Page 12: Check The Control Throws

    Check the control throws The suggested control throw setting for FMS MODEL are as follows (dual rate setting): Tips: On first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium...

  • Page 13: Control Horn And Servo Arm Settings

    Control Horn and Servo Arm Settings The table shows the factory settings for the control horns and servo arms. Fly the aircraft at the factory settings before making changes. After flying, you may choose to adjust the linkage positions for the desired control response. See the table to the below More control throw Horns...

  • Page 14: Center Of Gravity

    Check the C.G. (Center of Gravity) When balancing your model, adjust the motor battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference.

  • Page 15: Before Flying The Model

    Before flying the model Find a suitable flying site Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best.

  • Page 16: Flying Course

    Flying Course Take off While applying power, slowly steer to keep the model straight. The model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. It will climb out at a nice angle of attack (AOA).

  • Page 17: Troubleshooting

    Troubleshooting...

  • Page 18: Spare Parts List Content

    Spare parts list content FMSPV101 Fuselage FMSPV102 Main Wing Set FMSPV103 Vertical Stabilizer FMSPV104 Horizontal Stabilizer FMSPV105 Cockpit FMSPV106 Bomb and Missile Set FMSPV107 Twin Engine Compartment FMSPV108 Foam part (Laser racker) FMSPV109 Foam part (fin) FMSPV110 Scale Plastic Parts Set FMSPV111 Control Horns FMSPV112...

  • Page 19: Esc Instruction

    ESC instruction...
