1800mm Ranger
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
操作手册
FMSMODEL.COM
SIMPLE
FLOATS
RIGID
Simple assembly
Optional floats
Strong durable EPO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1800mm Ranger and is the answer not in the manual?

Questions and answers

Related Manuals for FMS 1800mm Ranger

Summary of Contents for FMS 1800mm Ranger

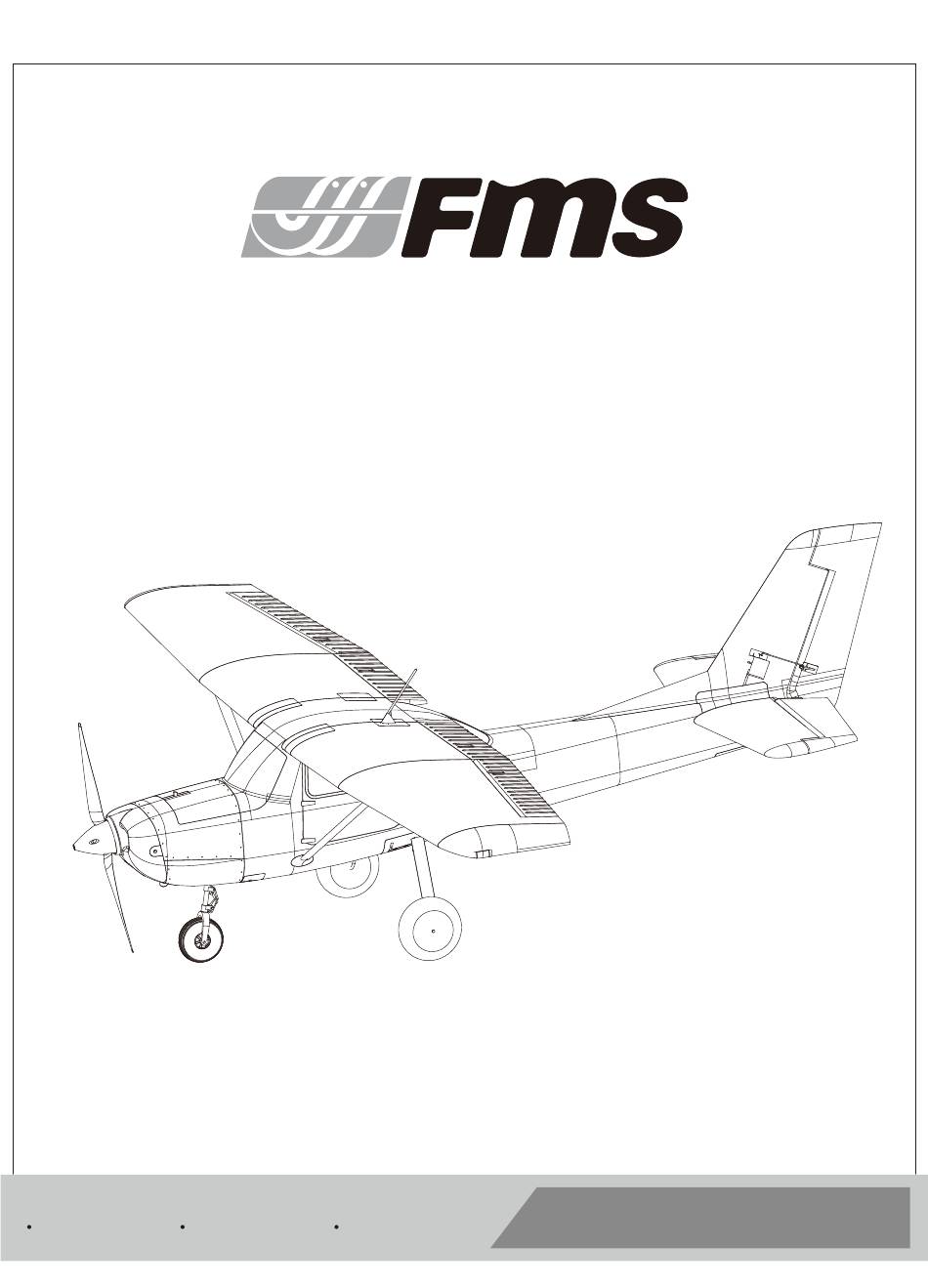

  • Page 1 1800mm Ranger Instruction Manual Bedienungsanleitung Manuel d’utilisation 操作手册 FMSMODEL.COM SIMPLE FLOATS RIGID Simple assembly Optional floats Strong durable EPO...
  • Page 2 WARNING WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product,personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so could result in injury or damage to the product or other property.

  • Page 3: Table Of Contents

    So what could be better than the 1200mm Ranger? Well, a strobes 50% larger 1800mm Ranger, of course! • Screw-together assembly While quite a bit bigger, the 1800mm Ranger is still true to its • Optional floats roots- take off within 10ft and cruise at 1/3 throttle with the •...

  • Page 4: Model Assembly

    Model assembly Nose landing gear installation 1. Install the nose-landing gear into the KM3.0*6mm plastic slot on the aircraft as shown. Use the included screw to secure the control horn. Main landing gear installation 1. With the airframe included, install the landing gear and holder components into the slots on the fuselage as shown.
  • Page 5 Model assembly Installation of the horizontal and vertical stabilizers 1. Install the horizontal and vertical stabilizers onto the fuselage as shown. HKM3.0*40mm 2. Secure the tail surfaces to the fuselage with the include screws.
  • Page 6 Model assembly Main wing installation 1. Slide the wing halves onto the wing spar and into the wing slots. 2. Using the body pins, secure the struts to the fuselage. HKM3.0*16mm 3. With the fuselage inverted, secure the wing halves onto the airframe by using the included screws.
  • Page 7 Model assembly Antenna installation 1. The antenna is secured into its slot and lock it in place by sliding the component towards the tail of the aircraft. Pushrod installation 1. With the rudder servo in its neutral position, con- nect an included pushrod from the rudder servo to the rudder surface.
  • Page 8 Model assembly Propeller installation 1. Install the propeller assembly as shown. HKM3.0*10mm Float assembly 1. As shown in the image, connect both floats with the metal struts and secure the structure with the included screws. 2. Connect the floats to the fuselage and secure with the included screws and retainer.

  • Page 9: Battery Installation

    Battery installation 1. Pull back on the release tab and remove the battery hatch. 2. Apply hook tape to the cable end of the battery. 3. Make sure the battery is secured using hook tape. Note: batteries from different manufacturers will vary in weight and size, it is therefore important to check the center of gravity of the aircraft before every flight.
  • Page 10 Transmitter and model setup Before getting started, bind your receiver with your transmitter. Bank left Please refer to your transmitter manual for proper operation. CAUTION: To prevent personal injury, DO NOT install the propel- ler assembly onto the motor shaft while testing the control surfac- es.

  • Page 11: Clevis Installation

    Clevis installation 1.Pull the tube from the clevis to the linkage. 2.Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn. 3.Move the tube to hold the clevis on the control horn. Control horn and servo arm settings More control throw Horns Arms...

  • Page 12: Before Flying The Model

    Before flying the model Flying course Find a suitable flying site Take off While applying power, slowly steer to keep the model straight. Find a flying site clear of buildings, trees, power lines and The model should accelerate quickly. As the model gains flight other obstructions.

  • Page 13: Troubleshooting

    Trouble shooting Problem Possible Cause Solution Aircraft will not respond to -Lower throttle stick and throttle trim to lowest settings. -ESC is not armed. the throttlebut responds to -Reverse throttle channel on transmitter. -Throttle channel is reversed. other controls. -Damaged spinner, propeller, -Replace damaged parts.
