- Page 1 INSTRUCTION MANUAL T119 1MN0110 REV. 0 operates with ISO9001 certified quality system TECSYSTEM S.r.l. 20094 Corsico (MI) Tel.: +39-024581861 Fax: +39-0248600783 http://www.tecsystem.it R. 1.2 08/02/17 ENGLISH “Translations of the original instructions”...
-
Page 2: Table Of Contents
INTRODUCTION First of all we wish to thank you for choosing to use a TECSYSTEM product and recommend you read this instruction manual carefully: You will understand the use of the equipment and therefore be able to take advantage of all its functions. -
Page 3: Safety Requirements
POWER SUPPLY The T119 control unit has UNIVERSAL power supply, i.e. it can be supplied by 24 to 240 Vac-Vdc, irrespectively of polarity in Vdc. Before using it, make sure the power cable is not damaged, knotted or pinched. Do not tamper with the power cable. -
Page 4: Accessories
1 relay terminal 8 poles pitch 5 Code: 2PL0374 - Screws tightening torque 0.5Nm 1MN0030 REV. 0 ATTENTION: always install the device using the terminals included in the pack. The use of terminals other than those included with the control unit might cause malfunctions. T119... -
Page 5: Technical Specifications
T119 TECHNICAL SPECIFICATIONS POWER SUPPLY 24 -240Vac-dc Supply rated values 50/60HZ Maximum ratings 20-270 Vac-dc ● Vdc with reversible polarities ● INPUTS 3 series of PTC inputs ● 1 series for L1 (ALARM) ● 1 series for L2 (TRIP) ●... -
Page 6: Introduction
● INTRODUCTION The T119 is the most advanced unit on the market as regards temperature monitoring units for MV cast resin transformers which utilize PTC sensors. The unit gives the ALL1 pre-alarm and TRIP signals when the temperature limits detected by the PTCs in the windings are reached. -

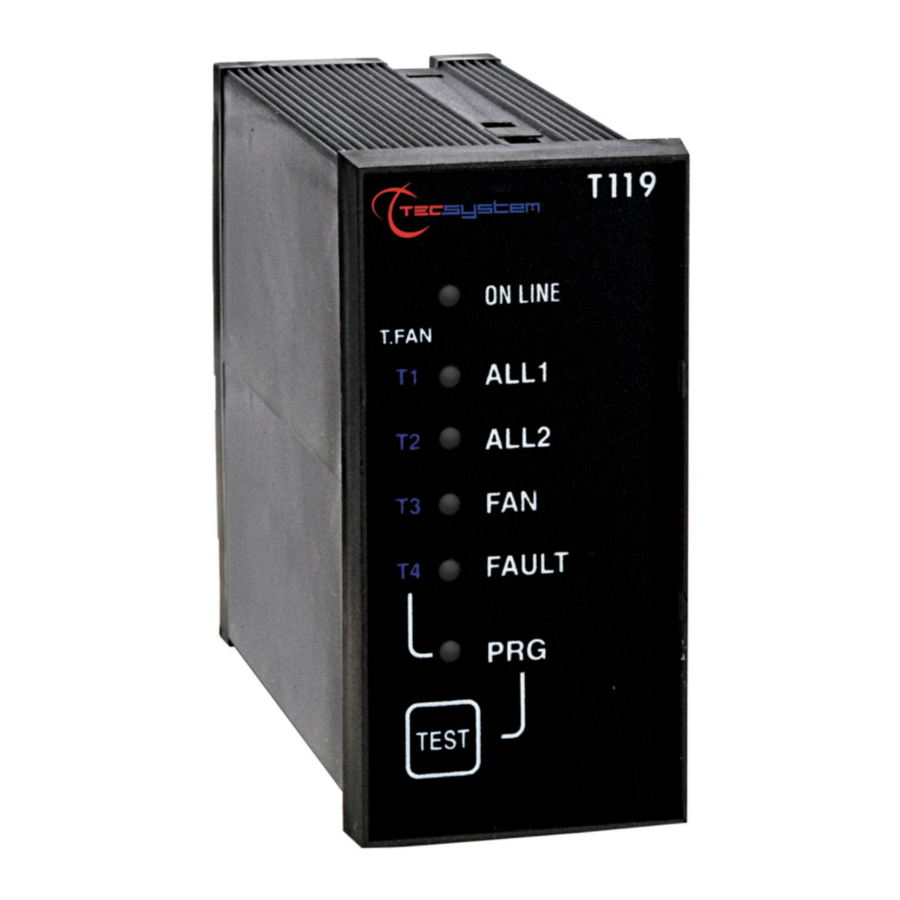

Page 7: Front
PRG (programming) LED (red) ALL2 (trip) LED (red) TEST button MOUNTING 1MN0111 REV. 0 Make a 92 x 44mm hole (tolerance +0.8mm) in the panel metal sheet. 1MN0064 REV. 0 Control unit Fixing screw Fixing block Crosshead screwdriver #1X100mm T119... -
Page 8: Power Supply
POWER SUPPLY The T119 control unit has UNIVERSAL power supply, i.e. it can be supplied by 24 to 240 Vac-Vdc, 50/60Hz irrespectively of polarity in Vdc (terminals 40-42). This is obtained thanks to the use of a tested power supply unit, newly designed and manufactured, that frees installers from worrying about the correct Vac and Vdc supply. -
Page 9: Alarm Relay Test
If the FAN is set up, the relay activates when the relative PTC sends the first signal and the FAN LED is steady ON: the relay is active for as long as the PTC senses the temperature is normal, the T119 unit keeps the relay ON for the time set during programming and the FAN LED flashes. -
Page 10: Sensor Diagnostic Device
FAN PTC the FAULT +FAN LED is flashing ATTENTION If the right model of PTC is not connected to the T119 control unit, the LEDs flash. The PTC temperature is nat + T = 1300 ohm. "PTC" TYPE TEMPERATURE SENSORS The PTCs can be compared to bimetallic thermostats where the contact opens and closes at the approximate temperature, defined as their operating characteristic (NAT=operating temperature). -
Page 11: Ptc Technical Specifications
The resistance value shown in table 1 refers to a single or multiple series of PTCs. The device operates correctly if the stated resistance values are complied with. If the PTCs, either single or multiple in series, have resistance values other than the stated, please notify TECSYSTEM Srl. FUNCTION RESISTANCE W HIGHER THAN 50 Ω... -
Page 12: Sensor / Relay Electrical Connections
SYSTEM ALARM / FAULT AUDIO AND VISUAL INDICATION 1MN0095 REV. 0 The L1/ FAULT relay operates normally when the unit is powered, therefore contact 5-7 is closed. The above picture shows the state of the relays in non-alarm condition. T119... -
Page 13: Warranty Conditions
Returning used electrical devices: contact TECSYSTEM or your TECSYSTEM agent for information on the correct disposal of the devices. TECSYSTEM is aware of the impact its products have on the environment and asks its customers active support in the correct and environmentally-friendly disposal of its devices.
