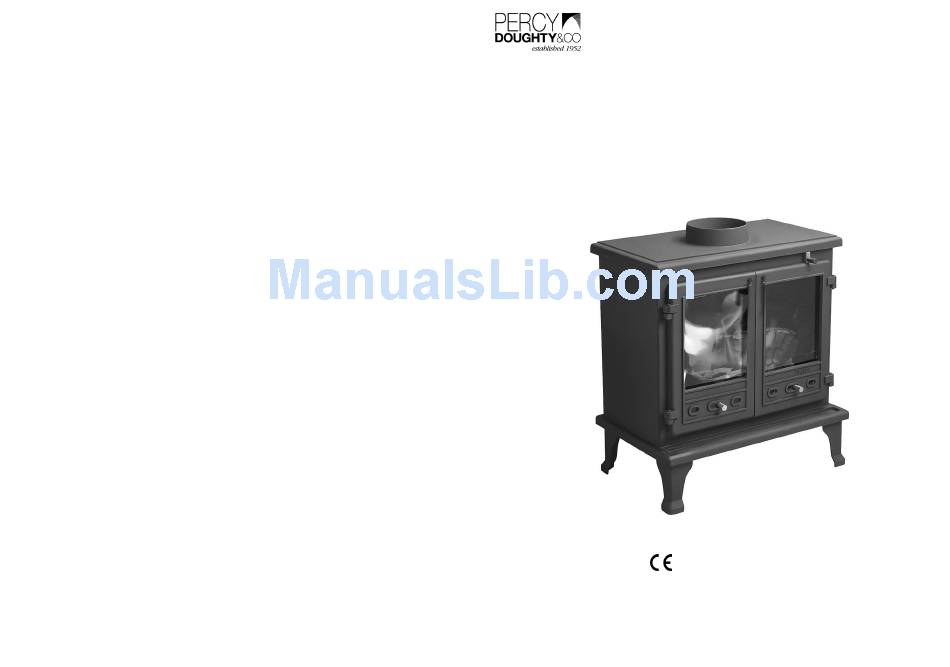

CAST IRON MULTI-FUEL STOVE
V 5.2
Conforms to EN13240:2001
Constructional Requirements
FIREFOX 12
INSTALLATION AND OPERATING INSTRUCTIONS
(to be left with the householder)
APPROVED
REV: D JAN/2013
The Firefox Stove operates at very high temperatures. All persons including children
and the infirm should be warned of this and not be allowed to touch any surfaces
whilst in use. The operator must use the tools provided. The mitten provided is a tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIREFOX 12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Percy Doughty & Co FIREFOX 12

  • Page 1 CAST IRON MULTI-FUEL STOVE V 5.2 Conforms to EN13240:2001 Constructional Requirements FIREFOX 12 INSTALLATION AND OPERATING INSTRUCTIONS (to be left with the householder) APPROVED REV: D JAN/2013 The Firefox Stove operates at very high temperatures. All persons including children and the infirm should be warned of this and not be allowed to touch any surfaces...
  • Page 2: Parts List

    Parts List Essential characteristic Performance Test fuel Beech Anthracite Fire Safety Pass Pass Emission of combustion products, related to 13% O CO: 0.23 vol% CO: 0.06 vol% Dust: 77 mg/m Dust: 14 mg/m Thermal output / Energy efficiency 13.8kW / 74.2% 10.5kW / 76.7% Fire safety Approved...
  • Page 3 Firefox 12 Parts List Dimensions FFX12003 Stove Top FFX12002 Stove Base FFX12004L Stove Door Left Hand FFX12004R Stove Door Right Hand FFX12003E Expanding Flange FFX12005 Grate Outer FFX12005B Grate Inner Bars (10 pcs) FFX12007F Stove Baffle Plate Frame FFX12007 Stove Baffle Plate...
  • Page 4: Installation Instructions

    Assembly Of Stove Typical Installation Into Infilled Masonary Fireplaces Remove legs, collar and blanking plate from stove and fit in desired position. The collar can be fitted top or rear. To make easier for handling on installation, remove baffle plate, side bricks, back brick and doors.
  • Page 5 Check the chimney is in good condition, dry, free from cracks and obstructions. The Typical Installation For Inglenook Fireplaces diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method. Inglenook fireplaces can have very large bore chimneys.
  • Page 6: Operating Instructions

    position. In all instances the stove should be positioned on a non-combustible hearth. Typical Rear Flue Installation with clean out door Allow an apron of at least 300mm at the front of the stove and 150mm on either side. The hearth on which the stove is to be placed should not be less than 125mm thick if the floor is made of combustible material, and care should be taken to level the stove and secure the hearth.
  • Page 7: Installation Diagrams

    Typical Top Flue Installation using steel closure plate incorporating The Firefox 12 is fitted with a tertiary (third) air system. Air is bled into the stove from the clean out door for chimney sweeping rear panel via an air duct over the rear brick. Its function is to ignite unburned gasses and assist clean burning.
  • Page 8 Notes On Solid Fuel Burning Always de-ash before refuelling and do not let the ash build up to the underside of the C) Poor quality fuel. grate bars. Solid fuel produces ash, which if allowed to build up will stifle the air flow Only burn dry seasoned timber, soft woods have a lower heat output then through the grate and eventually cause the fire to die.
  • Page 9: General Maintenance

    Safety Notes For Your Guidance General Maintenance FIRES CAN BE DANGEROUS –Always use a fire guard to BS6539 specification in the presence of children, the elderly or the infirm. Inform all persons the dangers of high Baffle Plate temperatures during operation of appliance including the stove pipe use This should be removed at least once a month to prevent any build up of soot or fly operating tools provided.
