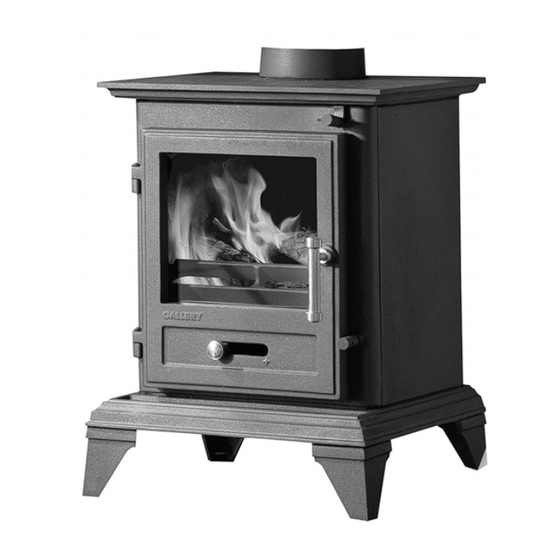

CAST IRON MULTI-FUEL STOVE
V 5.2
Conforms to EN13240:2001
Constructional Requirements
For Intermittent Use
REV: D JAN/2013
Not to be used in a shared flue
GALLERY CLASSIC 5
INSTALLATION AND OPERATING INSTRUCTIONS
APPROVED
This stove operates at very high temperatures. All persons including children and the
infirm should be warned of this and not be allowed to touch any surfaces whilst in use.
The operator must use the tools provided. The mitten provided is a tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALLERY CLASSIC 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Percy Doughty & Co GALLERY CLASSIC 5

Summary of Contents for Percy Doughty & Co GALLERY CLASSIC 5

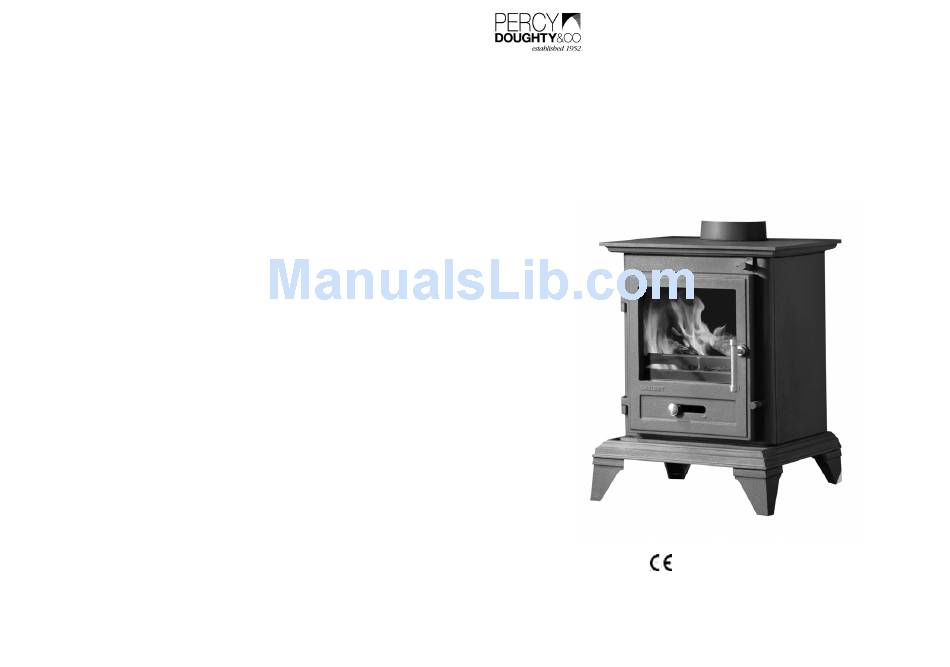

  • Page 1 Constructional Requirements For Intermittent Use REV: D JAN/2013 Not to be used in a shared flue GALLERY CLASSIC 5 INSTALLATION AND OPERATING INSTRUCTIONS APPROVED This stove operates at very high temperatures. All persons including children and the infirm should be warned of this and not be allowed to touch any surfaces whilst in use.
