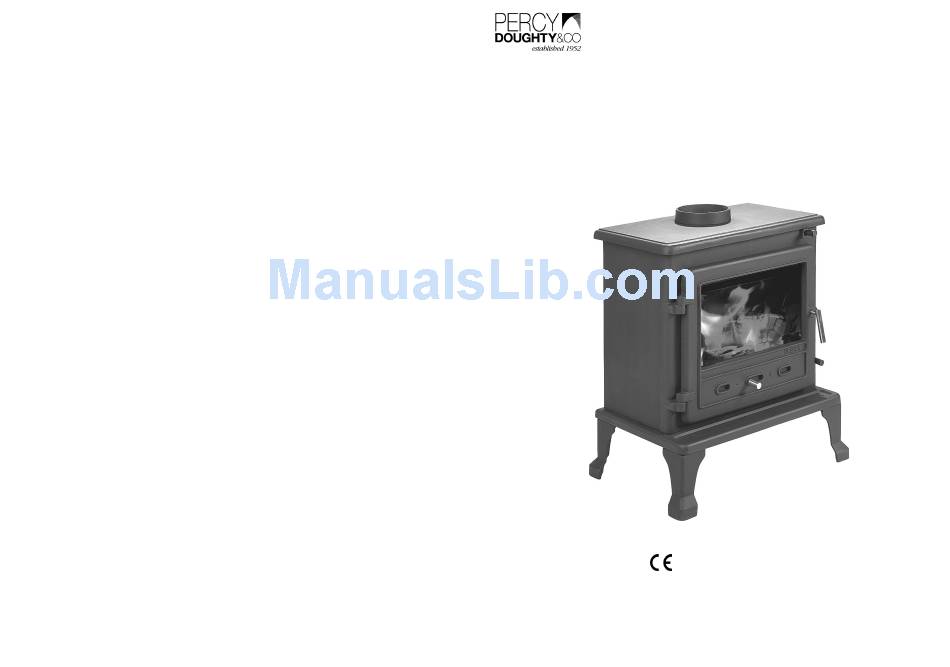

CAST IRON MULTI-FUEL STOVE
V 5.2
Conforms to EN13240:2001
Constructional Requirements
REV: E Jul/2015
For Intermittent Use
Not to be used in a shared flue
FIREFOX 8 CLEAN BURN
INSTALLATION AND OPERATING INSTRUCTIONS
(to be left with the householder)
APPROVED
This stove operates at very high temperatures. All persons including children and the
infirm should be warned of this and not be allowed to touch any surfaces whilst in use.
The operator must use the tools provided. The mitten provided is a tool.
Advertisement
Table of Contents
Related Manuals for Percy Doughty & Co FIREFOX 8
Summary of Contents for Percy Doughty & Co FIREFOX 8
- Page 1 Constructional Requirements REV: E Jul/2015 For Intermittent Use Not to be used in a shared flue FIREFOX 8 CLEAN BURN INSTALLATION AND OPERATING INSTRUCTIONS (to be left with the householder) APPROVED This stove operates at very high temperatures. All persons including children and the infirm should be warned of this and not be allowed to touch any surfaces whilst in use.
-
Page 2: Parts List
PARTS LIST Flue Gas Temp Flue Gas Flue Diam Ventilation Ventilation Reqt with at Spigot Mass Flow Reqt draught stabilizer 5.5 g/s (wood) 150mm 2145mm 4815mm 9.4 g/s (ancit) 6 inches 3.32in 7.46in As tested to the requirements of EN13240 for intermittent use. * See approved document J for detailed guidance, especially when installing in newer build properties. - Page 3 DIMENSIONS PARTS LIST Flue pipe requirement (minimum) diameter: 150mm (6 inch) nominal diameter FFX8008 Flue Collar FFX8009 Flue Blanking Plate 3,5,6 FFX8001 Stove Body (Rear,Right,Left Panel) FFX8003 Stove Top Panel FFX8002 Stove Base Panel FFX8007 Stove Baffle Plate FFX8012 Side Brick FFX8013 Back Brick FFX8010...
-
Page 4: Maintenance Instructions
ASSEMBLY OF STOVE Typical Installation Into Infilled Masonary Fireplaces Remove legs, collar and blanking plate from stove and fit in desired position. The collar can be fitted top or rear. When using the top flue the inverted half collar must be fitted to the underside of the flue opening, with the open half of the collar facing the rear of the stove. -
Page 5: Installation Instructions
Typical Installation For Inglenook Fireplaces INSTALLATION INSTRUCTIONS Inglenook fireplaces can have very large bore chimneys. Check with All installations must be undertook in accordance with British Standards: your installer—you may need a stainless steel flexible liner for solid fuel BS EN 15287-1:2007 - design, installation and commissioning of chimneys; BS 8303 - code of practice for installation of domestic heating and cooking appliances fitting. -
Page 6: Installation Diagrams
INSTALLATION DIAGRAMS Both chimney and flue pipe must be accessible for cleaning and if ALL parts of the chim- ney cannot be reached through the stove, a soot door must be fitted to enable this this Typical Top Flue Installation using steel closure plate incorporating to be done. - Page 7 CO ALARMS C) Poor quality fuel. Only burn dry seasoned timber, soft woods have a lower heat output then Building regulations require that whenever a new or replacement fixed solid fuel or wood/biomass appliance is installed in a dwelling a carbon monoxide alarm must be fitted in the same room as hard woods per hour.
-
Page 8: Troubleshooting
The Firefox 8 has two rotating grates joined by a connecting rod. These can be re- moved but one of the connecting rod screws will need to be unscrewed (M6 socket Recommended Fuels head). -
Page 9: Seasonal Maintenance
Solid Fuels The most common cause of fume emission is flueway or chimney blockage. For your We recommend the majority of approved manufactured smokeless fuels. Household own safety these must be kept clean at all times. coal, which is ‘Smokey’ fuel, can also be used but note that different types will give different performances.
