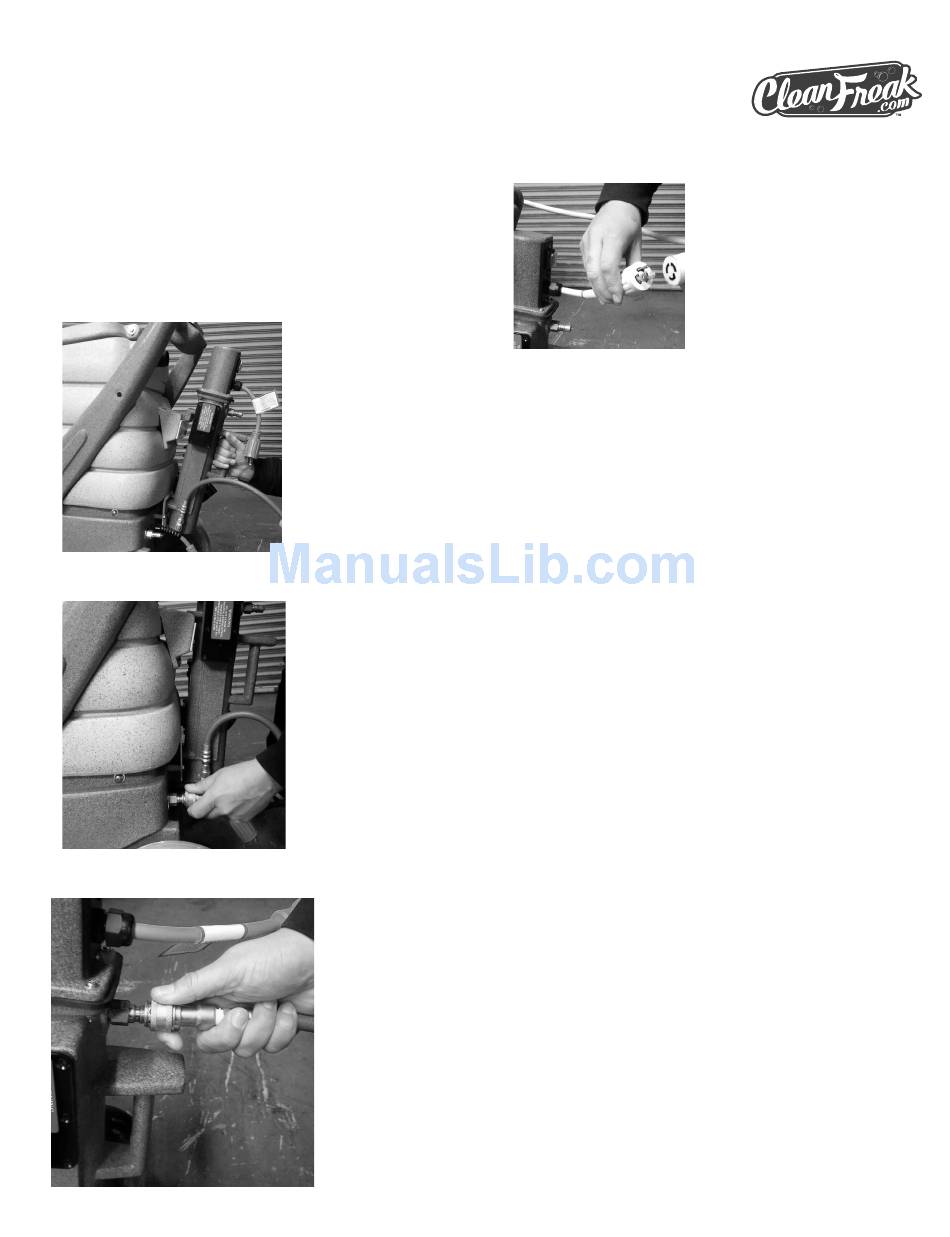

HOW TO USE AN ACCESSORY HEATER:

1. Fill the solution tank of your TPL-17-220-CE-HEAT-
TCP extractor with sufficient water or solution for
the task at hand. Do not use water over 130° F.
2. Mount the Heater by lining up the two mounting
legs (See #7 on page 7) to the two mounting brack-
ets on the rear of the machine (#10 on page 6).
3. Connect your heater's inlet hose (#1 on page 7) to
the machine's outlet quick disconnect (#7 on page 6).
4. Connect your 25ft solution hose to the heater's Q.D.
(#5 on page 7)
5. Connect your 50FT power cord to the twist
lock pigtail on the heater (#4 on page 7).
6. Connect the power cord(s) to the machine and an
approved 15 amp outlet. Each of the two cords must
be on a separate 15 amp circuit.
7. Connect your 25ft vacuum hose to the extractor's
vacuum inlet barb (#5 on page 6)
8. Connect your vacuum and solution line to a carpet
wand or upholstery attachment.
9. COMPLETE THIS STEP BEFORE TURNING
HEATER ON: Turn the pump switch to the "ON"
position using the pump switch on the handle of
your TPL-17-220-CE-HEAT-TCP. Pressing the
solution valve trigger of your attachment, spray water
for 10-15 seconds until you have a steady flow. This
ensures the heater is filled with fluid and will prevent
damage to the heater.
10. Turn heater on using the power switch (#2 on page
7) and allow up to 3 minutes for the unit to heat up.
11. The heater is ready for use once the green lamp (#3
on page 7) shuts off. Once you start cleaning, the
green lamp will turn on and off throughout your job
as the thermostats automatically regulate the tem-
perature.
8
