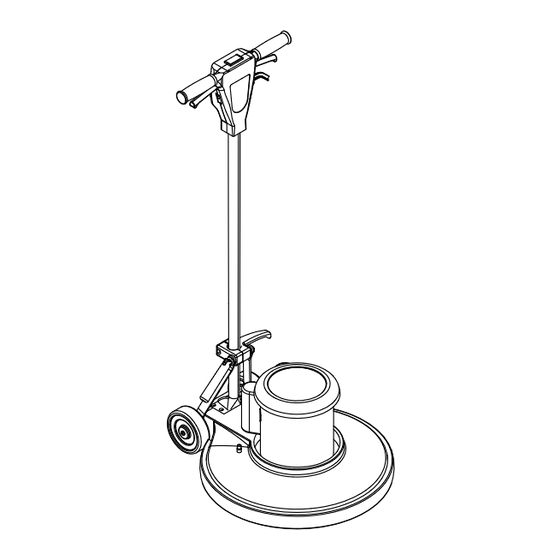

Summary of Contents for CleanFreak CPL17FB

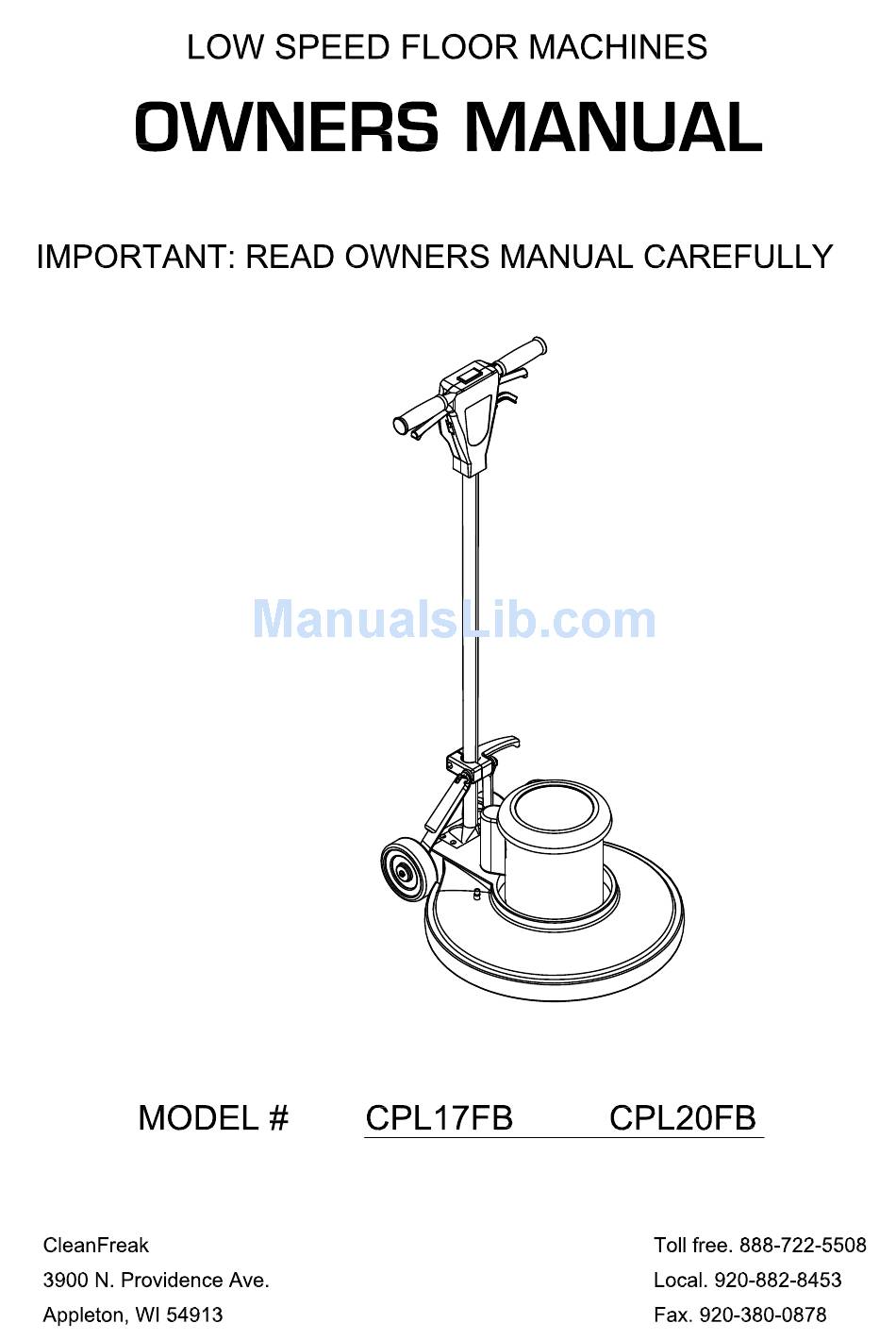

  • Page 1 VF41055CP rev.01(11-2010)
  • Page 2 TABLE OF CONTENTS Safety Precautions Machine Operation Machine Maintenance & Storage Handle Release Assembly Instructions Parts List Wiring Diagram...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS GROUNDING INSTRUCTIONS Unless trained and authorized. General –This floor – finishing machine shall be Unless you have read and understand grounded while in use to protect the operator operators manual. from electric shock. The machine is provided In flammable or explosive areas. with a three –conductor cord and a three contact With a damaged cord or plug.

  • Page 4: General Use

    Operation of Floor Machine * Read operators manual thoroughly prior to 10] To stop the machine at any time, simply operating or servicing this machine. release the operating trigger [s] and the machine will stop automatically. GENERAL USE MAINTENANCE 1] Remove any obstructions other obstacles in the area which is to be cleaned.
  • Page 5 1) Place cord wrap assembly (2 pieces) in place and snug them together with 6mm hex bolt. (Actual cord wrap faces to the left of the machine when you are standing behind it.) 2) Assemble hardware in the following order: spacer, left handle bracket, nylock nut.

  • Page 7: Handle Group

    VF48309 CLAMP BLOCK VF45119CP POWER SUPPLY CORD, BLACK AS22009 STRAIN RELIEF,CORD GT13009 SCREW,M5X30 GT13008 SCREW,M5X20 VF41194CP SERIAL TAG FOR CPL17FB VF41004CP SERIAL TAG FOR CPL20FB GV40218 SPRING,SAFETY BUTTON GV40209 SAFETY BOTTON AS312209 REAR COVER VF99010C BREAKER, CIRCUIT, 17A / A-0701HS...

  • Page 9: Base Assembly

    MOUNTING FRAME (BIG), CAPACITOR AS41902 PLUG PROTECTOR, LARGE FEMALE YCQ10414 CLEAR COVER YCQ10416 CAPACITOR WARP VF999805 START CAPACITOR (BIG), 400-450UF/150V YLQ17507 BOLT ASSEMBLY VF999792 MOTOR ASSEMBLY VF999787 MOTOR, 110V, 1.5HP VF44003 LABEL, MOTOR VF44001TP TOP COVER, MOTOR VF41281 LOGO, CLEANFREAK VF47023 BUMPER...
