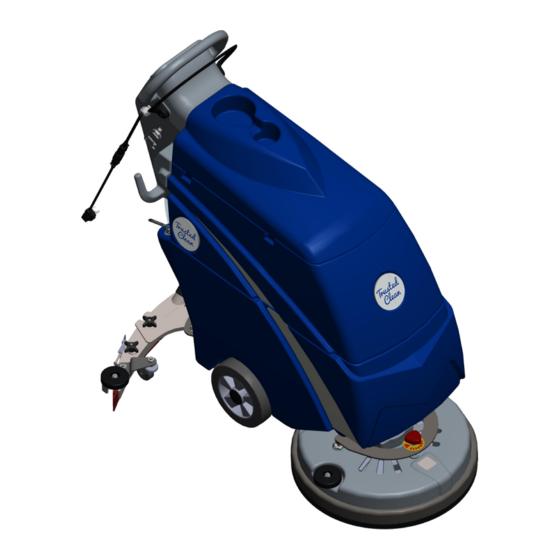

- Page 1 Operator & Parts Manual Electric Automatic Floor Scrubber Model: DURA-18HD CleanFreak customerservice@cleanfreak.com 8021050 www.cleanfreak.com REV.02(11-2018) 888-722-5508...
- Page 2 Serial No. Date Purchased HOW TO ORDER PARTS Only use CleanFreak supplied or equivalent parts. Parts and supplies may be ordered online, by phone, fax or mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
WEAR & TEAR PARTS LIST ....28 WIRING DIAGRAM ......29 DURA-18HD... -
Page 4: Safety Precautions
– Do not operate on inclines that exceed 2%(3°). 4. Before leaving or servicing machine: – Stop on level surface. – Turn off machine. 5. When servicing machine: – Read operator's manual thoroughly prior to operating or servicing this machine. – Use manufacturer supplied or approved DURA-18HD... - Page 5 Fl a m m a b l e m a t e r i a l s c a n c a u s e e x p l o s i o n o r f i r e . D o n o t u s e f l a m m a b l e materials in tanks or pick them up. DURA-18HD...
-
Page 6: Machine Components
14. Power cord hook 15. Brush/pad driving hub 16. Brush plunger 17. Plug of water filling port 18. Knob 19. Clear tube 20. Switch for brush motor 21. Switch for vacuum motor 23. Circuit breaker 24. Power cord 25. support wheel DURA-18HD... -
Page 7: Machine Setup & Installation
*Depending on the dirty level of the ground, add the proper amount of detergent into the solution tank. Do not put any flammable materials into solution tank. This can cause an explosion or a fire. Only use recommended cleaning chemicals. Contac t your janitorial supply distributor for recommendations on proper chemicals. DURA-18HD... -
Page 8: Machine Operation
A ny t i m e s c r u b b i n g i s c o m p l e t e d , o r w h e n r e f i l l i n g s o l u t i o n t a n k , t h e recovery tank should be drained and cleaned. If the recovery tank is not drained when the solution tank has been refilled, foam or water may enter the float shut-off mechanism and cause damage to the vacuum motor. DURA-18HD... - Page 9 4) Screw off the cover of the water filter(11) to completely exhaust the tank and check the filter screen, clean it up if necessary. 5) Screw up the cover of the water filter(11), making sure to install the screen and the "O" ring in the correct position. filter screen "O" ring filter cover DURA-18HD...
-
Page 10: Preventative Maintenance
4) Check the machine for leaks. MOTOR MAINTENANCE 1) Contact your local CleanFreak Distributor for any motor maintenance. 2) Check the motor brushes every 250 hours, Replace the brushes when they are worn to a length of 10mm or less. -
Page 11: Basic Troubleshooting
OPERATOR MANUAL BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION The wiring not connected Check the wiring or contact CleanFreak correctly or bad wiring Distributor No Power Bad brush motor Contact CleanFreak Distributor Carbon brushes worn out Contact CleanFreak Distributor The wiring not connected... -
Page 12: Technical Specification
138lbs / 62.5kg Machine Length 45.87in / 1165mm Machine Height 40.35 in / 1025mm Machine Width 20.5in / 520mm Power cord Length 82ft / 25m Max Gradient Type of Drive Brush assisted Noise Level 70 dB Working Vacuum 155 mbar DURA-18HD... -
Page 13: Parts List
PARTS LIST RECOVERY TANK ASSEMBLY DURA-18HD... - Page 14 8111300 HINGE ASSEMBLY 8021034 DECAL,RIGHT 8011009 PLATE 1421409 PLAIN WASHER 4×9×0.8,SS 1221410 PH SCREW M4×10,SS 8111015 FLOAT CAGE 8111014 FLITER COUPLING 8111001 GASKET 8113007 RUBBER STRIP 1321110 AUTO TAPPING SCREW ST3.5×10 8131003 1123406 SELFLOCKING NUT M4, SS 8011013 CABLE DURA-18HD...
- Page 15 PARTS LIST COVER TANK ASSEMBLY COVER TANK ASSEMBLY PART DESCRIPTION NO NUMBER REQ'D 8012005B COVER TANK 8012003 WARNING LABLE 8011005 8012002A GASKET DURA-18HD...
- Page 16 PARTS LIST SOLUTION TANK ASSEMBLY DURA-18HD...
- Page 17 CONTROL BOX ASSEMBLY CONTROL BOX ASSEMBLY PART DESCRIPTION NUMBER REQ'D 1421409 PLAIN WASHER 4×9×0.8 1211516 PH SCREW M5×16 1113305 SELFLOCKING NUT M3 1021820 HEX HEAD BOLT M8×20 1411824 PLAIN WASHER 8×24×2 1113507 SELFLOCKING NUT M5 8114030 FIXING BRACKET,CONTROL BOX 8113104 HANDLE DURA-18HD...
- Page 18 SPRING WASHER 4 8014033 PLATE 8014022 CONTROL TRIGGER 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211325 PH SCREW M3×25 1411309 PLAIN WASHER 3×9×0.8 8014071 SWITCH 8014061 SWITCH BRACKET 8014002 REAR PANEL 6210423 RECTIFIER 8014034 BRACKET DURA-18HD...
- Page 19 1432411 SPRING WASHER 4 8014033 PLATE 8024022 CONTROL TRIGGER 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211325 PH SCREW M3×25 1411309 PLAIN WASHER 3×9×0.8 8014071 SWITCH 8014061 SWITCH BRACKET 8014002 REAR PANEL 8014034 BRACKET DURA-18HD...
- Page 20 PARTS LIST BRUSH ASSEMBLY DURA-18HD...
- Page 21 PLAIN WASHER 6×18×1.6,SS 1221510 SH SCREW M5×10 1212410 SH SCREW M4×10 8015060 WATER INLET 8015041 MOTOR BRACKET 8015005 BRUSH COVER 1222510 SH SCREW M5×10 1421518 PLAIN WASHER 5×18×2,SS 1422513 SPRING WASHER 5 1221515 PH SCREW M5×15 1221616 PH SCREW M6×16 DURA-18HD...
- Page 22 SELFLOCKING NUT M10 8015115 NYLON WASHER 10.5×30×2.5 8015121 SPACER 13×10.5×5.5 8015002 BRACKET 8116004 DETENT RING 1656433 KEY 6.35×32 8015003 SPACER 25.5×19.5×5 8115004 SPRING Δ PART DESCRIPTION NO NUMBER REQ'D 9050018 BRUSH 18" 9040017 PAD DRIVER 17" 9000001 BIG MOUTH DURA-18HD...
- Page 23 PARTS LIST SQUEEGEE HOLDER ASSEMBLY DURA-18HD...
- Page 24 1021616 HEX HEAD SCREW M6×16,SS 1021230 HEX HEAD BOLT M12×30,SS 1421132 PLAIN WASHER 12×32×2.0 8035001 PLASTIC WASHER 12×30×1.5 8115004 SPRING 8115005 SLEEVEE, P/M 8037010 BRACKET, SQUEEGEE 1123115 SELFLOCKING NUTS M12 8115001 SQUEEGEE SUPPORT 8037015 PIN 12×70 1645324 COTTER PIN DURA-18HD...
- Page 25 8018003 HOSE 8119006 HOSE CLAMP 8119100 WATER FILTER 8018002 HOSE 8013007 JOINT 8018006 BALL VALVE 8013006 90º JOINT 8119101 FILTER BODY 1622765 O RING 8119104 FILTER SCREEN 8119102 FILTER COVER 1421409 PLAIN WASHER 4×9×0.8,SS 1221412 PH SCREW M4×12, SS DURA-18HD...
- Page 26 PARTS LIST SQUEEGEE ASSEMBLY DURA-18HD...
- Page 27 SQUEEGEE BLADE, FRONT, LINATEX 8118001 SQUEEGEE BLADE, FRONT, PU (OPTION) 8118610 SHORT CLAMP ASSEBLY 1221575 SCREW M5×75 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SHAFT 8118623 SPACER 1123507 LOCK NUT M5 8011003 VACUUM HOSE 8118000BK SQUEEGEE ASSEMBLY, LINATEX DURA-18HD...
-
Page 28: Wear & Tear Parts List
WEAR & TEAR PARTS LIST WEAR & TEAR PARTS LIST PART NO. DESCRIPTION QTY. 8115200 8 INCH WHEEL 8116078 BUMPING WHEEL 8118022 REAR SQUEEGEE 8118021 FRONT SQUEEGEE 9040017 PAD HOLDER 17" 9050018 BRUSH 18" DURA-18HD... -
Page 29: Wiring Diagram
OPERATOR MANUAL WIRING DIAGRAM DURA-18HD...
