1. INLET QUICK DISCONNECT AND HOSE- Con-
nects to machine's outlet.
2. POWER SWITCH.
3. LAMP- Indicates when heat element is on and work-
ing.
4. TWIST LOCK PIG-TAIL- This connects to the
female twistlock plug on the rear of the 17-150-CE-
HEAT-TC.
5. OUTLET QUICK DISCONNECT- Connects to
ACCESSORY HEATER KIT 705HR-TC
1
working solution line.
6. HANDLE- Used to hold and transport the heater
7. MOUNTING FEET- Used to engage the mounting
brackets on an 17-150-CE-HEAT-TC extractor and
secure the heater.
8. RESET ACCESS POINT- Allows access to the break-
er switch in the event the unit has been run dry.

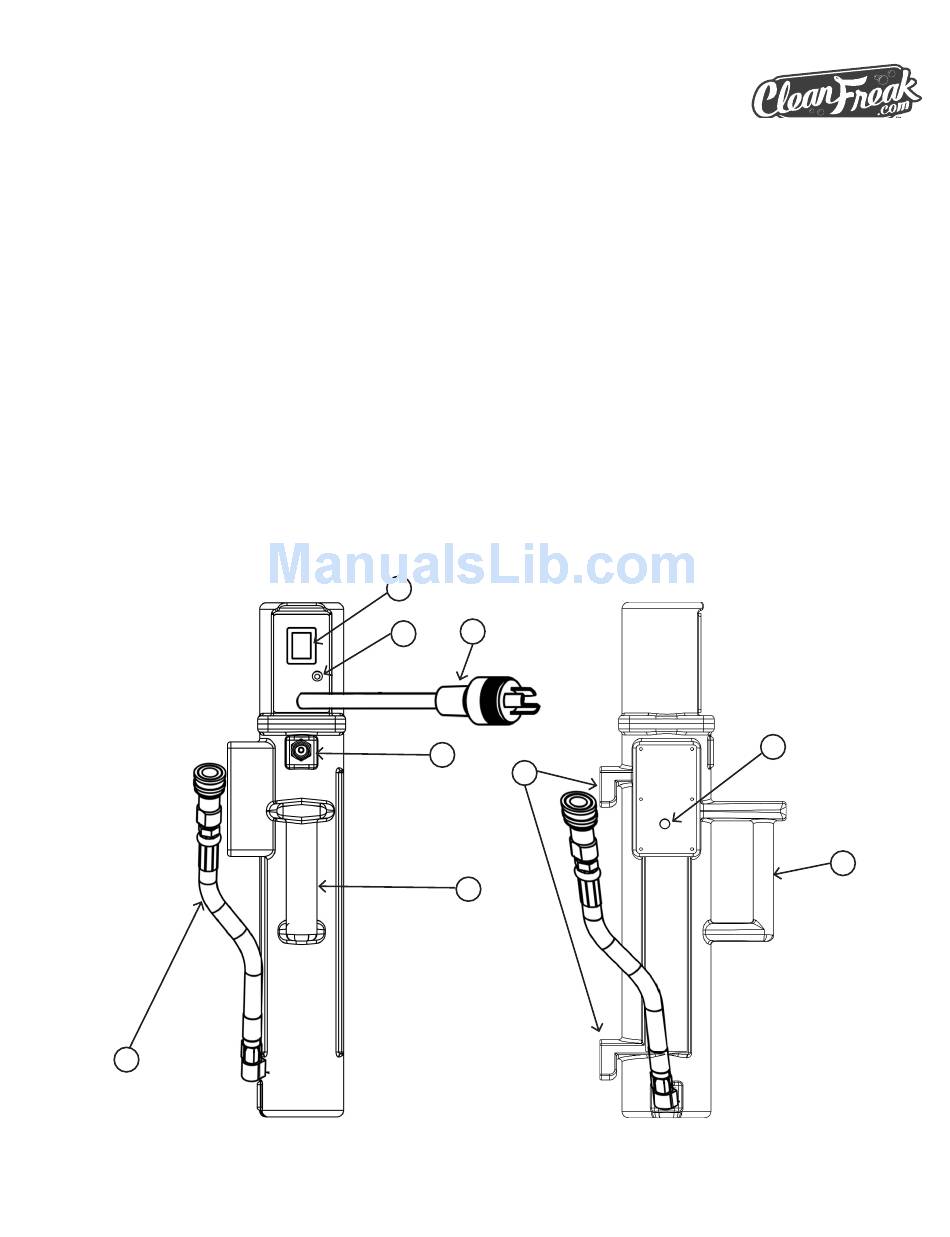

OVERVIEW
2
4
3
5
7
6
7
8
6
