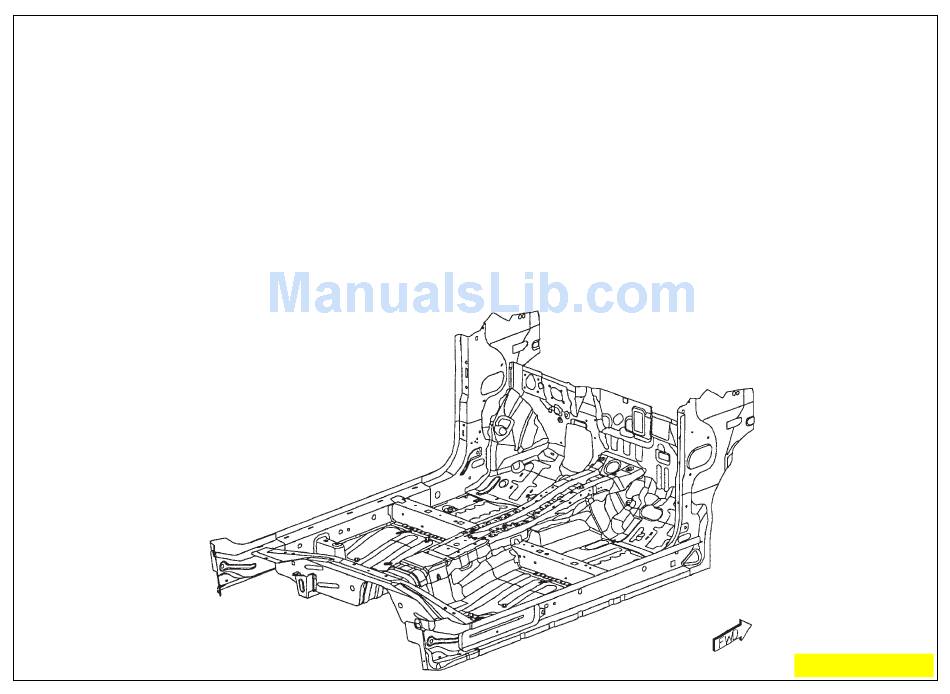

Jeep COMPASS Repair Manual page 201

AA PANEL – DASH –
AB PAN – FRT FLOOR –
AC REINF – TUNNEL –
AD CROSSMEMBER – DASH –
AE REINF – TUNNEL –
AF PANEL – DASH LWR –
AG EXTENSION – RAIL FRT RT –
AG EXTENSION – RAIL FRT LT –
AH RAIL – TUNNEL FRT RT –
AH RAIL – TUNNEL FRT LT –
AJ REINF – EXTENSION FRT RAIL INR RT –
AJ REINF – EXTENSION FRT RAIL INR LT –
AK EXTENSION – DASH LWR –
PARTS IDENTIFICATION LEGEND, OVERVIEW 21
AK EXTENSION – DASH LWR–
AL BRACE – TORQUE BOX RT –
AL BRACE – TORQUE BOX LT –
AM CROSSMEMBER – FRT FLOOR PAN FRT RT –
AM CROSSMEMBER – FRT FLOOR PAN FRT LT –
AN BRACKET – FRT SEAT RR –
AP SILL – FRT FLOOR –
AP SILL – FRT FLOOR –
AR SILL – RR FLOOR SIDEMEMBER RT –
AR SILL – RR FLOOR SIDEMEMBER LT –
AS REINF – SILL RT –
AS REINF – SILL LT –
AT PANEL – EXTENSION FRT RAIL INR RT –
AT PANEL – EXTENSION FRT RAIL INR LT –
AU REINF – FRT FLOOR RT –
AU REINF – FRT FLOOR LT –
AV SIDEMEMBER – FRT FLOOR –
AW EXTENSION – SIDEMEMBER FRT FLOOR LT –
AW EXTENSION – SIDEMEMBER FRT FLOOR RT –
AX PANEL – EXTENSION FRT RAIL INR RT –
AX PANEL – EXTENSION FRT RAIL INR LT –
AY EXTENSION – RR FLOOR –
AZ REINF – FRT SILL INR FRT RT –
AZ REINF – FRT SILL INR FRT LT –
