Congratulations on your purchase! To get optimum performance from your Pearl drum set,
Crash Cymbal (16")
Cymbal Boom Stand
Hi-Hat Cymbal
(14")
Hi-Hat Stand
Snare Stand
Drum Throne
VISION
Instruction Manual
please read this Instruction Manual first before playing.
Tom Tom
Snare Drum
Tom Holder
Tom Tom
Bass Drum
Floor Tom
Drum Pedal
Ride Cymbal (20")
Cymbal Stand
Advertisement
Related Manuals for Pearl VISION Series
Summary of Contents for Pearl VISION Series

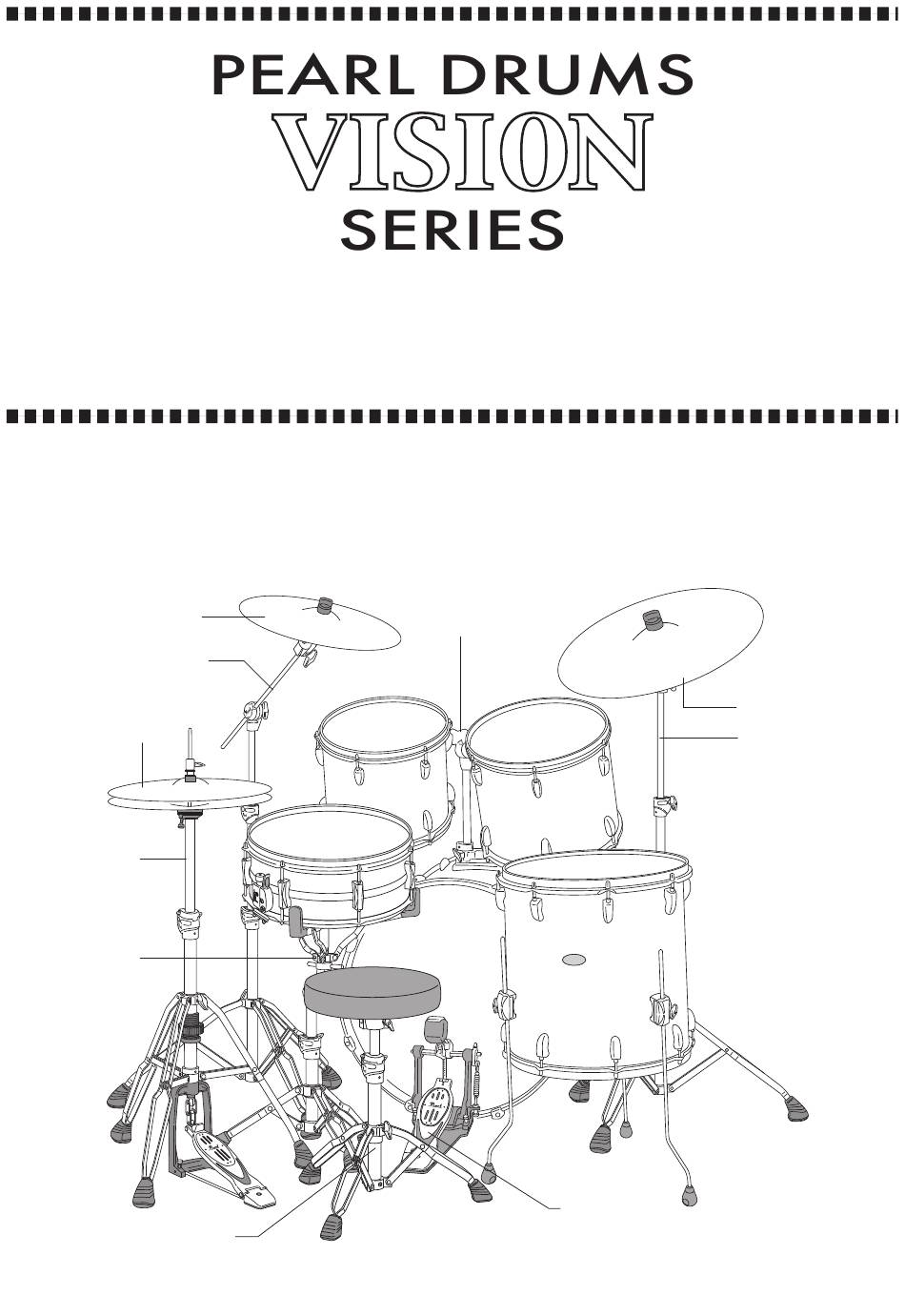

- Page 1 VISION Instruction Manual Congratulations on your purchase! To get optimum performance from your Pearl drum set, please read this Instruction Manual first before playing. Crash Cymbal (16") Tom Holder Cymbal Boom Stand Ride Cymbal (20") Hi-Hat Cymbal Tom Tom Tom Tom Cymbal Stand (14")
- Page 2 Bass Drum Assembly 4. Position the bass drum upright and set the Bass Drum Spurs as shown with the front of the drum about an inch Please follow the assembly instructions below. off the floor. 1. Place the shell on a clean, solid surface with the Bass The Bass Drum Spurs have spike tips (for added slip Drum Spurs and the Tom Holder Bracket facing resistance) that can be exposed by turning the Lock...
- Page 3 Attaching the I.S.S. Drum Pedal Assembly To attach the I.S.S. mount, loosen the key bolts on the hooks Hook the spring to the cam roller as shown. Insert the and clip the hooks over the upper hoop of the tom as beater into the beater holder link and secure it with the shown.
- Page 4 Upper Section Assembly Cymbal / Boom Stand Assembly Thread the Upper Pull Rod into the Connector as shown in Open the legs of the (Fig. 14-A). stand base to form a Loosen the Key Bolt on the Stop Lock until the Stop Lock stable tripod and insert slides freely on the Upper Tube.
- Page 5 "Duo-Motion"Strainer Snare Stand Assembly (for VISION Series ONLY) The "Duo-Motion" strainer can be converted from Open the legs of the stand to form a stable tripod and traditional side-to-side to "Gladstone-type" lever action by insert the Top Section into the base. Open the basket and following the steps below.
- Page 6 Basic Tuning Here is the basic tuning method using the snare drum as an example. Gradually tighten the tension bolts using a crisscross pattern as shown. Tap the head at each tension rod in a zone between 20mm and 30mm from the rim as shown below and listen to the pitches.
