2.4.4 Connection to backup heater
A1
A
A1
A2

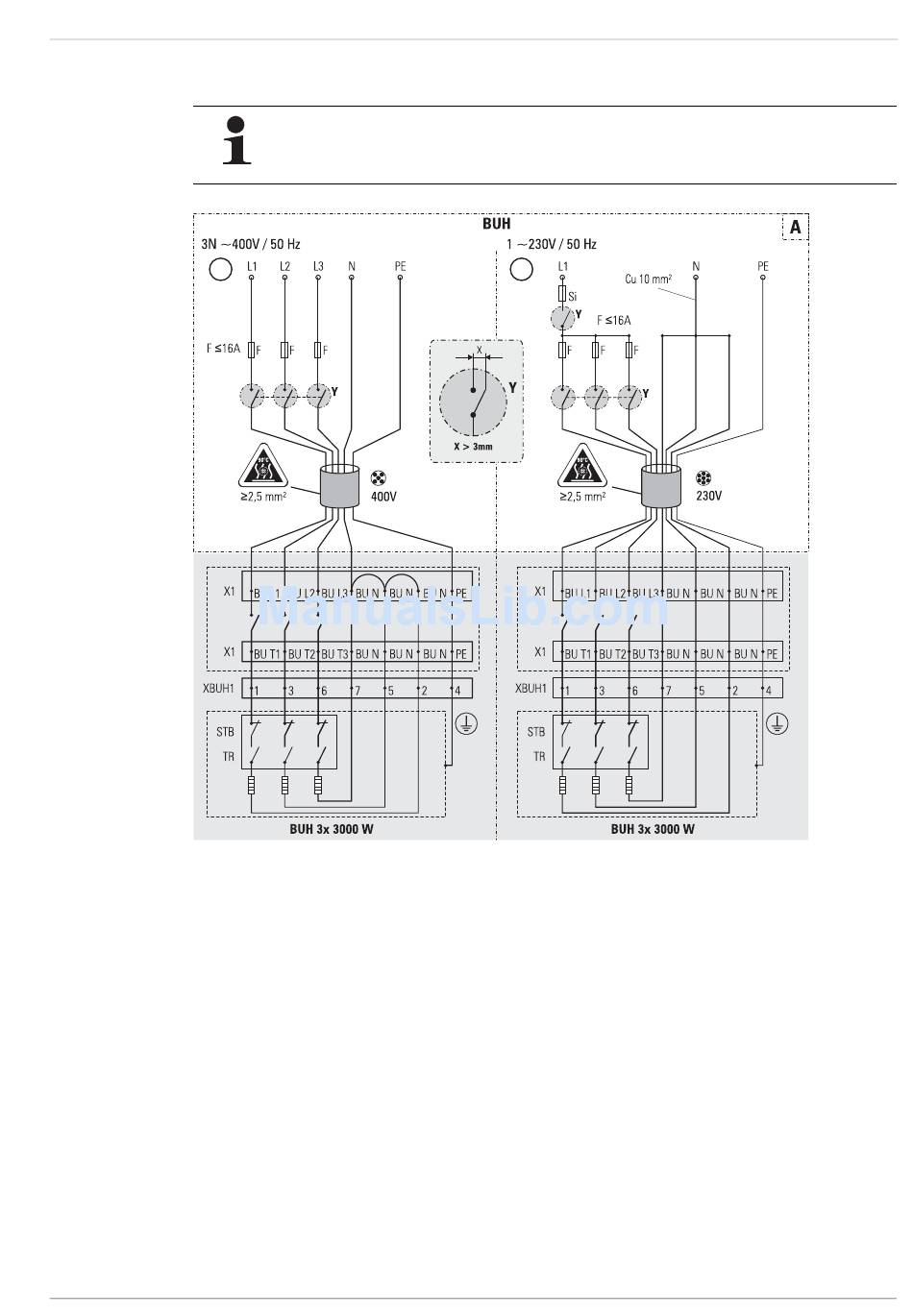

Fig. 2-21
FA ROTEX HPSU compact 308 - 02/2012
This component has a separate manual attached, including among other things instructions for installation and
operation.
On-site cabling
BUH connection variants 3-phase
BUH connection variants 1-phase (observe country-specific
connection conditions - request from responsible power
company (EVU))!
Connecting optional backup heater
2
x
Set-up and installation
A2
X
Minimum clearance contact (>3 mm)
Y
Switching contactor
19
