Rotex HPSU compact 308 Installation Instructions Manual page 16

Solar tank with integrated interior heat pump unit

Hide thumbs Also See for HPSU compact 308:

Table of Contents

Set-up and installation

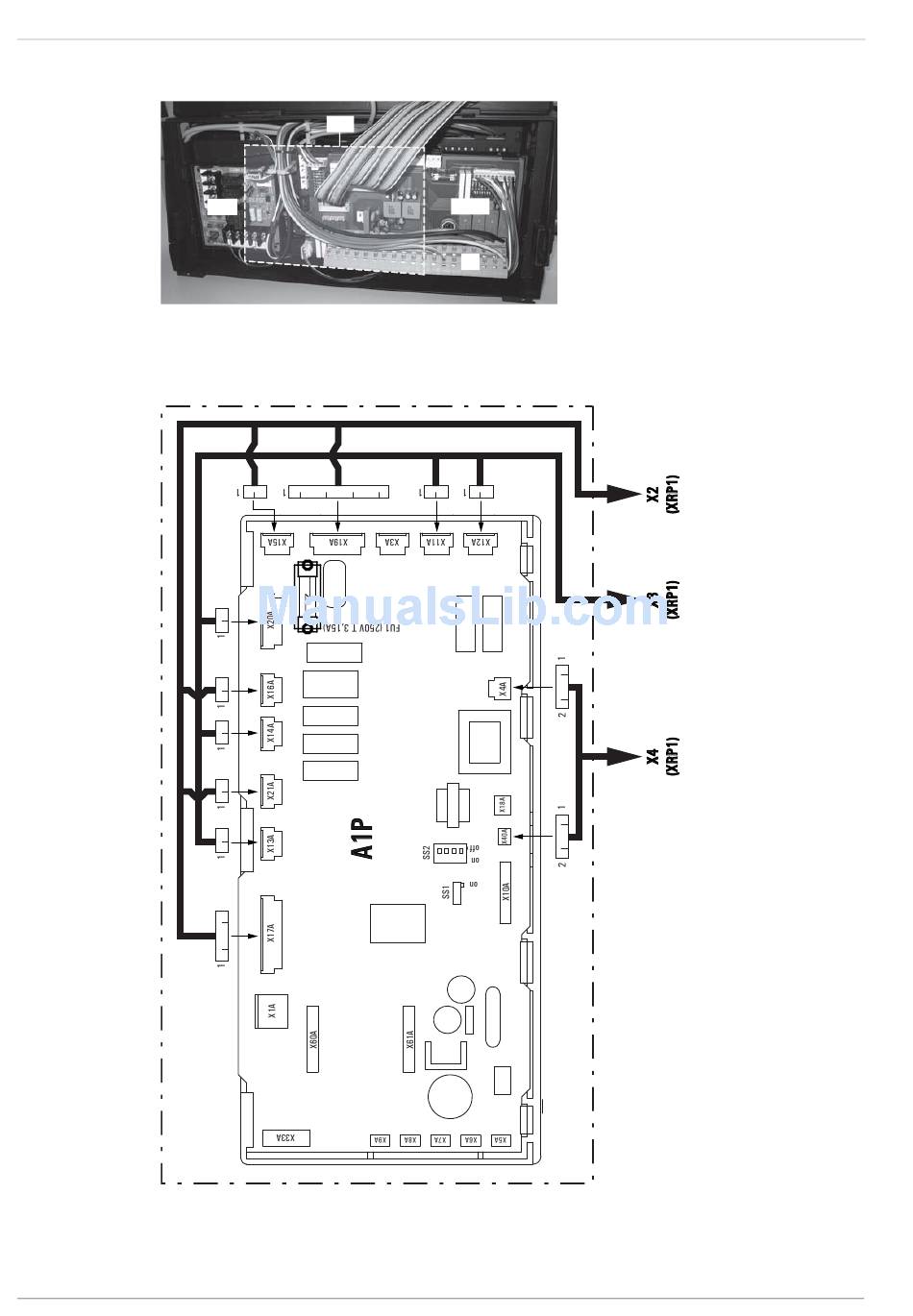

Position of the circuit boards

Fig. 2-16

Connection assignment, circuit board A1P

The A1P circuit board comes pre-connected to the unit. No assembly or connection work is necessary on the A1P circuit board!

Fig. 2-17

A1P

A4P

Overview, circuit boards of control unit

Circuit board A1P

A1P Circuit board (under XR1P)

A4P Solaris circuit board (accessories)

Terminal strip

XR1P Circuit board

XR1P

FA ROTEX HPSU compact 308 - 02/2012
