Confirm

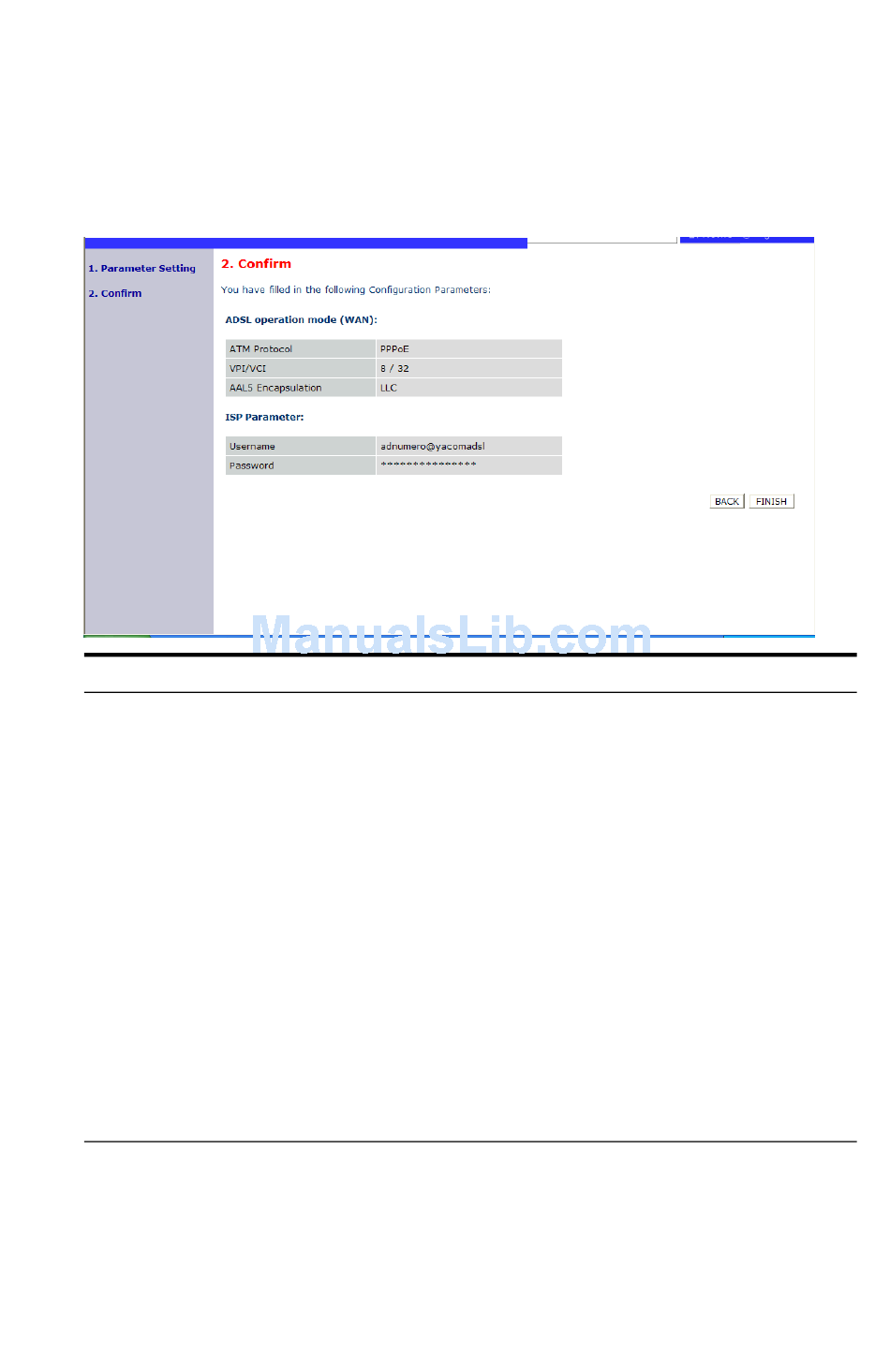

The Confirm screen shows a summary of the configuration parameters.
Check all the parameters are correct on this screen.
Parameter
ADSL Operation Mode
(WAN)
ATM Protocol
VPI/VCI
AAL5 Encapsulation
ISP Parameters
Username
Password
C
ONFIGURING THE
Description
The WAN protocol of your ISP. If you are unsure
about the selected protocol, check with your ISP.
Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI). If you are unsure the VPI/VCI
values are correct check with your ISP.
Shows the packet encapsulation type. If you are
unsure the selected Encapsulation is correct check
with your ISP. Go to page 4-21 for a detailed
description.
The ISP assigned user name.
The password (hidden).
4-6
