C V IP ADSL R
ONFIGURING THE O OUTER

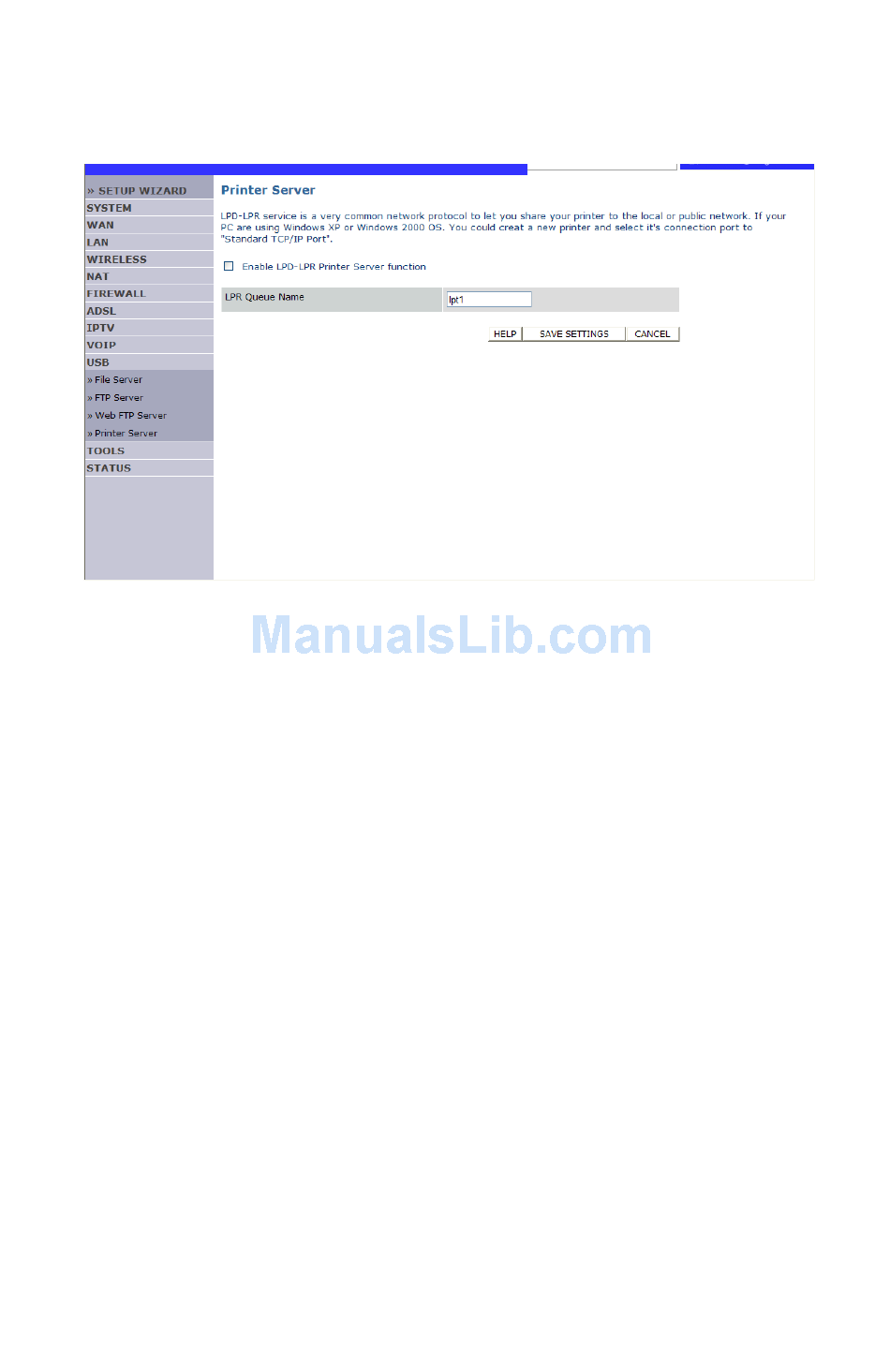

Printer Server
To use the printer server service, click Enable USB function to enable
the server services. Click Update Status to refresh the screen as shown
on page 4-67.
LPD-LPR service is a very common network protocol that allows you to
share your printer to the local or public network. If your PC is using
Windows XP or Windows 2000 OS. You could creat a new printer and
select it's connection port to "Standard TCP/IP Port".
To create a new printer server:
1. Select Enable for the LPD-LPR Printer Server function.
2. Define the LPR Queue Name.
4-72
