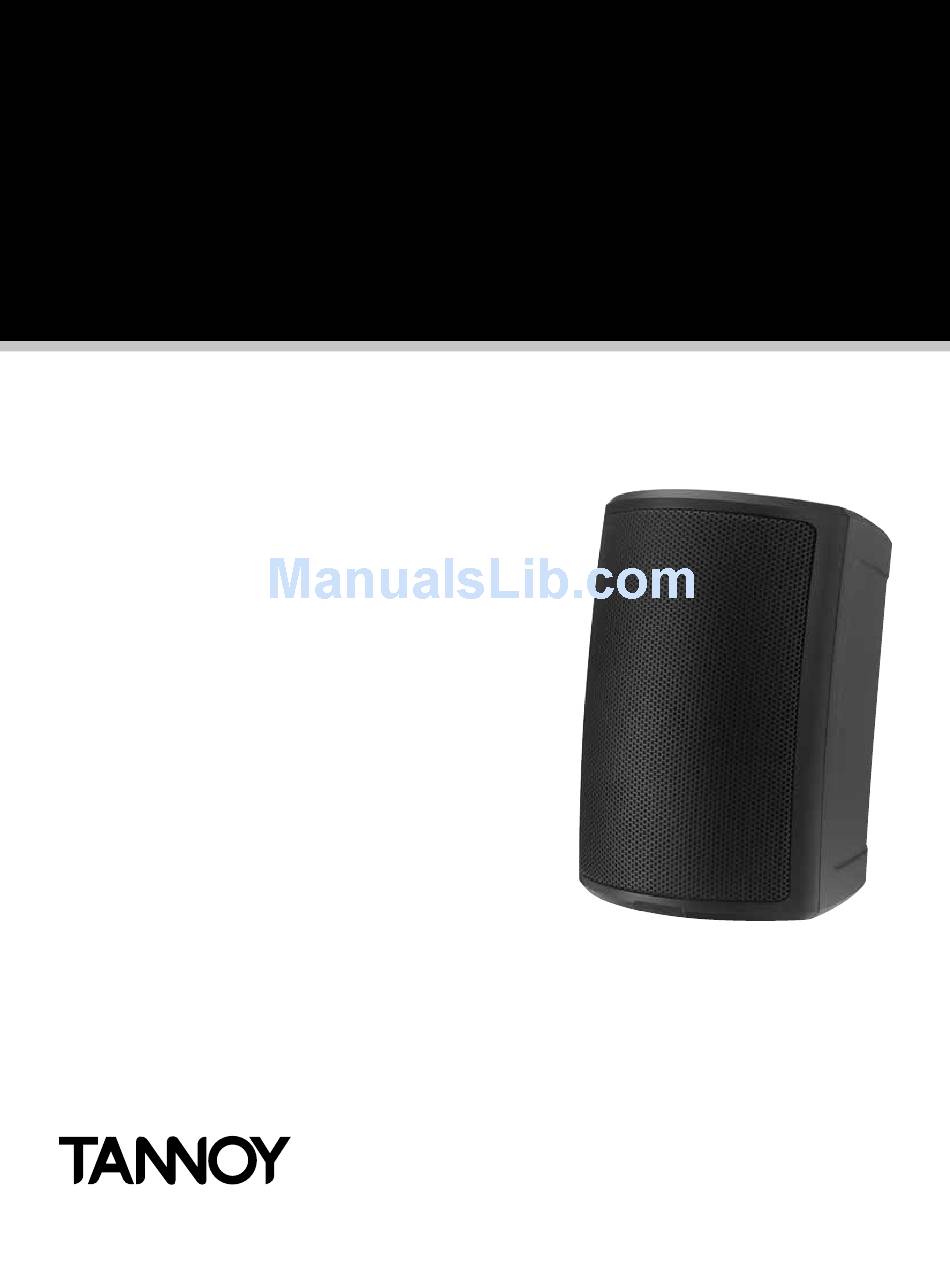

  • Page 1 AMS Series Surface mount loudspeakers Operation Manual...
  • Page 2 AMS Series Operation Manual rev 1.1.0...

  • Page 3: Table Of Contents

    2. Safety Notices 3. Unpacking 4. Accessories 5. Installation 5.1. Installation using included yoke bracket ....................6 5.2. Installation using optional VariBall bracket ....................7 6. Setting transformer taps 7. Product Dimensions 8. Technical Specifications 9. Warranty AMS Series Operation Manual rev 1.1.0...

  • Page 4: Introduction

    1. Introduction 1. Introduction Thank you for purchasing this new AMS Series product. Designed for both speech and music program material, the Tannoy AMS range provides exceptional sonic quality and long-term reliability in all surface mount applications. The AMS range offers five models: three featuring a new generation of Dual Concentric™ drivers and two with an improved version of Tannoy’s ICT™...

  • Page 5: Unpacking

    3. Unpacking 3. Unpacking Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

  • Page 6: Installation

    6. Place the loudspeaker inside the yoke bracket. Position buffers between bracket and loudspeaker as shown. Attach with supplied fixings using a 5mm Allen key. Use the longer hex screws supplied when mounting the yoke bracket. AMS Series Operation Manual rev 1.1.0...

  • Page 7: Installation Using Optional Variball Bracket

    Note: Tighten pins 3 and 4 even if not used to prevent vibration of the screws. 5. For outdoor installation: Feed the loudspeaker wire(s) through the opening in the neck of the cable entry cover included with the product. AMS Series Operation Manual rev 1.1.0...
  • Page 8 3 mm Allen key and included screws. Orient the cover plate so that the neck opening is facing downward to minimise entry of moisture or particulates. 8. Connect a secondary support line to the safety tab at the rear of the cabinet. AMS Series Operation Manual rev 1.1.0...

  • Page 9: Ams Series Operation Manual Rev 1.1.0

    5. Installation AMS 5 - Variball Angle Options (Vertical) 18° 18° Fig.1 51° 45° 25° Fig.2 AMS 5 - Variball Angle Options (Horizontal) Fig.3 18° Fig.4 64° 51° AMS Series Operation Manual rev 1.1.0...
  • Page 10 5. Installation AMS 6 - Variball Angle Options (Vertical) 18° 18° 63° 39° 45° AMS 6 - Variball Angle Options (Horizontal) 18° 70° 63° 45° AMS Series Operation Manual rev 1.1.0...
  • Page 11 5. Installation AMS 8 - Variball Angle Options (Vertical) 18° 66° 43° 45° AMS 8 - Variball Angle Options (Horizontal) 18° 71° 66° 45° AMS Series Operation Manual rev 1.1.0...

  • Page 12: Setting Transformer Taps

    Models with 6-inch and 8-inch drivers are fitted with 60W transformers. In distributed line applications, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tap for 70 V line systems. AMS Series Operation Manual rev 1.1.0...

  • Page 13: Product Dimensions

    CABLE ENTRY COVER FOR EXTERNAL USE. THIS CAN BE ROTATED FOR NORTH, SOUTH, 155.0 EAST OR WEST ENTRY. [6.10"] 35.0 Ø22.0 [1.38"] [Ø0.87"] 90.0 Ø11.0 [3.54"] [Ø0.43"] 240.0 248.0 [9.45"] [9.77"] 90.0 [3.54"] [0.24"] AMS Series Operation Manual rev 1.1.0...
  • Page 14 CABLE ENTRY COVER FOR EXTERNAL USE. THIS CAN BE ROTATED FOR NORTH, SOUTH, 230.0 EAST OR WEST ENTRY. [9.05"] 35.0 [1.38"] 90.0 Ø22.0 [3.54"] [Ø0.87"] 360.9 364.8 [14.21"] [14.36"] Ø11.0 [Ø0.43"] 90.0 [0.24"] [3.54"] AMS Series Operation Manual rev 1.1.0...
  • Page 15 CABLE ENTRY COVER FOR EXTERNAL USE. 230.0 THIS CAN BE ROTATED FOR NORTH, SOUTH, [9.05"] EAST OR WEST ENTRY. 35.0 [1.38"] 90.0 Ø22.0 [3.54"] [Ø0.87"] 360.9 364.8 [14.21"] [14.36"] Ø11.0 [Ø0.43"] 90.0 [0.24"] [3.54"] AMS Series Operation Manual rev 1.1.0...
  • Page 16 CABLE ENTRY COVER FOR EXTERNAL USE. THIS CAN BE ROTATED FOR NORTH, SOUTH, 260.0 EAST OR WEST ENTRY. [10.24"] 35.0 [1.38"] 90.0 Ø22.0 [3.54"] [Ø0.87"] 407.5 409.8 [16.04"] [16.13"] Ø11.0 [Ø0.43"] 90.0 [0.24"] [3.54"] AMS Series Operation Manual rev 1.1.0...

  • Page 17: Technical Specifications

    (9.77 x 6.10 x 8.03”) critical applications. Net Weight (ea) 3.25 kg (7.16 lbs) Copyright (c) 2015 Tannoy Limited. All rights reserved. Shipped weight 3.66 kg (8.07 lbs) Included Accessories Yoke bracket Packed Quantity...
  • Page 18 Net Weight (ea) 3.25 kg (7.16 lbs) critical applications. Shipped weight 3.66 kg (8.07 lbs) Copyright (c) 2015 Tannoy Limited. All rights reserved. Included Accessories Yoke bracket Packed Quantity AMS Series Operation Manual rev 1.1.0...
  • Page 19 Net Weight (ea) 3.25 kg (7.16 lbs) critical applications. Shipped weight 3.66 kg (8.07 lbs) Included Accessories Yoke bracket Copyright (c) 2015 Tannoy Limited. All rights reserved. Packed Quantity AMS Series Operation Manual rev 1.1.0...
  • Page 20 (14.36 x 9.05 x 10.58”) critical applications. Net Weight (ea) 6.08 kg (13.40 lbs) Copyright (c) 2015 Tannoy Limited. All rights reserved. Shipped weight 6.76 kg (14.90 lbs) Included Accessories Yoke bracket Packed Quantity...
  • Page 21 Net Weight (ea) 5.14 kg (11.33 lbs) critical applications. Shipped weight 5.82 kg (12.83 lbs) Copyright (c) 2015 Tannoy Limited. All rights reserved. Included Accessories Yoke bracket Packed Quantity AMS Series Operation Manual rev 1.1.0...
  • Page 22 Net Weight (ea) 5.14 kg (11.33 lbs) critical applications. Shipped weight 5.82 kg (12.83 lbs) Included Accessories Yoke bracket Copyright (c) 2015 Tannoy Limited. All rights reserved. Packed Quantity AMS Series Operation Manual rev 1.1.0...
  • Page 23 (16.13 x 10.24 x 12.06”) critical applications. Net Weight (ea) 7.82 kg (17.24 lbs) Copyright (c) 2015 Tannoy Limited. All rights reserved. Shipped weight 8.69 kg (19.16 lbs) Included Accessories Yoke bracket Packed Quantity...

  • Page 24: Warranty

    If you suspect a problem with a Tannoy product then, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor. If you cannot locate your distributor please contact Customer Services, Tannoy Ltd at the address given below.
  • Page 25 Notes Notes AMS Series Operation Manual rev 1.1.0...
  • Page 26 Notes Notes AMS Series Operation Manual rev 1.1.0...
  • Page 27 Notes Notes AMS Series Operation Manual rev 1.1.0...
  • Page 28 Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications. All specifications are subject to change without notice. Copyright (c) 2015 Music Group Innovation SC Ltd. All rights reserved.
