Stamina 1201 Owner's Manual

Orbital rower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual

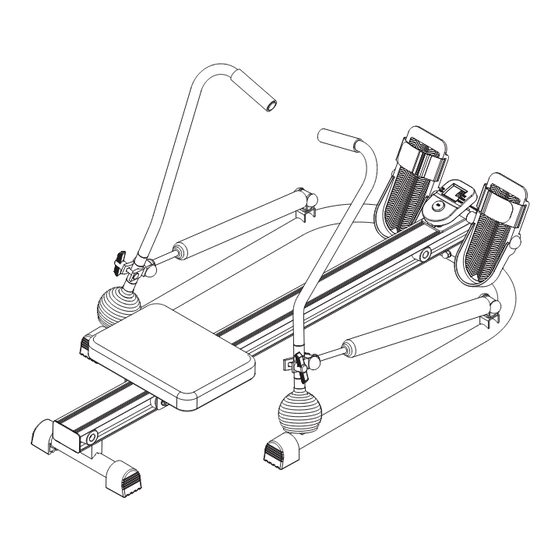

Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N. Alliance, Springfield, MO 65803
Customer Service
1 (800) 375-7520
www.staminaproducts.com
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following number :
Model#: 35-1201
STAMINA PRODUCTS
MADE IN CHINA
©
2014 Stamina Products, Inc.
2014, 11

Advertisement

Table of Contents
loading

Related Manuals for Stamina 1201

Summary of Contents for Stamina 1201

  • Page 1 CAUTION: Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N. Alliance, Springfield, MO 65803 Customer Service © 2014 Stamina Products, Inc. 1 (800) 375-7520 2014, 11 www.staminaproducts.com...

  • Page 2: Table Of Contents

    16. The 1201 Orbital Rower should not be used by persons weighing over 250 pounds. 17. The 1201 Orbital Rower should be used by only one person at a time. 18. The 1201 Orbital Rower is for consumer use only. It is not for use in public or semipublic facilities.

  • Page 3: Customer Service

    To help you get started, we have pre-assembled most of your 1201 Orbital Rower at the factory with the exception of those few parts left unassembled for shipping purposes. Simply follow the few assembly instructions set forth in this manual.

  • Page 4: Before You Begin

    If you have any questions or problems with It's a proven fact that a regular exercise program the parts included with your 1201 Orbital Rower, can improve your physical and mental health. please do not return the product. Contact us...

  • Page 5: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the 1201 Orbital Rower. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

  • Page 6: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 7: Assembly Instructions

    Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday. NOTE: Lay your partially assembled 1201 Orbital Rower upside down to complete Step 1. STEP 1 Insert the CONNECTING BAR(13) into the RIGHT BASE(1). Put the RIGHT BASE(1) assembly into the MOUNTING BRACKET(9), then use a CARRIAGE BOLT(M8x1.25x55mm)(37) to go through MOUNTING...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 2 There is an “R” decal on the RIGHT HANDLEBAR(6), and a “L” decal on the LEFT HANDLEBAR(7). Slide the BELLOW(24) onto the RIGHT HANDLEBAR(6). Attach the RIGHT HANDLEBAR(6) to the PIVOTING BRACKET(3) located on the rear of the RIGHT BASE(1) with HEX HEAD BOLT(M8x1.25x45mm)(40), WASHERS(M8)(46), and NYLOCK NUT(M8x1.25)(48).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 There is an “R” decal on the RIGHT PEDAL CAP(20R), and a “L” decal on the LEFT PEDAL CAP(20L). Insert the PEDAL SHAFT(15) through hole on the PEDAL SUPPORT(10). Place a SPACER(21) and the RIGHT PEDAL CAP(20R) onto right end of the PEDAL SHAFT(15). Place a SPACER(21) and the LEFT PEDAL CAP(20L) onto left end of the PEDAL SHAFT(15).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 7 Attach the SEAT(18) to the SEAT CARRIAGE(8) with BUTTON HEAD BOLTS(M6x1x15mm)(43).

  • Page 11: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Seat movement or press the button. POWER OFF : Automatic shut off after four minutes of inactivity. FUNCTION BUTTON: Press to select lower display functions. Lower display functions include SCAN, TIME, CALORIES, DISTANCE, and TOTAL COUNT. Press and hold for three seconds to reset all functions to zero.

  • Page 12: Storage

    1201 Orbital Rower. Do not use the SEAT(18) to move the 1201 Orbital Rower. The SEAT(18) will move and the SEAT CARRIAGE(8) may pinch your hand or fingers. 3. To avoid damage to the electronics, remove the battery before storing the 1201 Orbital Rower for one year or more.

  • Page 13: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 14: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 15: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 17: Parts List

    PARTS LIST PART# PART NAME Right Base Left Base Pivoting Bracket Rotating Bracket Tension Adjuster Right Handlebar Left Handlebar Seat Carriage Mounting Bracket Pedal Support Rear Stabilizer Support Plate Connecting Bar Washer (M8 x ø24 x 2mm thick) Pedal Shaft Center Beam Shock Seat...
