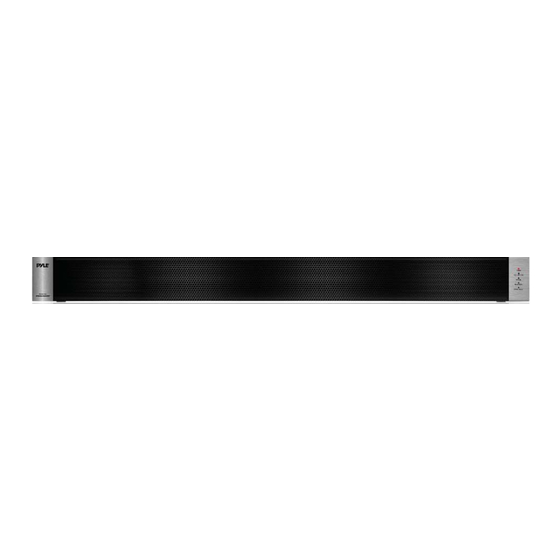

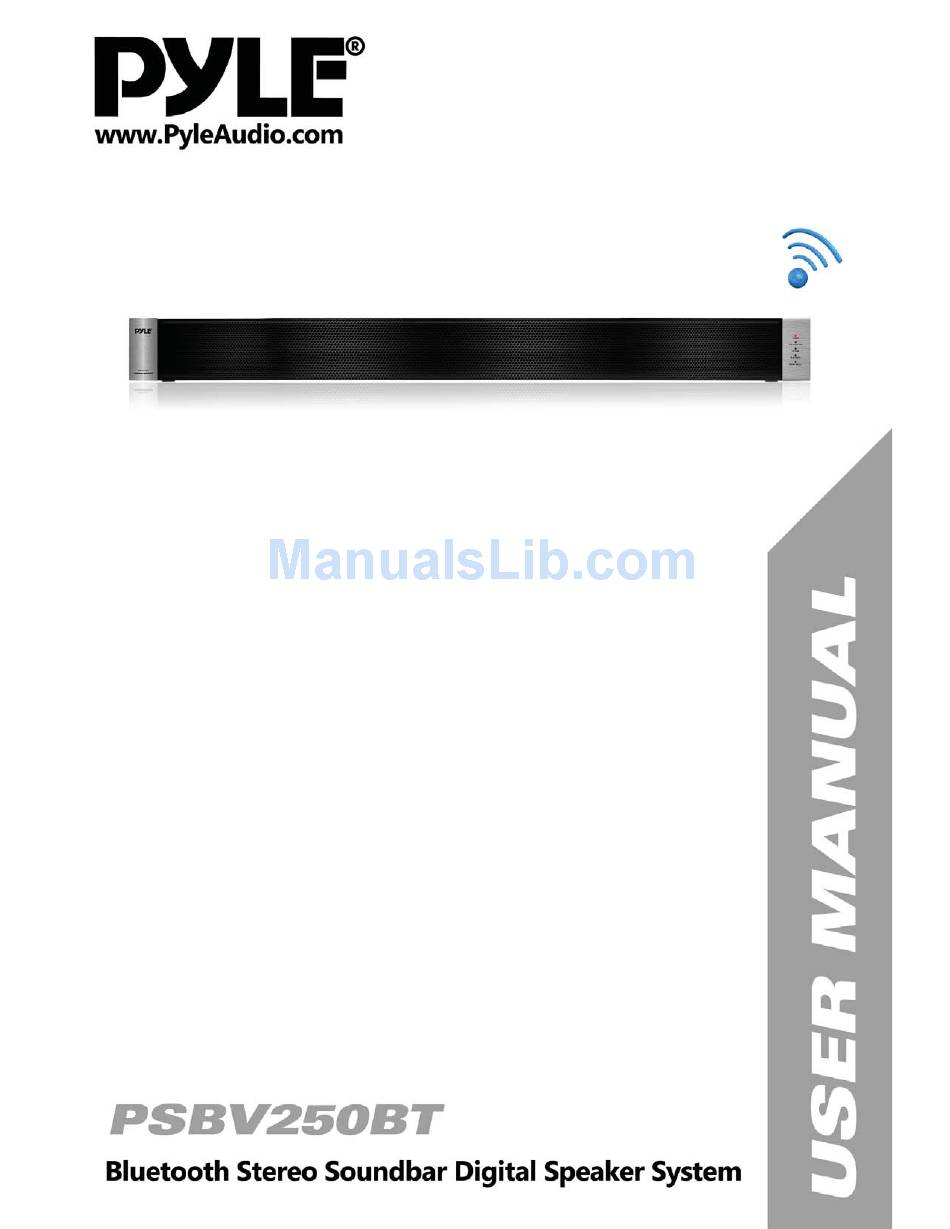

Summary of Contents for Pyle PSBV250BT
-
Page 2: Table Of Contents
Contents Important Safety Instructions .................. 2 Safety ..................................2 Warning ................................... 3 Placement and Mounting ..................4 Placement ................................4 Wall Mounting ............................... 4 Identifying the Parts ....................5 Main Unit ................................6 Remote Control ..............................7 Preparations ....................... 7 Prepare the Remote Control .......................... -
Page 3: Important Safety Instructions
Important Safety Instructions 8 Do not install near any heat sources such CAUTION as radiators, heaters, stoves, or other RISK OF ELECTRIC SHOCK apparatus (including amplifiers) that DO NOT OPEN produce heat. CAUTION: TO REDUCE THE RISK OF ELECTRIC 9. Do not defeat the safety purpose of the SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 4: Warning
Caution: 8 Do not attempt to clean the unit with chemical solvents as this might damage U s e o f c o n t r o l s o r a d j u s t m e n t s o r the finish. -
Page 5: Placement And Mounting
Placement and Mounting Placement A If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. B If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen. - Page 6 Attach the wall brackets to the main unit with Remove the screws from the main unit. the screws removed from the main unit. Wall bracket Drill 2 parallel holes (Ø 3-8 mm each according Firmly fix 1 dowel into each hole in the wall to wall type) in the wall.
-
Page 7: Identifying The Parts
Identifying the Parts Main Unit POWER AUX/MP3 LINK OPTICAL BLUETOOTH MOVIE / MUSIC Front View 1 Speakers 2 Remote Control Sensor 3 LED Indicators POWER: In STANDBY mode: Light up red. AUX/MP3 LINK In AUX mode: Light turn on. In MP3 LINK mode: Light flash. OPTICAL: Sound output available: Light turn on. -
Page 8: Remote Control
Remote Control S w i t c h t h e u n i t b e t w e e n O N a n d STANDBY mode. 2 SOURCE Select the play function. 3 VOL+/VOL- Increase/decrease the volume level. In Bluetooth mode, skip to previous/next audio file. -
Page 9: Replace The Remote Control Battery
Replace the Remote Control Battery 1 Pull out the battery tray and remove the old battery. 2 Place a new CR2025 battery into the battery tray with correct polarity (+/-) as indicated. 3 Insert the battery tray back into the slot. Precautions Concerning Batteries When the Remote Control is not to be used for a long time (more than a month), remove the battery from the Remote Control to prevent it from leaking. -
Page 10: Use The Mp3 Link Socket
RCA to RCA audio cable (included) B. Use a RCA to 3.5mm audio cable (not included) to connect the TV’s headphone socket to the AUX (R/L) socket on the unit. RCA to 3.5mm audio cable (not included) Use the MP3 Link Socket Use a 3.5mm to 3.5mm audio cable (not included) to connect the external audio device headphone socket to the MP3 LINK socket on the unit. -
Page 11: Basic Operation
Basic Operation Standby/ON When you first connect the main unit to the mains socket, the main unit will be in Standby mode. The POWER Indicator will light up red. Press the /SOURCE button on the main unit or the button on the remote control to switch the main unit on. -
Page 12: Aux/Mp3 Link/Optical Operation
3 Activate your Bluetooth device and select the search mode. “PSBV250BT” will appear on your Bluetooth device list. 4 Select “PSBV250BT” in the pairing list. The Bluetooth indicator will light up solidly while the pairing succeeds. 5 To disconnect the Bluetooth function, switch to another function on the unit or disable the function from your Bluetooth device. -
Page 13: Listen To Music From Bluetooth Device
4 The player will also be disconnected when your device is moved beyond the operational range. 5 If you want to reconnect your device to this player, place it within the operational range. 6 If the device is moved beyond the operational range, when it is brought back, please check if the device is still connected to the player. -
Page 14: Specifications
Specifications General Power requirements ........................AC 120V ~ 60Hz Power consumption ............................20 W Output power ............................... 20 W x 2 Total harmonic distortion ......................1%(1kHz, 1W) Audio input sensitivity ..........................700mV Frequency response.......................... 40Hz - 20KHz Dimension (W x H x D) ......................806 x 62 x 60 mm Speakers Total impedance ..............................
