Facsimile FAX-8070P (for CE type) /FAX-2850

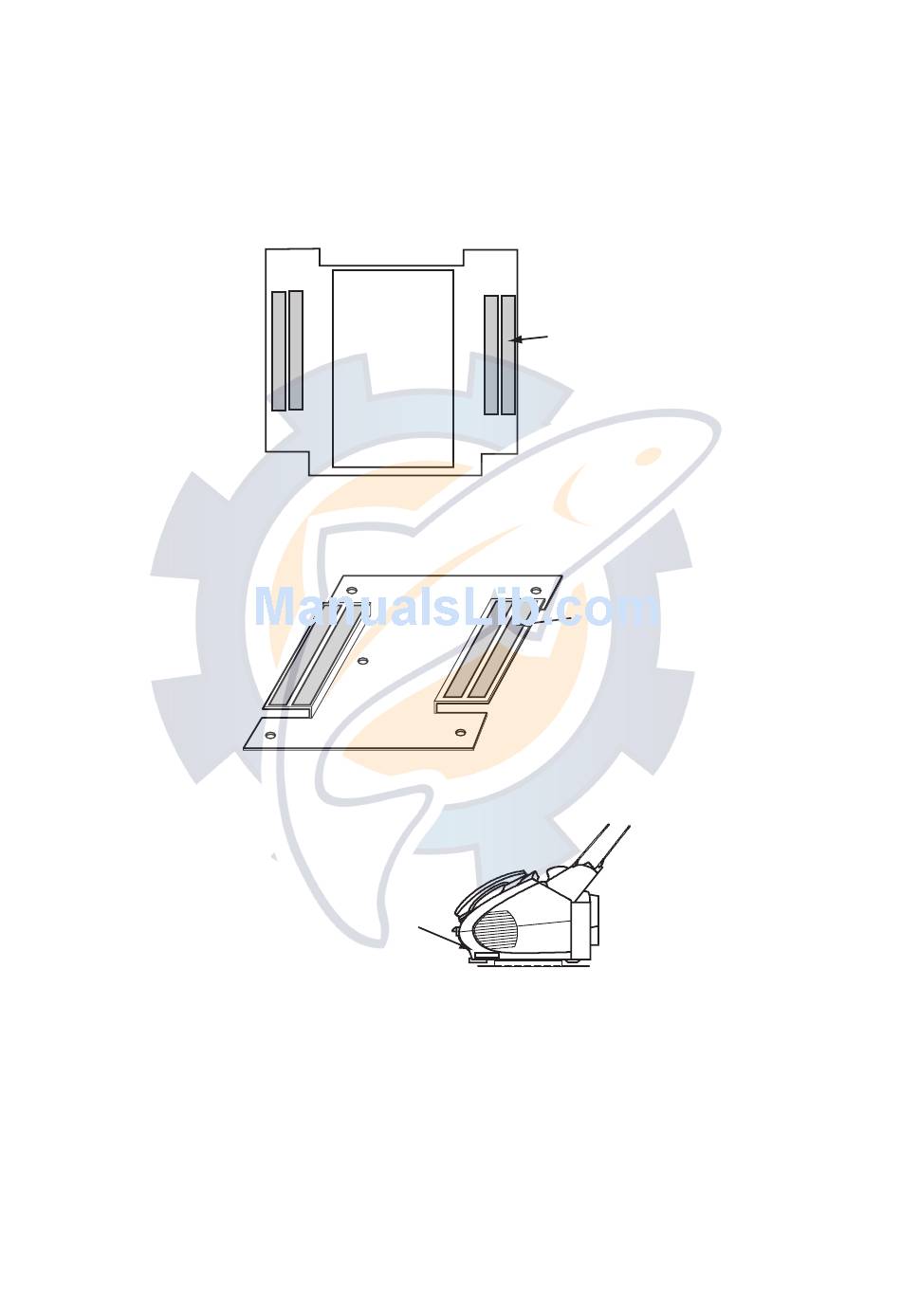

Refer to the drawing below. Use only the installation materials supplied.
Note: When ship's main is 110/115 VAC, the optional Transformer E-300 is required.
1. Attach four "rough" hook & loop fasteners (2) to the bottom of the facsimile as shown in
the drawing below.
2. Attach four "smooth" hook & loop fasteners (1) to the facsimile fixing plate as shown
below.
3. Attach the compass safety distance label at the right side as shown below.
BOTTOM
OF
FAX
Compass Safe
Distance Label
31
Hook & Loop
Fastener (2)
Hook & Loop
Fastener (1)
