6. Remove the air baffle from the CPU bracket and remove the dust cover from the
motherboard VHDM connector (slot B for one Sun XVR-4000 graphics accelerator,
slots B and C for two graphics accelerators). (
Air baffle
Bus slot cover
FIGURE 4-4
7. Store the air baffle by sliding it under the metal storage slot located on the
enclosure interior ceiling.
When the air baffle is properly aligned in the storage slot, the air baffle black pin will
easily insert into the metal slot hole to lock it in place. (If you are replacing the air
baffle for the chassis board slot, properly align the air baffle in the slot and the black
pin will easily insert into the hole to lock the air baffle in place.)
8. Be sure to attach the antistatic wriststrap provided with the Installation Kit.
Refer to section "How to Avoid Electrostatic Discharge" in the Sun Fire 880 Server
Owner's Guide.
9. Position the Sun XVR-4000 graphics accelerator into the chassis guide rails for the
selected slot (B or C).
Sun

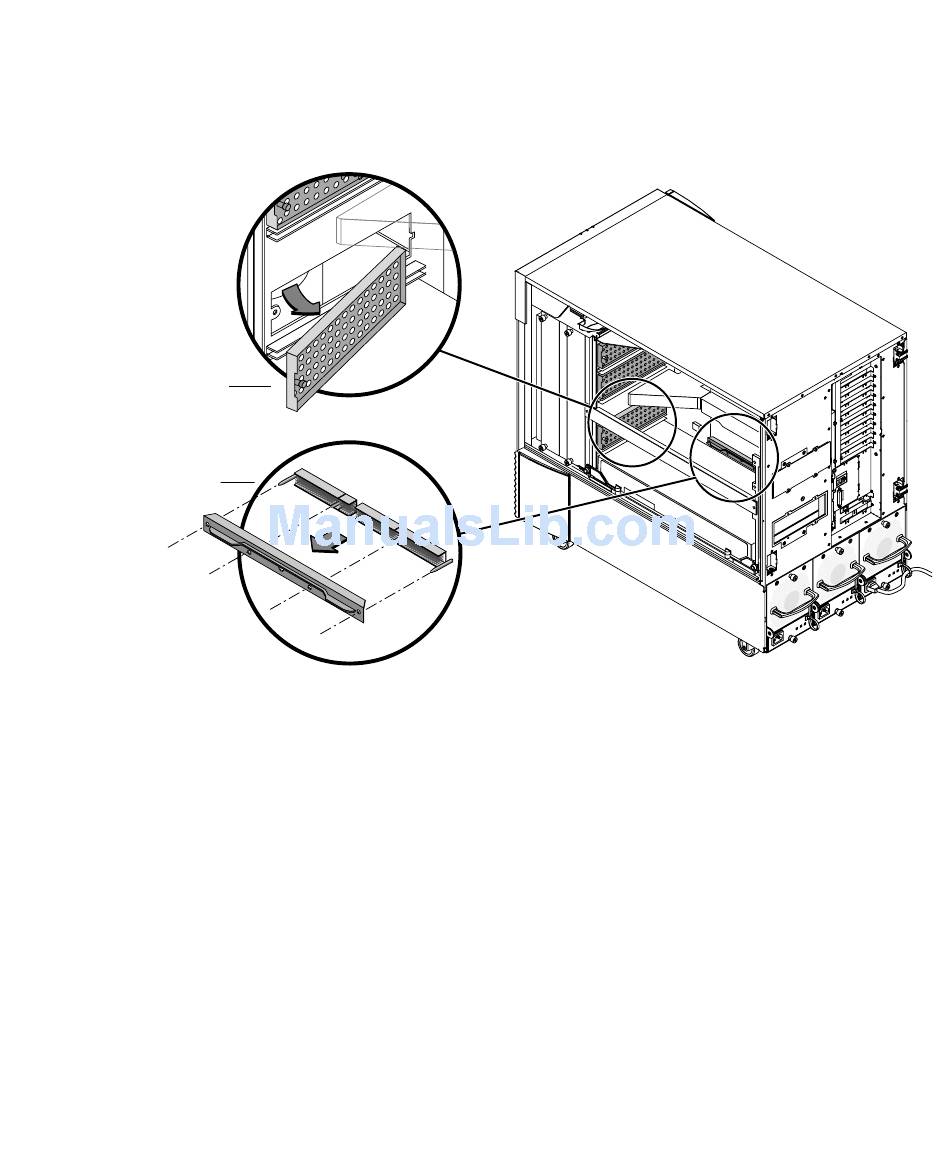

Removing the Fire V880z Motherboard Bus Slot Cover From Slot B
Chapter 4 Installing the Sun XVR-4000 Graphics Accelerator Hardware
).
FIGURE 4-4
