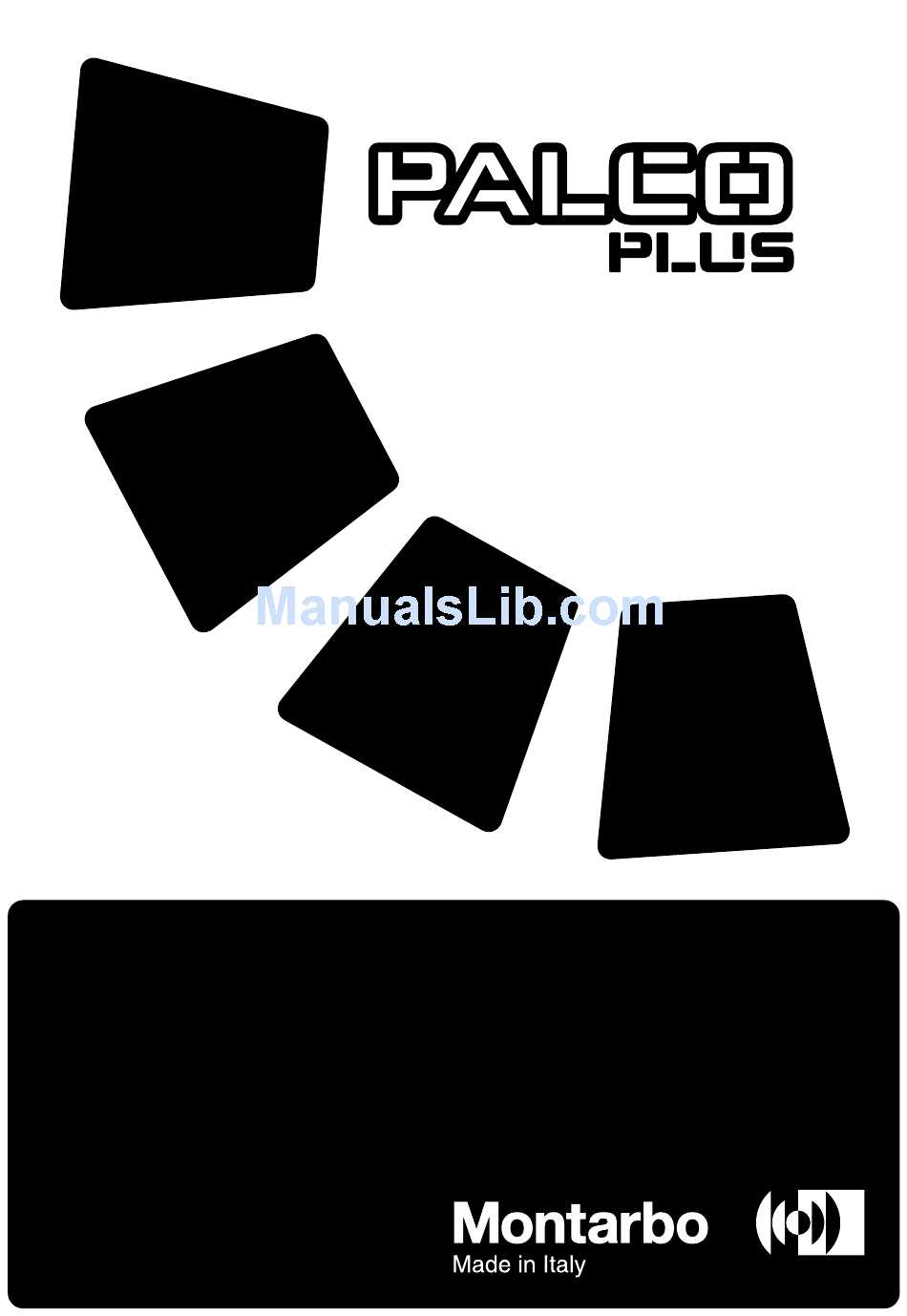

PROFESSIONAL ARRAY SYSTEM
manuale utente | user's manual
italiano | english
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PALCO PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Montarbo PALCO PLUS

Summary of Contents for Montarbo PALCO PLUS

  • Page 1 PROFESSIONAL ARRAY SYSTEM manuale utente | user’s manual italiano | english...

  • Page 2: Table Of Contents

    user’s manual user’s manual I ND EX 1 - AN INTRODUCTION TO "LINE ARRAY" SPEAKER SYSTEMS ...42 - 43 1.1 - What makes a lot of stacked speakers boxes a Line-Array ..42 1.2 - Reproduction of low frequencies ..........43 2 - SYSTEM COMPONENTS ..............44 - 47 2.1 - RA16 - loudspeaker ...............44 2.2 - BUMPER - model B1 ...............45 2.3 - BUMPER LIGHT - model B2 ............45...

  • Page 3: An Introduction To "Line Array" Speaker Systems

    user’s manual user’s manual 1 - AN INTRODUCTION TO "LINE ARRAY" SPEAKER SYSTEMS This document describes the operating principles of the PALCOPLUS line-array system, as well as its main applications and features. While not intended to be a complete technical essay about line-array systems, this chapter will provide a brief summary of the basic theory of operation and of the benefits of line array systems.

  • Page 4: Reproduction Of Low Frequencies

    user’s manual user’s manual The loudspeakers ("elements") that make up a "line-array" must meet a certain set of conditions for the effects to be coherent and acceptable over a wide frequency range: 1 - The distance between the acoustic centers of the various elements must be equal to or lower than half the wavelength corresponding to the maximum frequency to be reproduced.

  • Page 5: System Components

    user’s manual user’s manual 2 - SYSTEM COMPONENTS The PALCOPLUS line array is a system, made up of different components that must be used together for maximum results: - RA16 - enclosure - BUMPER (model B1 or B2) - RAB1815 - cardioid sub-bass unit - LM24 - digital controller (with RACon PC software) or, as an alternative, - PLM6800 'powered controller' 4-channel power amplifier - LD2.4 - USB interface...

  • Page 6: Bumper - Model B1

    user’s manual user’s manual 2.2 - BUMPER - model B1 (figure 9) Suspension frame (grid) made of high-resistance steel, certified for flying up to 16 RA16 units and that doubles as lower base for stacked installations of up to 6 RA16 units on stage surface or on an RAB1815 unit. If the BUMPER is stacked on an RAB1815, then the user must install suitable anti-slip feet (not supplied), screwed into the M16 inserts incorporated in the BUMPER.

  • Page 7: Rab1815 - Cardioid Sub-Bass

    user’s manual user’s manual 2.4 - RAB1815 - cardioid sub-bass unit (figure 12) Cardioid sub-bass, designed to extend the low frequency range of the PALCOPLUS system to 30 Hz. It employs two low-frequency drivers: an 18-inch (bass-reflex-loaded) and a 15-inch (horn-loaded), both featuring a 4-inch, long-excursion voice coil, a dual-spider and a super-ventilated neodymium magnet.

  • Page 8: Lm24 - Digital Controller

    user’s manual user’s manual 2.5 - LM24 - digital controller (figure 15) Thanks to it’s "state-of-the-art" DSP and A/D and D/A converters, this unit will drive the system’s power amplifiers; operating simultaneously as a cross-over, equalizer and limiter to optimize the system's response. It may be used in a free-standing mode, utilizing the front panel's LCD display and keyboard to operate on factory pre-sets with adjustable Figure 15.

  • Page 9: Rigging The System

    The loading capacity of the suspension accessories supplied by Montarbo have been certified by an external structural design consultant. A partial copy of the certification document is enclosed in the appendix. The compete document, in it's original form, is available at the Montarbo main offices. english...

  • Page 10: Safety Standards And Regulations

    Do not fly enclosures from unsafe structures. Consult a certified professional if needed. All flying accessories that are NOT supplied by Montarbo are the user’s responsibility. Use at your own risk. english...

  • Page 11: Setting-Up And Assembling The Array

    To simplify the operation, the two phases may be carried out simultaneously. The suspension accessories supplied by Montarbo are suitable for rigging: • up to 8 RA16 speakers with a B2 BUMPER • up to 8 RA16 speakers with a B1 BUMPER, when using a single suspension point •...
  • Page 12 user’s manual user’s manual 3) Join all the speakers, using only the front plate holes, using two pins per speaker (figure 18.3). Figure 18.3 4) Remove the two pins that retain the front plates of the BUMPER in the transport position. Rotate the plates into the working position (horizontal) and fasten them with the two pins removed before (figure 18.4).
  • Page 13 user’s manual user’s manual 6) Connect the rear side of the BUMPER to the rear of first speaker by means of 2 plates and 2 pins, using the attachment holes marked for 0° splay angle (figure 18.6). CAUTION: to fix the BUMPER, use the quick release pins supplied with it exclusively.
  • Page 14 user’s manual user’s manual The following images illustrate the correspondence between the holes on the rear plate and the holes on the RA16 suspension system, as a function of the desired splay angle. 0° 1° Splay angle: Splay angle: 2° 3°...
  • Page 15 user’s manual user’s manual 10° 11° Splay angle: Splay angle: 12° Splay angle: 8) Join together the backs of the speakers, starting from the top of the array: moving from the first to the second, the second with the third, and so on to the last one, always using 4 pins and 2 plates, and setting the desired splay angles.
  • Page 16 Check the tilt angle using a clinometer. Please remember that the suspension accessories supplied by Montarbo are suitable for rigging: • up to 8 RA16 units with a B2 BUMPER using a single suspension point (figure 23) •...

  • Page 17: System Wiring

    user’s manual user’s manual 5 - SYSTEM WIRING Due to the low impedance of the speakers and the high power levels involved, it is necessary to use cables with adequate copper section. For a simpler approach, we recommend the use of 4-conductor cables wired ®...
  • Page 18 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - standard configuration (RA16 + RAB1815 A Flw) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 RA16 + RAB1815 A PalcoPlus mono disabled RA16 HF RA16 LF RAB1815 RAB1815...
  • Page 19 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - small configuration (RA16 + RAB1815 A Stk) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 RA16 + RAB1815 A PalcoPlus mono disabled RA16 HF RA16 LF RAB1815 RAB1815...
  • Page 20 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - stereo configuration (RA16 + RA16 A&B) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 RA16 + RA16 A&B RA16 L Channel R Channel RA16 HF RA16 LF RA16 HF RA16 LF...
  • Page 21 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - split RA16 array configuration (RA16 Ch4) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 RA16 Ch4 RA16 mono disattivato RA16 HF RA16 LF RA16 HF RA16 LF split array (3 couples)
  • Page 22 18"+ SPEAKON 3+ 18"+ SPEAKON 3+ 18"- SPEAKON 3- 18"- SPEAKON 3- 15"+ SPEAKON 4+ 15"+ SPEAKON 4+ 15"- SPEAKON 4- 15"- SPEAKON 4- RAB1815 RAB1815 18” 18” 15” 15” MADE IN ITALY MADE IN ITALY Montarbo Montarbo english english...
  • Page 23 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - inputs A & B (PalcoPlus in A&B) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 PalcoPlus in A&B PalcoPlus HF input LF input RA16 HF RA16 LF RAB1815 RAB1815...
  • Page 24 user’s manual user’s manual PALCOPLUS wiring with LM24 controller - small configuration, inputs A & B (MiniPalco+ in A&B) Name Description Input A Input B Output 1 Output 2 Output 3 Output 4 MiniPalco+ in A&B PalcoPlus HF input LF input RA16 HF RA16 LF RAB1815...
  • Page 25 user’s manual user’s manual PALCOPLUS wiring with PLM6800 power controller - standard configuration (RA16 + RAB1815 A Flw) Name Description PLM6800 n. 1 Input A Input B Ch 1 Ch 2 Ch 3 Ch 4 RA16 + RAB1815 A Standard Mono Disabled RA16 HF...
  • Page 26 user’s manual user’s manual PALCOPLUS wiring with PLM6800 power controller - small configuration (RA16 + RAB1815 A Stk) Name Description Input A Input B Ch 1 Ch 2 Ch 3 Ch 4 RA16 + RAB1815 A PalcoPlus Mono Disabled RA16 HF RA16 LF RAB1815 RAB1815...
  • Page 27 user’s manual user’s manual PALCOPLUS wiring with PLM6800 power controller - RA16 stereo configuration (RA16 + RA16 A&B) Name Description Input A Input B Ch 1 Ch 2 Ch 3 Ch 4 RA16 + RA16 A&B RA16 Ch L Ch R RA16 HF RA16 LF RA16 HF...
  • Page 28 user’s manual user’s manual PALCOPLUS wiring with PLM6800 power controller - split RA16 configuration (RA16 4Ch in A) Name Description Input A Input B Ch 1 Ch 2 Ch 3 Ch 4 RA16 4Ch in A RA16 Mono Disabled RA16 HF RA16 LF RA16 HF RA16 LF...
  • Page 29 Type 2 cable MIXER output RAB1815 RAB1815 S U B W O O F E R S Y S T E M O F E R 18” 18” 15” 15” MADE IN ITALY MADE IN ITALY Montarbo Montarbo english english...

  • Page 30: Power Amplifiers Selection

    user’s manual user’s manual 6 - POWER AMPLIFIER SELECTION When selecting a power amplifier, don't go for "just enough power". An underpowered amplifier will provide no performance advantages, not even in terms of reliability (indeed, loudspeakers are more prone to failure when driven by an underpowered amplifier), and the dynamics of the whole system may be compromised.

  • Page 31: Plm6800 - 4-Channel Power Amplifier With Digital Loudspeaker Management

    user’s manual user’s manual Two-ohm operation. Many professional power amplifiers may operate on very low loads and some of them are specified for continuous operation on 2-ohm loads. It would therefore seem possible to employ one of these "low-impedance- capable" amplifiers to drive two parallel-connected RAB1815 subwoofers (one channel for the two 18", the other for the two 15"), or 4 parallel- connected RA16 enclosures (one channel for the four LF sections, the other for the four HF sections).

  • Page 32: Ease Focus Aiming Software

    user’s manual user’s manual 7 - EASE Focus AIMING SOFTWARE This program has been developed by the SDA Company (Software Design Ahnert GmbH) and the supplied version has been customized for the PALCOPLUS system, whose acoustical and mechanical parameters are pre-loaded.
  • Page 33 user’s manual user’s manual - Aiming and color mapping display - Zoomed rigging display - Extended report for printing - Levels over audience areas - COM and tilt angle calculation for selected pinpoint - Presets for audience areas and array setup - English and German language versions - SPL display in 1/3rd octaves,...

  • Page 34: Palcoplus System Technical Data

    user’s manual user’s manual 8 - PALCOPLuS SYSTEM TECHNICAL DATA RA16 - SPEAkER ENCLOSuRE Frequency Response 70 Hz ÷ 20 kHz Cross-over 800 Hz, 24 dB/oct Max Power Handling LF: 2 x 8" (2,5" voice coil) 800 watts @ 8 ohms HF: driver (3"...
  • Page 35 user’s manual user’s manual BuMPER - B1 Material FE360 structural steel Dimensions and Weight W 545 x H 90 x D 705 mm; 13 kg Max allowable load 320 kg (suspended) Load capacity max. 16 x RA16 flown (288 kg) 705 mm.
  • Page 36 If the product is used for business purposes and you want to discard it: please contact your Montarbo dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

  • Page 37: Appendix

    Via G. Di Vittorio n° 13 40057 Cadriano di Granarolo (BO) Oggetto: CALCOLO DELLA PORTATA DEGLI ELEMENTI DI CONNESSIONE MONTARBO IN MICROFUSIONE, ABBINATI A BUMPER E BUMPER PICCOLO Calcolatore delle strutture: Dott. Ing. FRANCO FAGGIOTTO Timbro e Firma Data: Forlì 04 Dicembre 2008 Dott.
  • Page 38 Should further information be desired, please contact us or our local distributor. Elettronica Montarbo srl can not be considered responsible for damages which may be caused to people and things when using this product Specifications, features and pictorial material are subject to change without prior notice.
