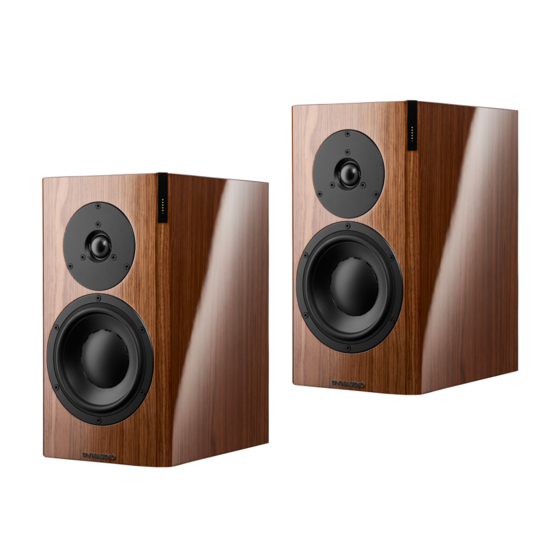

Focus XD
Owner's
Manual

Advertisement

Table of Contents
loading

Related Manuals for Dynaudio Focus XD

Summary of Contents for Dynaudio Focus XD

  • Page 1 Focus XD Owner's Manual...

  • Page 2: Thank You

    Each Focus XD loudspeaker is constructed by Dynaudio's master craftsmen in Denmark to these high standards of quality. To realize the highest sound quality from the Focus XD models, some areas should be addressed, as will be explored on the following pages.

  • Page 3: Table Of Contents

    We Thank You / Table Of Contents Table Of Contents Connecting the analog signal source Safety information Operating the loudspeakers About this guide without controlling the volume Expressions and symbols used Scope of delivery Adjusting the loudspeakers' sound Unpacking...
  • Page 4 Never open the loudspeaker housing. Do not operate defective loudspeakers and disconnect defective loudspeakers from the mains voltage. Please contact your Dynaudio distributor if you have any problems. Distributor addresses can be found in the Internet at www.dynaudio.com. Use the supplied power cable to connect the loudspeakers to the mains voltage. Make sure that the power supply cable is not damaged;...

  • Page 5: About This Guide

    Safety Instructions / About This Guide About Used expressions and symbols In this operating manual following signs and symbols are used: This ATTENTION: Indicates a hazard that could result in damage or destruction of the product. Guide The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

  • Page 6: Scope Of Delivery

    Owner's Manual Focus XD 1. 2 Focus XD loudspeakers (60 XD, 30 XD, or 20 XD) Scope of 2 Focus XD loudspeaker cloth covers (not shown) 2. 1 remote control delivery 3. 2 power cables (country-specific version) 1 first time setup manual (quick guide for installation, not shown).

  • Page 7: Setting Up

    Unpacking / Setting Up Spikes with sharp peaks The floor-standing Focus 400 XD and Focus 600 XD loudspeakers allow for set-up with spikes. The sharp peaks of the spikes may cause injuries and damage sensitive surfaces like hardwood flooring or tile.

  • Page 8: Floor-Standing Loudspeaker Set-Up

    Owner's Manual Focus XD Spike on floor-standing Focus XD. Floor-standing The floor-standing Focus XD loudspeaker features a special base construction, which offers loudspeaker set-up both an ideal performance and mechanical basis. The spikes screwed into the end of the feet on the base can be unscrewed and their height adjusted, to adapt to uneven floors.

  • Page 9: Selecting The Installation Location

    Left Right Selecting the installation The Focus XD loudspeakers do not require special positioning, though the quality of the location individual soundspeakers' sound is affected by the acoustic properties of the room. Since rooms are shaped uniquely, the positioning of the loudspeakers results in totally different behavior.

  • Page 10: Distance To Walls

    As a result, time-delayed reflections occur and add to the original music signal. Thus, when loudspeakers are positioned too close to walls, the sound quality can be restricted. Focus XD loudspeakers were developed to be placed free-standing, and therefore they reach their optimum performance when positioned as clear of any walls as possible.

  • Page 11: Loudspeaker Toe-In

    This positioning will typically improve imaging and is especially recommended by Dynaudio. However, you are free to select the precise position based on your personal listening habits.

  • Page 12: Connections And Control Elements

    Owner's Manual Focus XD Connections This section describes the connections and control elements for the components. Please contact your Dynaudio distributor and control if you have any problems with connection and start-up. elements Distributor addresses can be found on the Internet at dynaudio.com.
  • Page 13 Connection and Control Elements CONNECTIONS AND CONTROL ELEMENTS Digital connection. IN = input, OUT = output Digital audio Analog connection. IN = input, Input sensitivity = manual correction of the input sensitivity (+6/0/–6 dB) Analog audio USB port for firmware update...

  • Page 14: Remote Control

    Owner's Manual Focus XD Remote control The remote control can be used to turn the loudspeakers on and off, change the volume, switch between digital and analog input, switch the display on or off, and select a hub and its connected signal sources.

  • Page 15: Connecting The Loudspeakers

    This requires one digital cable and provides signal processing capabilities of 24 bits/96 kHz. • Both loudspeakers are operated wirelessly via a Dynaudio Hub or Connect box with signal processing of 24 bits/96kHz. Connecting both loudspeakers with cables 1.
  • Page 16 2. On the rear side of the housing, right or left loudspeaker. established by either a Dynaudio Hub or select the red, green, or blue 2. Operate the connected loudspeaker as Connect box to which the analog and/ zone.

  • Page 17: Connecting The Analog Signal Source

    Connecting The Analog Signal Source / Opereating The Loudspeaker Without Controlling The Volume Connecting the analog signal source. Connecting the analog Operating the loudspeakers signal source without controlling the volume The loudspeakers can also output signals You can also operate the loudspeakers from an analog signal source.

  • Page 18: Adjusting The Loudspeakers' Sound

    Owner's Manual Focus XD Adjusting the The sound of Focus XD loudspeakers can –– Neutral: free-standing loudspeaker be adjusted by increasing or lowering high (no change to sound). loudspeakers' and low frequencies. Each loudspeaker –– Wall: if placed near a wall.

  • Page 19: Connecting The Voltage Supply

    Adjusting The Loudspeaker's Sound / Connecting The Voltage Supply Connecting Use the supplied power cable to To switch a loudspeaker out of connect the loudspeakers to the mains operation to standby mode: the voltage voltage and switch it on using the...

  • Page 20: Selecting Inputs On The Loudspeakers

    Disabling/Enabling Autosense Press HUB A, B, or C on the remote control. The chosen Hub or Connect In normal operation, the Focus XD will is selected as the signal source. go to stand-by if it does not sense an incoming signal. Hold the ”Direct In”...

  • Page 21: Display

    Display / Display Meanings Display The display on the top edge of the housing indicates the operational state of the loudspeakers and system using LEDs with various colors and flash functions. The display can be switched on or off with the button on the remote control.
  • Page 22 Owner's Manual Focus XD LED DISPLAY MEANINGS Hub or Connect connection The bottom LED is flashing red. There is no active Hub or Connect, or no connection to a Hub or Connect possible Switch-on process LEDs are illuminated one by one.
  • Page 23 Display Meanings LED DISPLAY MEANINGS Displaying the selected Hub or Connect One of the three LEDs flashes. LED 1 = HUB A LED 2 = HUB B LED 3 = HUB C Displaying the input source One of the four LEDs flashes.

  • Page 24: Firmware Update

    Owner's Manual Focus XD Display Meanings LED DISPLAY MEANINGS Volume, mute A number of white LEDs are illuminated. The number of LEDs indicates the selected volume. The first LED flashes. The loudspeaker is muted. Firmware update The white LEDs light in order.

  • Page 25: Technical Data

    Technical Data LOUDSPEAKERS FOCUS 20 XD FOCUS 30 XD FOCUS 60 XD Frequency range (± 3 dB) 39 Hz – 24 kHz 29 Hz – 24 kHz 18 Hz – 24 kHz Power consumption during operation 18 – 200 W 18 –...

  • Page 26: Care & Maintenance

    All materials used by Dynaudio are Use a soft dry or slightly damp cloth integrated with exceptional care. By when cleaning the cabinet and other taking care of your loudspeakers, you will plain parts.

  • Page 27: Warranty

    Dynaudio dealer. Malfunctions You can ask your Dynaudio distributor for assistance at any time or contact the Dynaudio helpline at info@dynaudio.com. Further information can also be found on the Focus XD website at focusxd.dynaudio.com.
  • Page 28 Focus XD Designed, engineered and assembled in Denmark Dynaudio A/S 8660 Skanderborg Denmark www.dynaudio.com Owner’s Manual Focus XD, version 12/16, item no. 4553031B. All text and image copyrights reserved. Subject to change without notice.
