BM 6A mkII
U U s s e e r r s s m m a a n n u u a a l l

Advertisement

Table of Contents
loading

Related Manuals for Dynaudio BM 6A mkII

Summary of Contents for Dynaudio BM 6A mkII

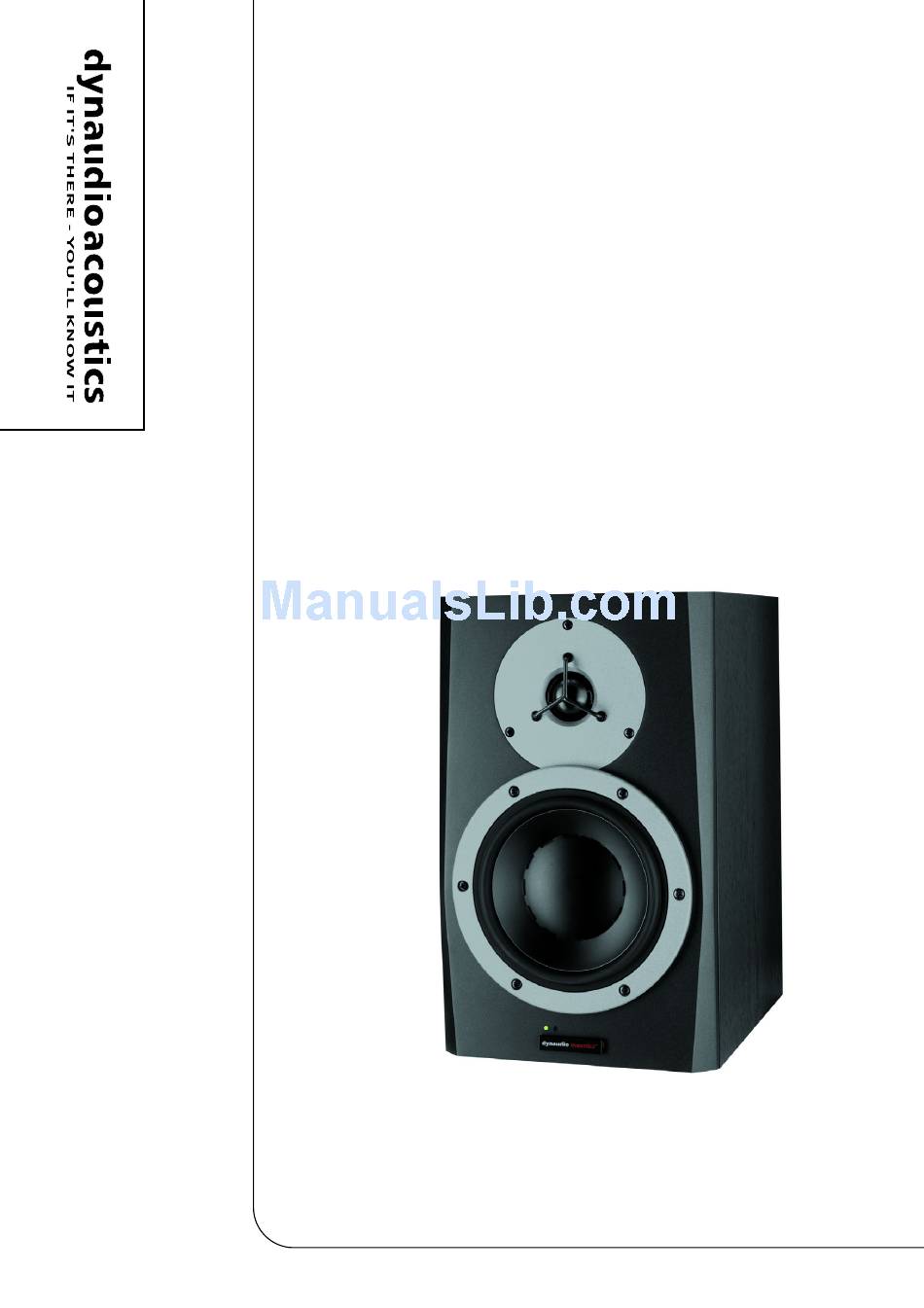

  • Page 1 BM 6A mkII U U s s e e r r s s m m a a n n u u a a l l...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The lightning flash with an arrowhead The exclamation point within an symbol within an equilateral triangle, is equilateral triangle is intended to alert intended to alert the user to the the user to the presence of important presence of uninsulated "dangerous volt- operating and maintenance (servicing) age"...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Important Safety Instructions & Certificate of conformity ... .a Table of Contents ....3 Introduction .

  • Page 6: Introduction

    It is most important, however, that you take a few minutes at this early stage of your BM 6A mkII’s life, to read this manual. It contains essential information to make you get the best from your new monitors.

  • Page 7: Rear Panel - Overview

    OVERVIEW - REAR PANEL Correct setup and connections is essential to achieve optimal performance from your monitors. Please follow the instructions on the following pages. 1. AC power Input and fuse 5. Level trim 6. LF - Low filter setting 2.

  • Page 8: Setting Up

    Before switching on, make sure Mains Voltage Use this switch to match the sensitivity of the matches your areas Mains Voltage specification. BM 6A mkII monitor to your source. Replace fuse only with the fuse-type marked on the rear-panel label.

  • Page 9: Indicators

    Indicators Positioning On the front you will find 2 diodes. These are The BM 6A mkII is designed as a near to mid- positioned just above the Dynaudio Logo. field monitor and can be equally well used in both stereo and surround setups. Optimal performance is achieved when positioned 1-3 meters from the listener.

  • Page 10: Miscellaneous

    Tel: +45 87427000 Care Components of the highest quality is used in your BM 6A mkII. This assures years of trouble free operation. Following precautions should still be made though. Avoid running the system into severe clipping.

  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS System Two-way Active Nearfield Monitor Frequency Response (+/- 3 dB) 40Hz - 21kHz Input level for 85 dB SPL @1m -14dBu RMS @ 0dB setting Input Impedance 65kOhm each branch Power consumption Idle: 15W / Max: 130W Amplifier power Tweeter: 50W / Woofer: 100W Bass Principle Bass reflex...
