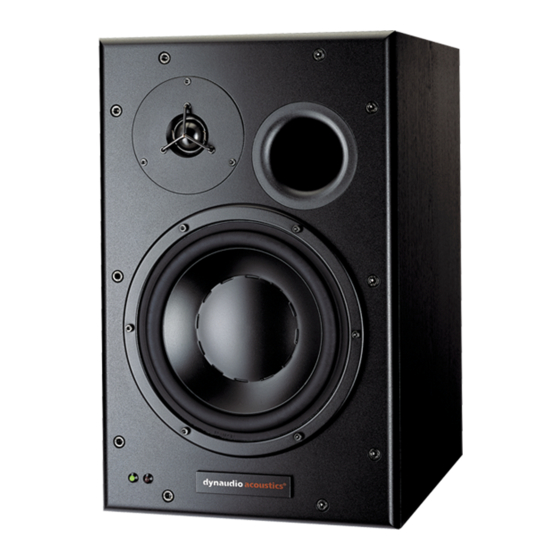

Introduction Congratulations on your purchase of the Dynaudio BM15A monitor. With the right care and attention it will give you many years of trouble free audio reproduction. It is most important, however, that you take a few minutes at this early stage in your BM15A’s life to read the safety instructions. They contain essential information to enable you to get the best from your monitors.
Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warning. 4. Follow all instructions 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. 8.
This monitor can be used in a horizontal orientation – i.e. lying on its sides. However, the acoustic dispersion has been optimized for vertical use. Also the heatsink will provide improved cooling when used vertically. In any situation ensure that there is adequate space for ventilation around the heatsink. BM User manual...
Operation Controls Level switch This sets the input sensitivity of the unit. The +4 position is intended for professional use and means that full power is reached with an input level of +4dBm (balanced). The -10 position is intended for semi-professional or domestic use and means that full power is reached with an input level of -10dBm (unbalanced).
Page 8
This will disconnect the drive units from the amplifiers and change the power LED to its red/fault condition. In addition the HF amplifier has an optical limiter in circuit which prevents excessive long term power reaching the tweeter whilst allowing transients to pass uncompressed. BM User manual...
Miscellaneous Troubleshooting If the speaker stops working and the power LED turns red (fault condition) switch the mains power off and leave it for a moment. If the unit fails to operate again when you switch back on the fault may be due to overheating, switch off again and allow it to fully cool down before powering up.
Page 10
Service There are no user serviceable parts inside the BM15A so consult your dealer if service is required or contact one of the addresses below. Dynaudio A/S Sverigesvej 15 8660 Skanderborg Denmark BM User manual...
Warranty This product is guaranteed against defects in materials and workmanship for 1 year from date of purchase. This warranty is void if the unit has been tampered with or modified in any way, or in our opinion has not been used in accordance with the instructions above.
Variable HF and LF trim, Input sensitivity 455 x 290 x 387 millimeters (H x W x D) Dimensions (Allow 35 mm for rear connectors clearance) Free standing near/mid-field, desktop mounting. Positioning Rigid high performance stands recommended. Accessories Power cable supplied BM User manual...
