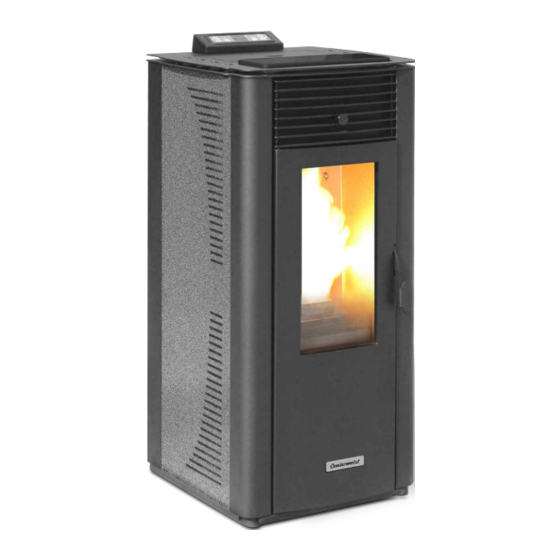

Centrometal CentroPelet ZV14 Technical Instructions
Hide thumbs
Also See for CentroPelet ZV14:
- Technical instructions (12 pages) ,
- Technical instructions (23 pages)
Related Manuals for Centrometal CentroPelet ZV14
Summary of Contents for Centrometal CentroPelet ZV14

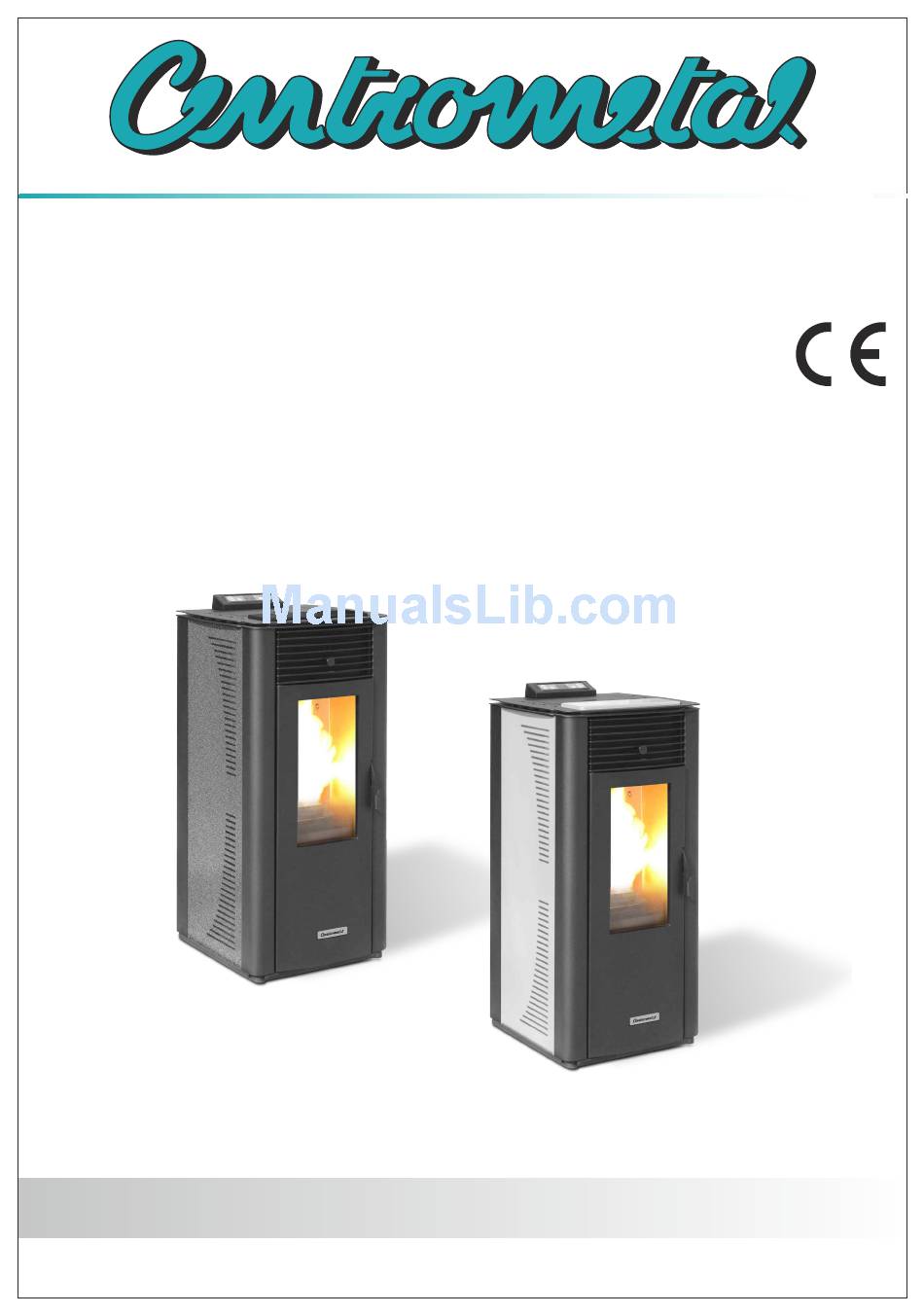

- Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS for installation, use and maintenance of pellet stove CentroPelet ZV14 TUZS-4-2014-ENG...
- Page 2 Carefully read the precautions and follow the procedures correctly. WARNING! Do not try to install the stove; always contact authorized and trained personnel. - In case of breakage or poor functioning always contact the Authorized Assistance Centre; any attempt to remove parts or perform maintenance on the device can expose the user to electrical shock danger.
-
Page 3: Installation
Norms and conformity declarations Legislation Responsibility • Our company declares that the stove The manufacturer declines every direct or conforms to the following norms for EC indirect, civil or penal responsibility due to: European Directive marking. • Poor maintenance. • 2006/42 EC (machines directive). •... - Page 4 Installation • Every device must have its own flue with a products of combustion is not inhibited by diameter equal to or larger than the stove’s wind from any quarter or strength (wind- smoke clearing tube and a height not less proof chimney cap).
- Page 5 Sizing Smoke discharge The discharge system must be for the stove Pict.3: internal flue installation only (it is not permissible to discharge into flues in common with other devices). The smoke discharge takes place through the 8 cm diameter tube placed at the back. A “T”...
- Page 6 Sizing External air intake • The air flow can also be acquired from a The stove must be furnished with the air neces- locale adjacent to where the stove is instal- sary to guarantee the regular functioning of the led as long as that flow can freely cross the combustion and an environmental well being.
- Page 7 Positioning • A grounded electrical connection is obliga- The stove is furnished with an electrical cable tory (if the cable issued with the stove is not to connect to a 230V 50Hz socket, preferably long enough to reach the closet socket, use with a thermal-magnetic switch.
- Page 8 Positioning Minimum aeration for comburant air Fig. 6: distance from walls intake Combustion air inlet The combustion air must be taken from the outdoor ambience absolutely. 20 cm. For a correct and safe placement of the air Walls intake all the measures and prescriptions (Pict.
- Page 9 2. ROOM THERMOSTAT (optional) The pcb has been arranged for an external thermostat on the connector CN7 and in par- ticular on the clamps identified with the words "TERM". Please join the following procedure to check the room temperature using a thermostat: •...
- Page 10 Maintenance performed by the A.A.C. • Clean, inspect and disincrust the lighting Operations to be performed by the resistor compartment, replacing it if neces- Authorized Assistance Centre every sea- sary. son before the lighting. • Clean/check the synoptic panel. • A general cleaning inside and outside. •...
- Page 11 Notes...
- Page 12 Notes Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
