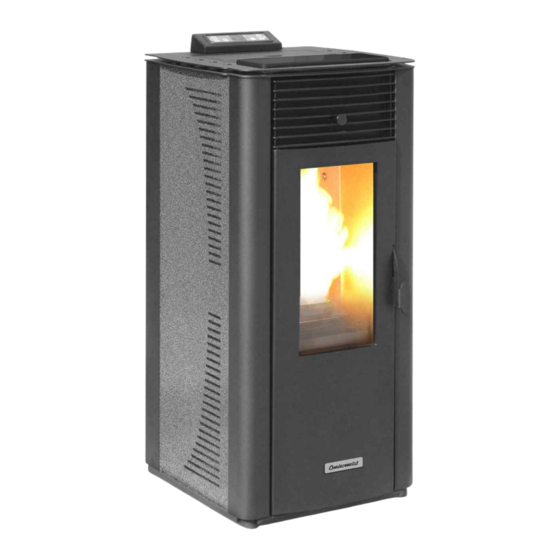

HEATING TECHNIQUE
Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611
TECHNICAL INSTRUCTIONS
for regulation, use and maintenance
of pellet stove
CentroPelet ZV14
TUZS-4-2014-ENG

Advertisement

loading
Need help?

Need help?

Do you have a question about the CentroPelet ZV14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Centrometal CentroPelet ZV14

Summary of Contents for Centrometal CentroPelet ZV14

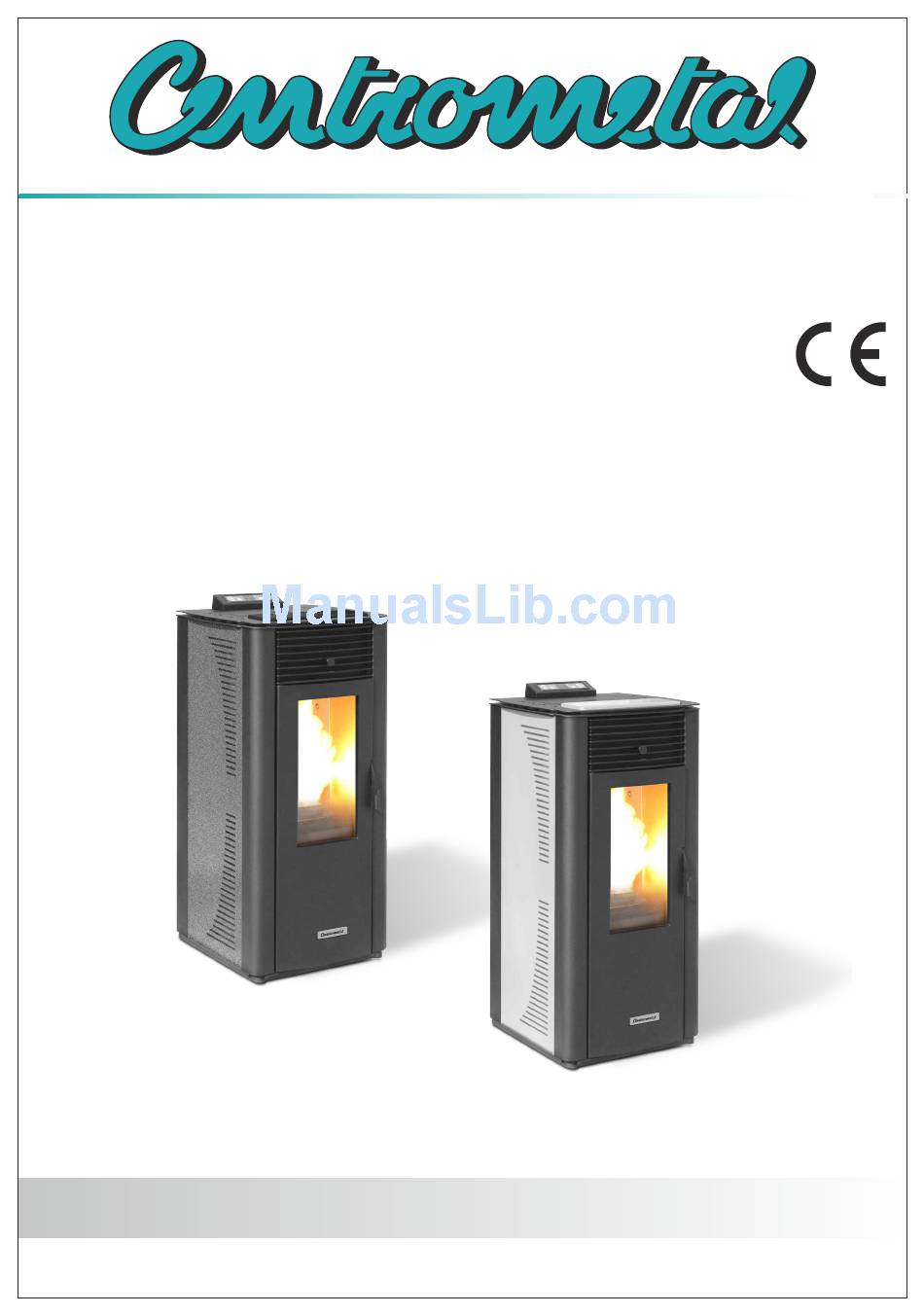

  • Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS for regulation, use and maintenance of pellet stove CentroPelet ZV14 TUZS-4-2014-ENG...
  • Page 2 Dear Customer, Congratulations on your purchasing an pellet boiler stove! We would like to remind you that pellet boiler stoves are the most innovative heating solution generated by the most advanced technology, characterised by high-quality manufactu- ring as well as a simple and elegant design. Ideal for any type of room, these products contribute to comfort thanks to the cosy heat that only flames can radiate.

  • Page 3: Technical Specification

    Technical Specification Pict. 1 Aproximative dimensions (mm). Weight approx. Kg 130 Flue pipe diameter 80 mm Air intake pipe diameter 50 mm 3/4” Power Supply 220V - 50Hz Min. electrical input 90 W Max. electrical input 350 W only start phase Hopper capacity 17 kg...

  • Page 4: Symbol Description

    Pellet Boiler stove start up Preliminary checks CAUTION! The brazier should be cleaned before each starting. Before switching on the pellet stove, make sure that the pel- let hopper is full, the combustion chamber is clean, the glass door is closed, the power supply plug is connected and the Control Panel (Pict.
  • Page 5 REMARKS: Procedure to turn off the pellet boiler stove In case of repeated ignition lock-outs, while pellets are fed regularly, there may be a problem caused by a failing elec- tric glow plug. In this case, while you wait for a technician, Turn off the pellet boiler stove by the pellet boiler stove can be manually started by using so- pressing button...
  • Page 6 Heating timer-thermostat The meaning of the user parameters are explained in detail The heating timer-thermostat function is used to program below: the pellet boiler stove to automatically turn on and off within a period of one week. UT01 To access programming, hold down button for around Heating timer-thermostat enabling and disabling and three seconds, “UT01”...
  • Page 7 UT05 If the stove is controlled by an external thermostat, when Pellet boiler stove first start-up time adjustment the thermostat reaches the preset temperature, This parameter indicates the time at which the pellet boiler will be shown on the pellet boiler stove display. stove will be started: use buttons to set the desired time, with 10-minute steps.

  • Page 8: Remote Control

    Remote Control The remote control (Pict. 3) s used to adjust water tempe- In the event of a working defect, the system informs the user about the type of failure occurred. The following table summarises the alarms, kind of problem To start the pellet boiler stove, press keys and possible solution: multaneously.
  • Page 9 Failure on electrical devices Failed light-up Smokes exhaust safety If the flame does not light up during the switching on or if A mechanical depressor checks the correct depression for the smokes temperature does not reach a suitable value in a proper smokes exhaust.
  • Page 10 Cleaning of the pellet boiler stove The pellet boiler stove requires an easy and detailed cleaning Every three or four burnt pellet’s bag: open the lower in order to grant always efficient performances and working. door and unscrew the two knobs holding the inspection While you are cleaning the inner parts of the stove, you can start up the smokes exhauster to avoid ash to discharge.
  • Page 11 Notes...
  • Page 12 Notes Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
