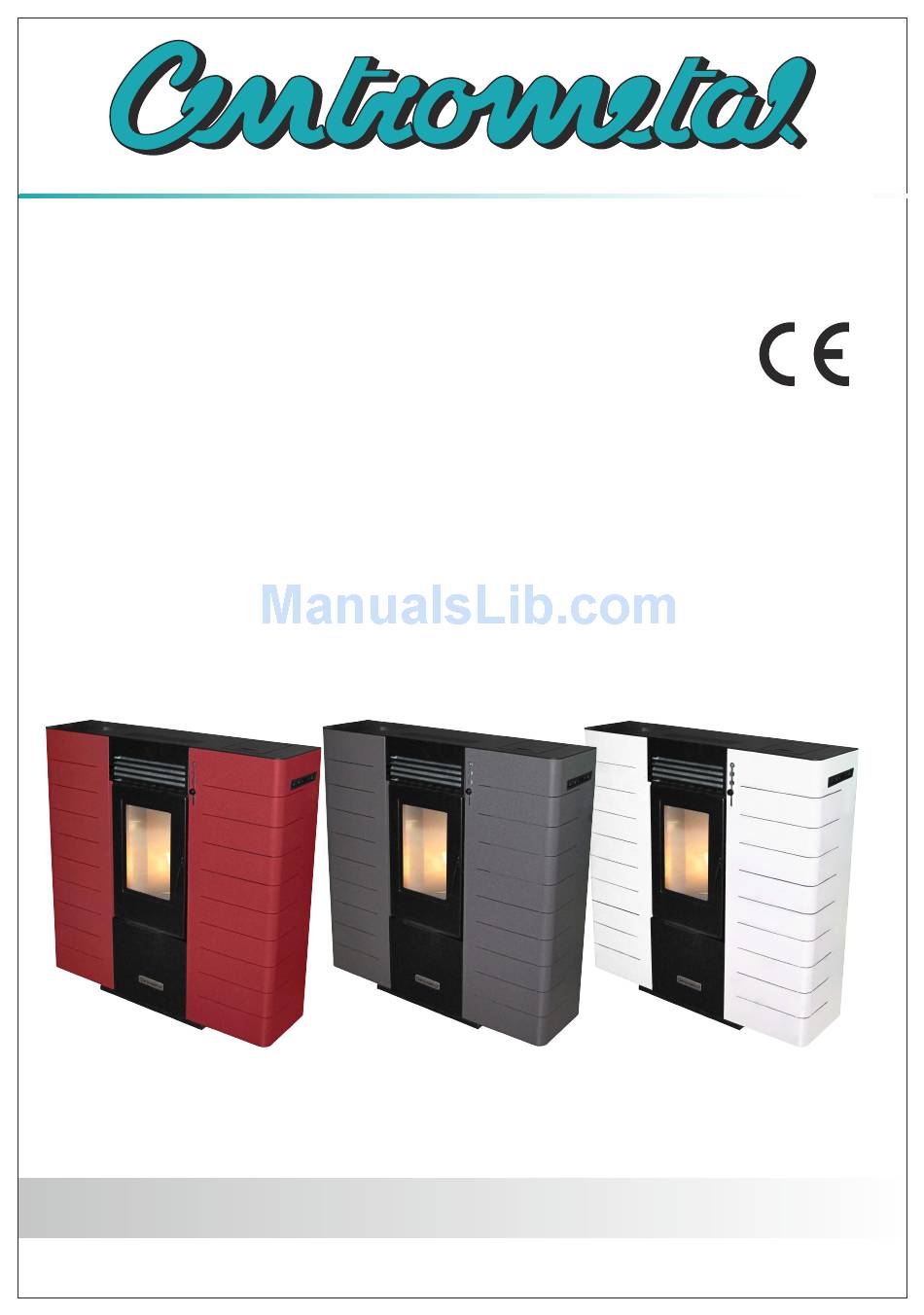

TECHNICAL INSTRUCTIONS
for installation, use and
maintenance of pellet stove
CentroPelet ZS10
TUZS10ENG-4-2014-HR
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Centrometal CentroPelet ZS10
Summary of Contents for Centrometal CentroPelet ZS10
- Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS for installation, use and maintenance of pellet stove CentroPelet ZS10 TUZS10ENG-4-2014-HR...
- Page 2 Carefully read the precautions and follow the procedures correctly. WARNING! Do not try to install the stove; Always contact authorized and trained personnel. - In case of breakage or poor functioning always contact the Authorized Assistance Centre; any attempt to remove parts or perform maintenance on the device can expose the user to electrical shock danger.
- Page 3 Norms and conformity declarations Legislation Responsibility • Our company declares that the stove The manufacturer declines every direct or conforms to the following norms for EC indirect, civil or penal responsibility due to: European Directive marking. • Poor maintenance. • 89/336 EC and 2004/108 EC (EMC directive) •...
- Page 4 Installation • Every device must have its own flue with a and so that the discharge of the products of diameter equal to or larger than the stove’s combustion is not inhibited by wind from smoke clearing tube and a height not less any quarter or strength (wind-proof chimney than that declared.
- Page 5 Sizing Smoke discharge The discharge system must be for the stove only (it is not permissible to discharge into flues in common with other devices). The smoke discharge takes place through the 8 cm diameter tube placed at the back. A “T”...
- Page 6 Sizing Sizing of the pellet stove 402,5 402,5 Note di Rev. 25/06/2013 AMG S.P.A. Cliente UNI ISO 2768 2400489 Indice Rev. Data Rev. Classe di tolleranza Scostamenti limiti per campi di dimensioni nominali secondo 131746 Desc. Stufa Pellet DIANDRA 60 Denominazione da 0.5 oltre 3...
- Page 7 Positioning Fire Safety Distance The stove is furnished with an electrical cable to connect to a 230V 50Hz socket, preferably with a thermal-magnetic switch. Variations in The stove must be installed respecting the tension of more than 10% can compromise following safety conditions: the stove (if not already present, an adequate •...
- Page 8 Positioning Fig. 7: distance from walls Minimum aeration for comburant air intake The combustion air must be taken from the outdoor ambience absolutely. 5 cm For a correct and safe placement of the air intake all the measures and prescriptions (Fig. 7) must be respected.
- Page 9 Lighting • Before lighting the stove, carefully read the use and maintenance manual. • Remove from the tank all the tools that were inserted during packaging and be sure that the tank is free of eventual extraneous bodies. • Unroll the environmental probe placed on the rear of the stove, without placing it on the heated parts of the stove.
- Page 10 Maintenance performed by the A.A.C. Operations performed Authorized Assistance Centre every season ATTENTION! before the lighting. During the first lighting it is necessary to ventilate the environment well, since • A general cleaning inside and outside. during the first hours of operation •...
- Page 11 Notes...
- Page 12 Notes Company shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification. HEATING TECHNIQUE...
