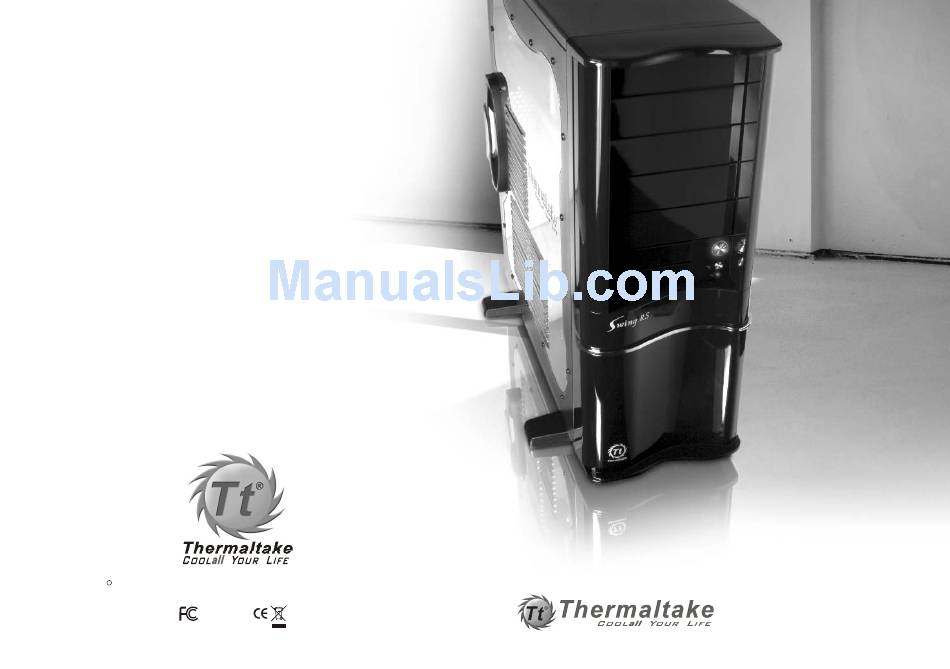

- Page 1 SwingRS 100 VF8000 Series SwingRS 100 VF8000 Series 2007 Thermaltake Technology Co., Ltd. All Rights Reserved. 2007.04 All other registered trademarks belong to their respective companies. www.thermaltake.com User Manual Tested To Comply With FCC Standards FOR HOME OR OFFICE USE...
-
Page 2: Table Of Contents
SwingRS 100 VF8000 Series Chapter 1. Product Introduction ontent Specification Chapter 1. Product Introduction Specification Chapter 2. Case Mechanical Operation How to open the side panel Transparent side panel Honeycomb see-through side panel How to install PSU 5.25" device installation VF8000BNS VF8000BWS Model... -
Page 3: How To Open The Side Panel
SwingRS 100 VF8000 Series Chapter 2. Case Mechanical Operation 2-1 How to open the side panel Transparent side panel Honeycomb see-through side panel To remove the side panel, please remove upper and To remove the side panel, bottom thumb screws on please remove upper and the back of the case. -
Page 4: How To Install Psu
SwingRS 100 VF8000 Series 2-2 How to install PSU 2-3 5.25" device installation Open the front panel first. Place power supply unit in the right position. Remove the 5.25" drive bay plastic cover by pressing it at the bottom corner. Secure it by screws as shown. -
Page 5: Device Installation
SwingRS 100 VF8000 Series 2-4 HDD installation Press the clip on each side of the HDD tray and pull backward to take off the HDD tray. Mount drive rails to 5.25" device and fasten the Place HDD on the drive tray, device using screws. -
Page 6: Device Installation
SwingRS 100 VF8000 Series 2-5 3.5" device installation 2-6 Motherboard installation Remove thumb screws on the motherboard tray. Press the clip on each Unscrew the 3.5" side of the 3.5" tray metal cover. and pull backward to take off the 3.5" tray. Slide the motherboard Place the motherboard tray toward the drives... - Page 7 SwingRS 100 VF8000 Series 2-7 PCI slot usage 2-8 Front fan installation (optional) Take off the tool-free Remove the PCI bracket. Remove both side panels. kit as shown. Locate Graphic Card to Put back the tool-free Remove the front panel using a flat-head screwdriver . the motherboard kit to lock the Graphic through fixing it on the...
-
Page 8: Motherboard Installation
SwingRS 100 VF8000 Series Chapter.3 Motherboard & Leads Installation 3-1 Motherboard Installation Each motherboard has different standoff layout. It is highly suggested that you refer to your motherboard's manual when installing motherboard into the Case. The cases are applicable with Standard ATX, Micro ATX motherboards. -
Page 9: Case Led Connection
SwingRS 100 VF8000 Series 3-2 Case LED connection 3-3 USB 2.0 connection Please consult your motherboard manual to find out the section of "USB connection". On the front of the case, you can find some LEDs WHITE WHITE and switch leads (POWER SW*1, POWER LED*1, GREEN GREEN H.D.D. -
Page 10: Audio Connection
SwingRS 100 VF8000 Series Chapter4 RSI Cooler and Power Supply 3-5 Audio Connection RSI Cooler (Optional) - Please refer to the following illustration of Audio connector P/N : CL-P0441 and your motherboard user Designed for Intel Core 2 Duo Processor manual. -
Page 11: Rsi Power Supply (Optional)
- Super quiet and stable 12cm ball bearing fan. - Build-in Over Current Protection, Over Voltage protection, and Short-Circuit protection. - Safety : UL, CUL, CE, NEMKO, TUV+CB, BSMI, FCC certification. There are recommended products of Thermaltake PSU, please refer to http://www.thermaltake.com... -
Page 12: Swingrs
SwingRS 100 VF8000 Series MEMO MEMO...
