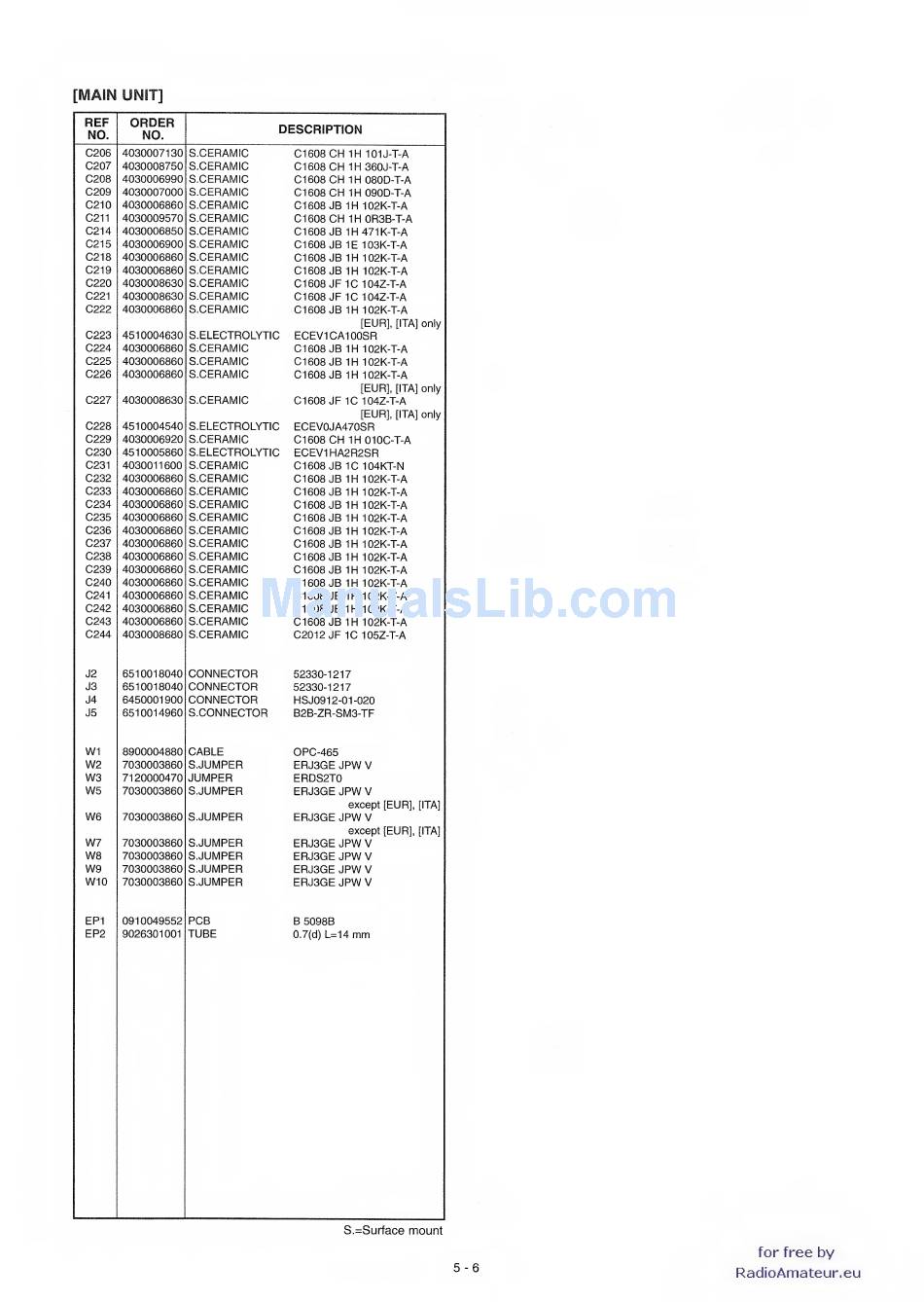

Icom IC-2100H Service Manual page 19

[MAIN
UNIT]
REF
NO.
ORDER
NO.
DESCRIPTION
C206 4030007130
S.CERAMfC
Cl 608
CH
1H
101J-T-A
C207 4030008750 S.CERAMIC
C1608
CH1H
360J-T-A
C208 4030006990 S.CERAMIC
C1608
CH
1H 080D-T-A
C209
4030007000 S.CERAMIC
Cl 608
CH
1H 090D-T-A
C210 4030006860 S.CERAMIC
C1608 JB 1H
102K-T-A
C211 4030009570
S.CERAMIC
C1608
CH
1H0R3B-T-A
C214 4030006850 S.CERAMIC
Cl 608 JB 1H471K-T-A
C215
4030006900
S.CERAMIC
C1608 JB IE
103K-T-A
C218
4030006860
S.CERAMIC
C1608 JB 1H
102K-T-A
C219 4030006860 S.CERAMIC
Cl 608 JB 1H
102K-T-A
C220
4030008630
S.CERAMIC
Cl 608 JF 1C
1042-T-A
C221 4030008630
S.CERAMIC
C1608 JF 1C
1042-T-A
C222 4030006860 S.CERAMIC
C1608 JB 1H
102K-T-A
[EUR], [ITA] only
C223 4510004630
S ELECTROLYTIC
ECEV1CA100SR
C224 4030006860 S.CERAMIC
C1608 JB 1H
102K-T-A
C225
4030006860
S.CERAMIC
C1608 JB 1H
102K-T-A
C226 4030006860
S.CERAMIC
C1608 JB
1H 102K-T-A
[EUR],
[ITA] only
C227
4030008630
S.CERAMIC
Cl 608 JF 1C
1042-T-A
[EUR],
[ITA]
only
C228 4510004540 S.ELECTROLYTIC ECEV0JA470SR
C229
4030006920
S.CERAMIC
Cl 608
CH
1H 010C-T-A
C230 4510005860 S.ELECTROLYTIC ECEV1HA2R2SR
C231
4030011600
S.CERAMIC
Cl 608 JB 1C 104KT-N
C232
4030006860
S.CERAMIC
Cl 608
JB 1H
102K-T-A
C233 4030006860 S.CERAMIC
Cl 608 JB 1H
102K-T-A
C234 4030006860 S.CERAMIC
Cl 608 JB 1H
102K-T-A
C235
4030006860
S.CERAMIC
C1608 JB 1H
102K-T-A
C236 4030006860 S.CERAMIC C1608 JB 1H
102K-T-A
C237 4030006860 S.CERAMIC
C1608 JB 1H
102K-T-A
C238 4030006860
S.CERAMIC
C1608 JB 1H
102K-T-A
C239 4030006860 S.CERAMIC C1608 JB 1H
102K-T-A
C240
4030006860
S.CERAMIC
Cl 608 JB 1H
102K-T-A
C241 4030006860
S.CERAMIC
C1608 JB 1H
102K-T-A
C242 4030006860 S.CERAMIC
Cl 608 JB 1H 102K-T-A
C243
4030006860
S.CERAMIC
C1608 JB 1H 102K-T-A
C244
4030008680 S.CERAMIC C2012 JF 1C
1052-T-A
J2
6510018040
CONNECTOR
52330-1217
J3
6510018040
CONNECTOR
52330-1217
J4 6450001900
CONNECTOR
HSJ091 2-01
-020
J5
6510014960
S.CONNECTOR
B2B-2R-SM3-TF
W1
8900004880
CABLE
OPC-465
W2
7030003860 S
jumper
ERJ3GE JPW V
W3
7120000470
JUMPER
ERDS2T0
W5
7030003860 S.JUMPER ERJ3GE
JPW
V
except [EUR],
[ITA]
W6
7030003860
S.JUMPER ERJ3GE JPW
V
except [EUR],
[ITA]
W7
7030003860 s
jumper
ERJ3GE JPW V
W8
7030003860
S.JUMPER
ERJ3GE
JPW
V
W9
7030003860 S.JUMPER ERJ3GE
JPW
V
W10
7030003860
S.JUMPER ERJ3GE JPW V
EP1 0910049552
PCB
B 5098B
EP2
9026301001
TUBE
0.7(d)
L=14mm
