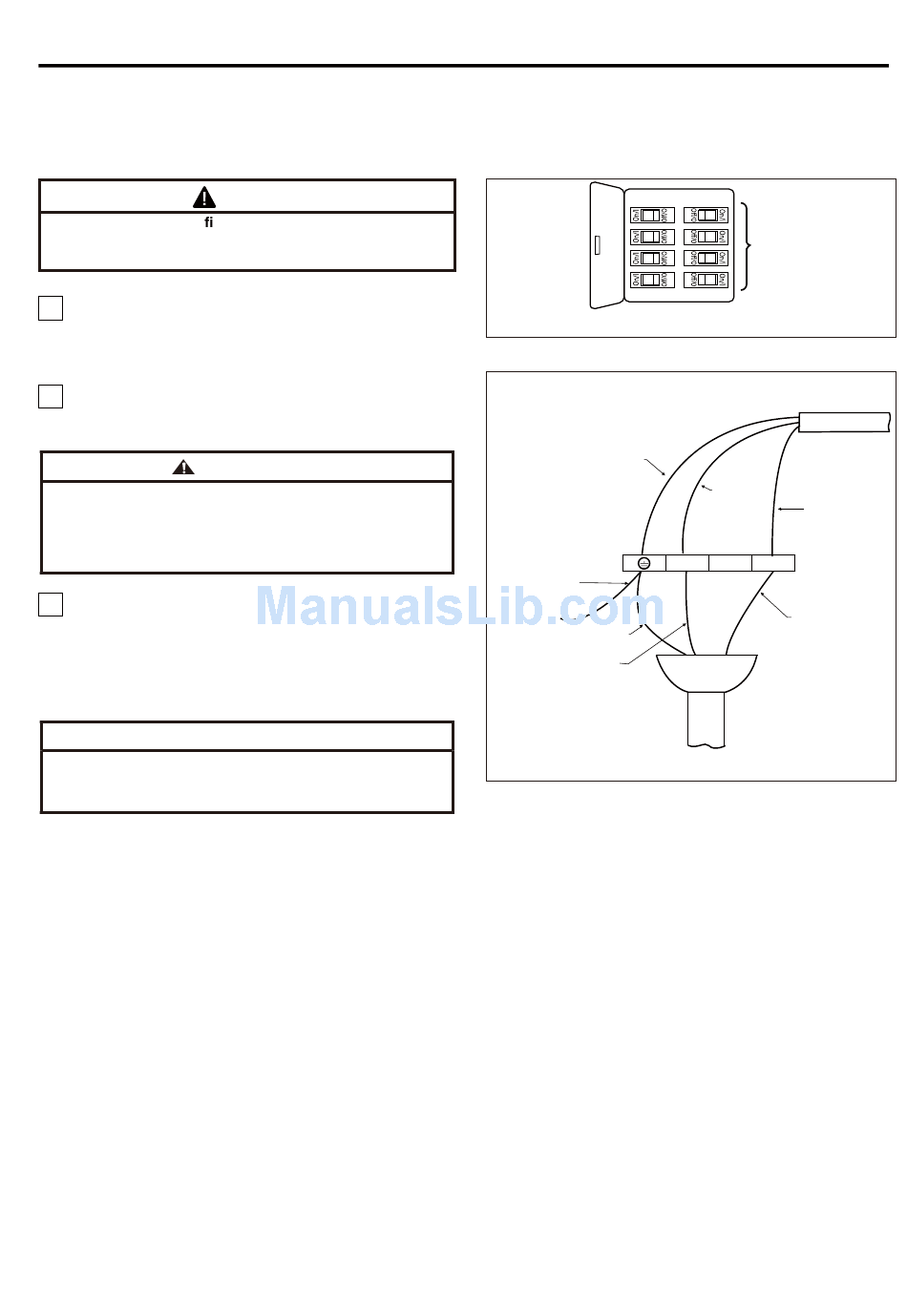

How To Wire Your Ceiling Fan - Fanimation The Odyn Owner's Manual

This ceiling fan must be installed by a licensed electrician.
To avoid possible re or shock, be sure electricity is
turned off at the main fuse box before wiring.
(Figure 1)
1. Securely connect the green/yellow earth wires from
the hanger ball and the hanger bracket and the supply
green/yellow earth wire to the terminal block as shown
in Figure 2.
2. Securely connect the blue fan motor wire and the
black supply neutral to the "N" terminal of the connec-
tor block as shown in Figure 2.
WARNING
Check to see that all connections are tight, including
earth, and that no bare wire is visible at the wire
connectors, except for the earth wire. Do not operate
fan until the blades are in place. Noise and motor
damage could result.
3. Securely connect the brown fan motor wire and the
red (Active) supply wire to the "L" terminal of the
connector block as shown in Figure 2. After
connections have been made, carefully push leads
into the recess making sure there is separation
between connectors.
IMPORTANT
Fan installation must be completed, including the
installation of the fan blades, before testing of the
controls.

How to Wire Your Ceiling Fan

WARNING
Grn/Yel Wire
(Earth)
Grn/Yel Wire
(Earth) from Hanger Bracket
Grn/Yel Wire
(Earth) from Fan
Blue Wire
(Neutral)
8
MAIN FUSE BOX
Figure 1
Supply Cable
Black Wire
(Neutral)
Red Wire
(Active)
Terminal Block
N L1 L
(on Hanger Bracket)
Brown Wire
(Motor Active)
Hanger Ball
Figure 2
