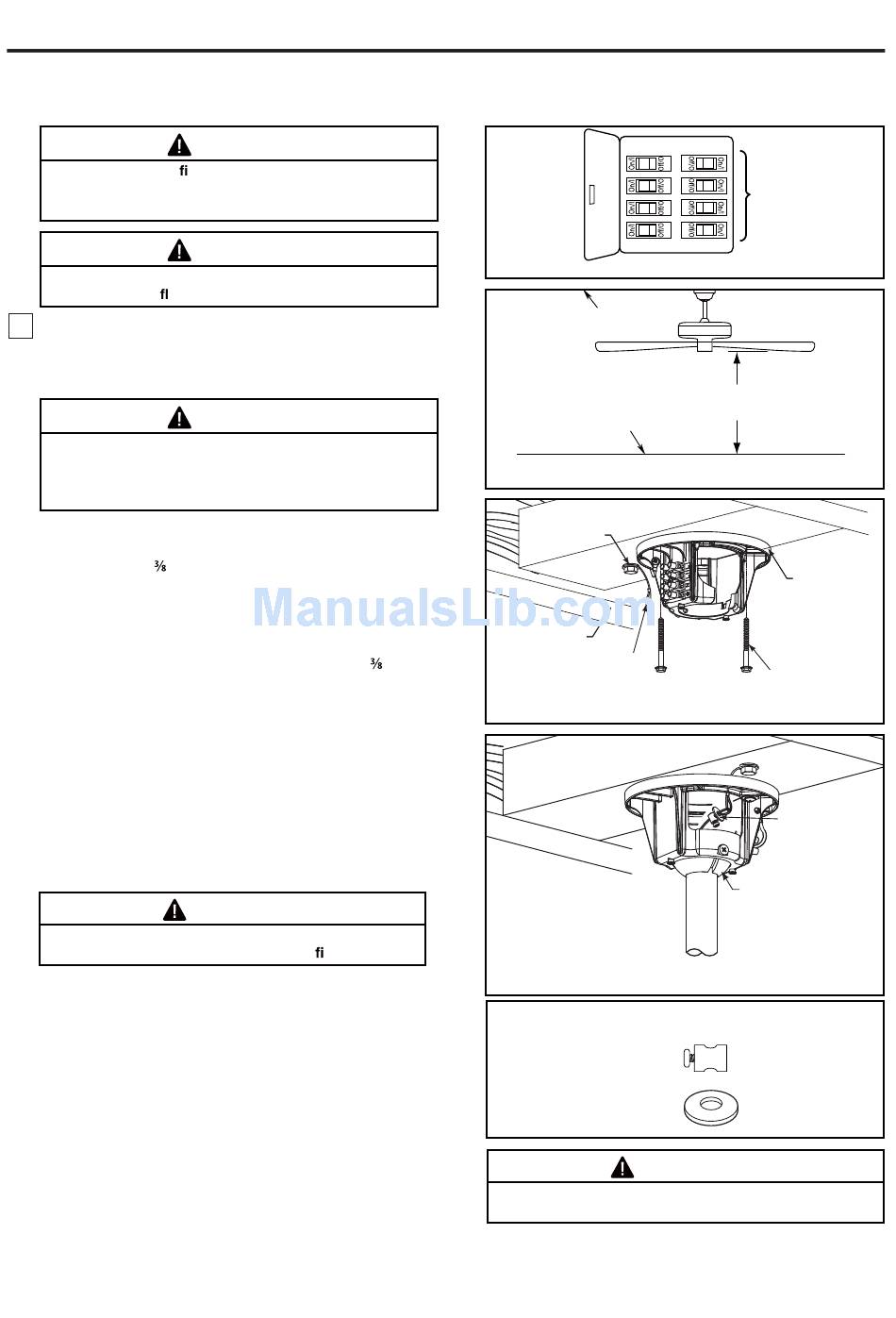

How To Hang This Ceiling Fan - Fanimation The Odyn Owner's Manual

WARNING
To avoid possible re or shock, be sure electricity is
turned off at the main fuse box before wiring.
(Figure 1)
WARNING
The fan must be hung with at least 2.1m of
clearance from oor to blades. (Figure 2)
1. Drill a hole in the ceiling board and batten for wiring.
Securely attach the hanger bracket to a timber batten
or other structural support using appropriate fasteners.
(Figure 3)
WARNING
The hanger bracket must be securely mounted and
capable of supporting at least 60 kg. If bracket and /or
timber batten are not securely attached, the fan could
wobble or fall.
2. Drill a ¼" pilot hole into the building structure to
prevent splitting or cracking with installation of the lag
bolt. Using the " x 2" lag bolt and flat washer, attach
safety cable to ceiling joist or wood structural member.
The lag bolt will pass through the flat washer, safety
cable loop, and into the building structure. (Figure 3)
NOTE: Ceiling support cable must be directly secured
to ceiling joist or structural member using the
bolt and flat washer. (Figure 3)
3. Make sure the electrical supply wires, including
the hanger bracket earth wire and safety cable
are pulled through the downrod, between the hanger
bracket so that electrical connections can be made later.
4. Carefully lift the fan and seat the downrod/hanger ball
assembly on the hanger bracket that was just attached to
the timber batten or structural member. Be sure the groove
in the ball is lined up with tab on the hanger bracket.
(Figure 4)
WARNING
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or re hazard.
5. Attach the safety cable to ceiling support cable. Slide
cable clamp and washer onto safety cable (from fan).
Place the end of cable through the loop of ceiling support
cable. Pull as much cable through loop as possible. Feed
end of cable into clamp hole and firmly tighten screw
(Figure 4).
How to Hang
" x 2" lag
This Ceiling Fan
3/8˝ x2 lag bolt
and flat washer
Timber Batten
Ceiling Support Cable
Note: Ceiling board and
wiring omitted for clarity.
Note: Ceiling board and
wiring omitted for clarity.
HARDWARE USED:
CEILING SUPPORT
CABLE CLAMP
W/SCREW
FLAT WASHER
Ø14 x Ø 5 x 1 mm
To avoid possible shock, do not pinch wires between
the hanger ball assembly and the hanger bracket.
7
MAIN FUSE BOX
Figure 1
CEILING
NO
LESS THAN
2.1 M
FLOOR
Figure 2
Figure 3
Downrod/Hanger
Ball Assembly
Figure 4
WARNING
Hanger
Bracket
Screw with hex head
wood screws(2)
Not supplied
Attach Safety Cable to
Ceiling Support Cable
X 1
X 1
