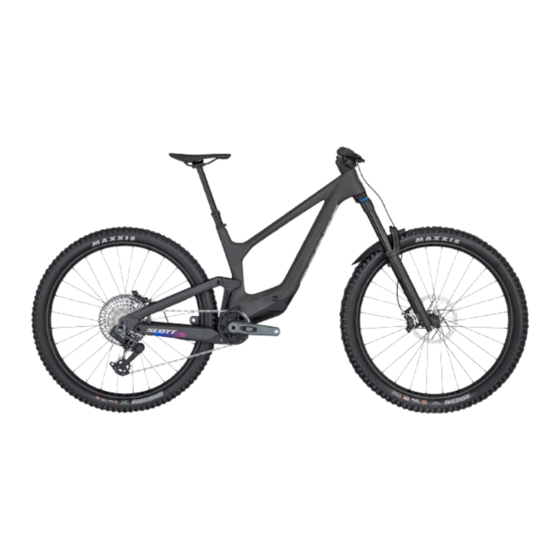

RANSOM CONTENT THE RANSOM SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY. Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm. GEOMETRY & TECHNICAL DATA HEADSET ADJUSTMENT SETTING SAG... -
Page 3: Geometry & Technical Data
RANSOM GEOMETRY & TECHNICAL DATA SEATPOST HARDWARE M.FRAME 31.6 Trunnion SEATPOST CLAMP HARDWARE LINKAGE 34.9 8 x 20 TRAVEL MAX TYRE WIDTH 170 Rr 170 Fr SHOCK LENGTH CHAINLINE SHOCK STROKE MAX CHAINRING Tooth 34 MAX ROTOR 203 Rr 203 Fr (200m Direct) 2024 RANSOM Head tube angle... - Page 4 RANSOM RANSOM GEOMETRY & TECHNICAL DATA CONT. Please observe the maximum seatpost insertion so not to damage the frame. Small: 184 mm Max Insertion Medium: 214 mm Max Insertion Large: 244 mm Max Insertion XL: 273 mm Max insertion Please note on small sized frames it si only possible to use a 500ml water bottle, with a side entry cage.
-
Page 5: Headset Adjustment
RANSOM RANSOM HEADSET ADJUSTMENT It is important to install the headset correctly depending on the set up required. There are two types of headset cups. 0° & 0.6° ( 64° & 65°) These can be indentified from the stamp on the inner surface of the headset cup. -
Page 6: Setting Sag
RANSOM RANSOM SETTING SAG Gently sit on the bike allowing the Put the Tracloc lever in the OPEN sag meter to move. Once completed position. dismount the bike gently. Check the Wear your normal riding gear, value. set the sage meter to zero. If the sag value is not to your liking within the sag range indicated, access the shock by removing the cover and adjusting the... - Page 7 RANSOM RANSOM TRACLOC ONLY BOLD TRACLOC LINKIN 22 P/N: 291219 SCO TWINLOC ADAPTER OFFSET 23 P/N: 421286 SCO TWINLOC ADAPTER INLINE 23 P/N: 421287 SCO TWINLOC BAR CLAMP 22 P/N: 292621 RANSOM LINKAGE BEARINGS LOWER LINKAGE / CHAINSTAY 61802 LINKAGE / SEAT TUBE 61802 LINKAGE / SEATSTAY 61802...
-
Page 8: Cable Routing
RANSOM RANSOM CABLE ROUTING Brake/Derailleur/Tracloc/Dropper Cable Routing 2024 RANSOM | ENGLISH 8 |... -
Page 9: General Spare Parts
RANSOM RANSOM GENERAL SPARE PARTS 421611 SCO SAG INDICATOR RANSOM 24 421610 SCO Link Tie Ransom 24 421589 SCO LINK LOWER OUTER LINK RANSOM 24 421612 SCO SWINGARM REP KIT RANSOM 24 421623 SCO M/P COVER RANSOM 24 2024 RANSOM | ENGLISH 9 |... - Page 10 RANSOM RANSOM GENERAL SPARE PARTS 421621 SCO CABLE/SHOCK DT COVER RANSOM 24 421624 SCO CABLEGUIDE SET RANSOM 24 286000 SCO DROPOUT SRAM UDH 21 Reverse Thread 25 Nm 296609 SCO AXLE RWS REAR 148X12 GENSCAL PLUG 23 297522 SCO STEM SPACER/TOP CAP GENIUS 23 2024 RANSOM | ENGLISH 10 |...
- Page 11 RANSOM RANSOM GENERAL SPARE PARTS 421622 SCO CHAINGUIDE RANSOM 24 297086 SCO STEM ACCESSORY COVER COMBO 22 421614 SCO DT INTERNAL STORAGE SLEEVE RANSOM 24 420546 SCO DT TOOL BAG RANSOM 24 414155 SCO LINK LOWER INNER RANSOM 24 414151 SCO LINK UPPER RANSOM 900 RC 24 414152 SCO LINK UPPER RANSOM 910 24 414153 SCO LINK UPPER RANSOM 920 24 414154 SCO LINK UPPER RANSOM 930 24...
-
Page 12: Manufacture's Guarantee
SCOTT, the duration of the manufacturer’s guarantee is limited to two years. If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer’s guarantee is not extended. The manufacturer’s guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person. - Page 13 0.s.CCITT All rights reserved © 2023 SCOTT Sports SA Distribution: SSG (Europe) Distribution Center SA P.E.D. Zone Cl Rue du Kiell 60 6790 Aubange Belgium SCOTT Sports SA Route du Crochet 11 1762 Givisiez Switzerland webmaster.marketing@scott-sports.com www.scott-sports.com...
