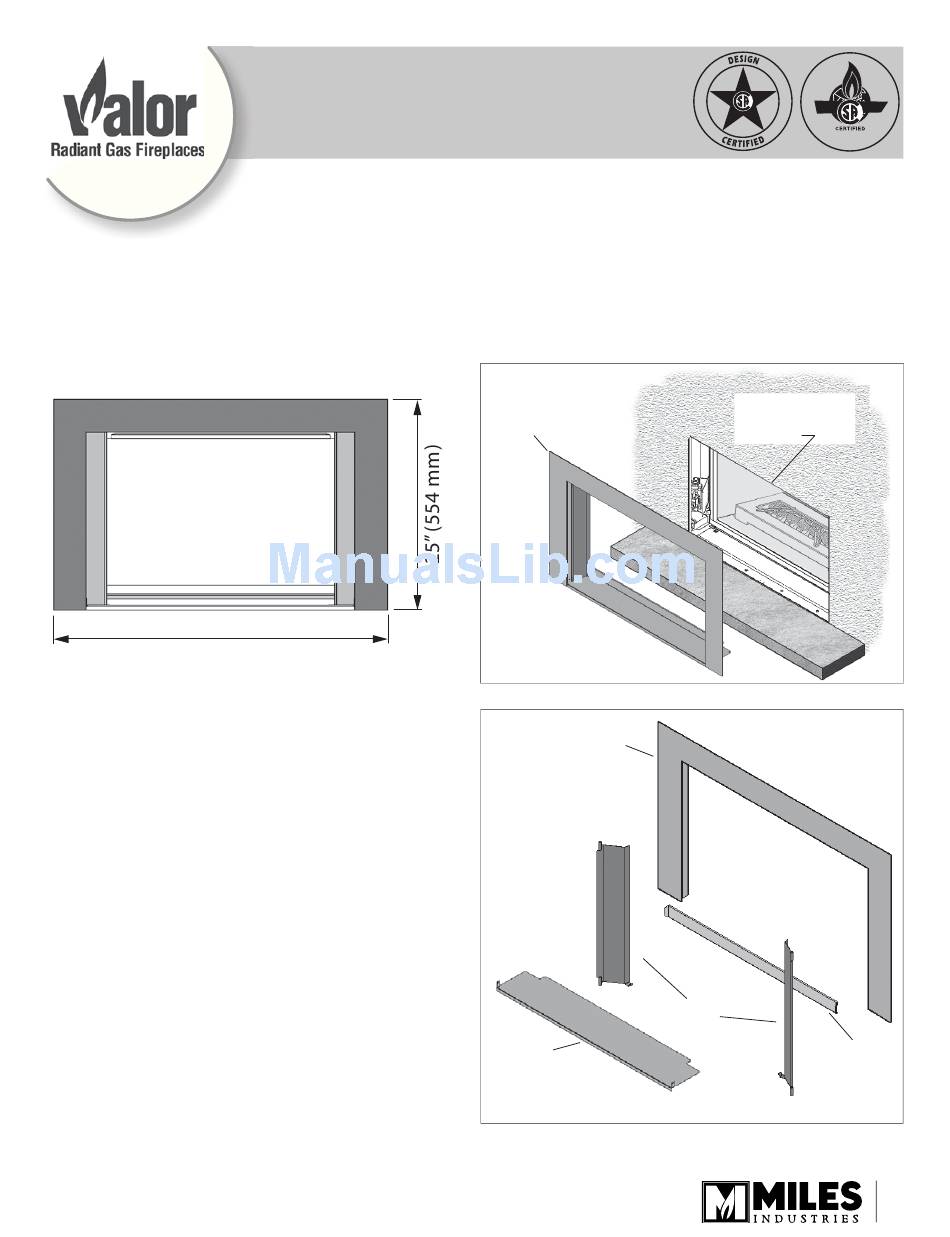

OGUE 1335 Three-Sided Trim Kit for use with the Valor 1300 Vogue fi replace only Installation Instructions 1335 1300 Vogue with Three-Sided wall fi nish around Trim Kit perimeter 39-3/4” (1010 mm) Overview Important information Three-Sided Frame The Three-Sided Trim kit 1335 is intended to be installed on the Valor Vogue 1300 fi replaces fi tted with a hearth.
Installation 1. Fit the three-sided trim to the fireplace and fix it to 4. Sort the left hand side and the right hand side fireplace with 4 screws provided. access doors—the tab to open the door should be at the bottom. Take one door and insert the top hinge pin in the holed bracket located inside the top front of the outer appliance’s liner.
Page 3
Repair Spares List Description Part Numbers 1335MTP 1335MTB Three-Sided Frame 4001667 4001667AZ Window Skirt 4001445AZ 4001445AZ LH Access Door 4002018AZ 4002018AZ RH Access Door 4002019AZ 4002019AZ Overlay 4001884AZ 4001884AZ Screws 4000661 4000661 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
Concept Renseignements importants Bordure à 3 côtés La Bordure à trois côtés 1335 est conçue pour le Vogue 1300 de Valor lorsqu’installé avec un plancher protecteur. Consultez le guide d’installation du foyer Vogue 1300 pour connaître les exigences relatives à...
Page 5
Installation 1. Installez la bordure et fixez-la au foyer à l’aide de 4 4. Il y a un panneau d’accès pour la gauche et un vis fournies. pour la droite. Ils peuvent être identifiés par la position de l’onglet—qui doit se trouver au bas. Insérez la cheville du haut du panneau dans le support de charnière du haut situé...
Page 6
Liste de pièces Description de pièce 1335MTP 1335MTB Bordure à 3 côtés 4001667 4001667AZ Bande de fenêtre 4001445AZ 4001445AZ Panneau d’accès gauche 4002018AZ 4002018AZ Panneau d’accès droit 4002019AZ 4002019AZ Plaque de seuil 4001884AZ 4001884AZ 4000661 4000661 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier.
