INSTALLATION

All the dimensions shown of the illustrations are
expressed in millimetres (mm).
5

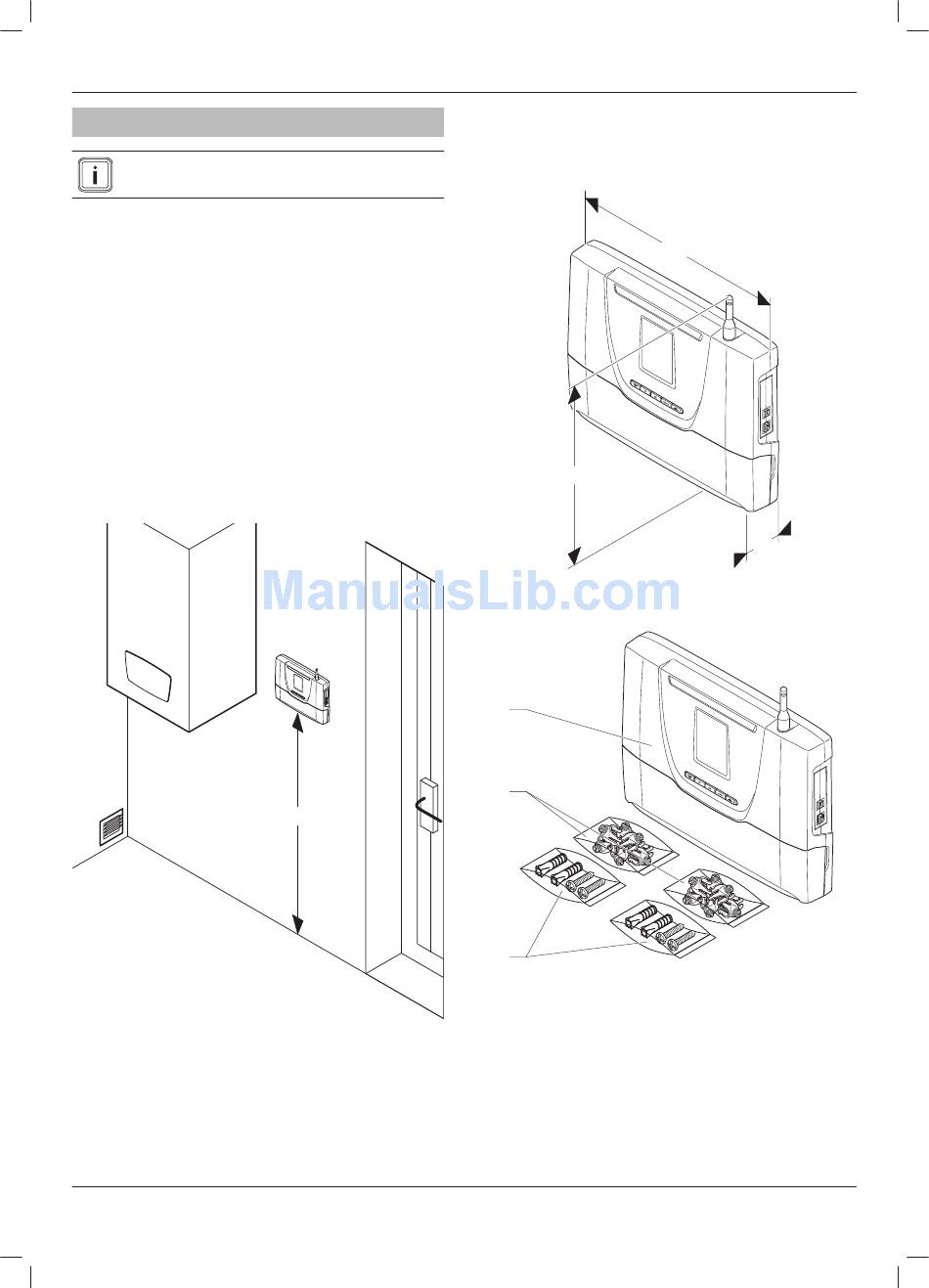

Control unit location

• Take all necessary precautions.
Install the system:
- in a room protected from frost,
- in a convenient location, accessible for wiring and servicing
allowing for visibility of the screen.
Do not install the control unit:
- close to heat sources such as radiators, chimney walls,
televisions, sun rays,
- above a cooking device capable of generating steam and
grease,
- in a room with a lot of dust or with a corrosive atmosphere.
0020094626_00 - 06/10 - Glow-worm
1 5 0
0
6 Installation
6.1

Dimensions

2 6 4
6.2

Scope of delivery

3
2
1
Key
1 2 packs with 2 screws with Ø 6 mm plugs
2 2 packs containing 7 anti-tamper connectors
(one anti-tamper connector installed)
3 Control unit
INSTALLATION
2 9 0
4 5
