INSTALLATION
9.7

Parameters

This menu allows you to adjust different functions in accordance
with the connected appliances and to reset all the parameters.
9.7.1 Maximum fl ow heating temperature
This menu allows you to adjust the maximum fl ow heating
temperature (the value is adjustable between 30 ° C and 80 °
C - factory setting: 73°C).
Ensure that the maximum heating fl ow
temperature setting is compatible with the
installation.

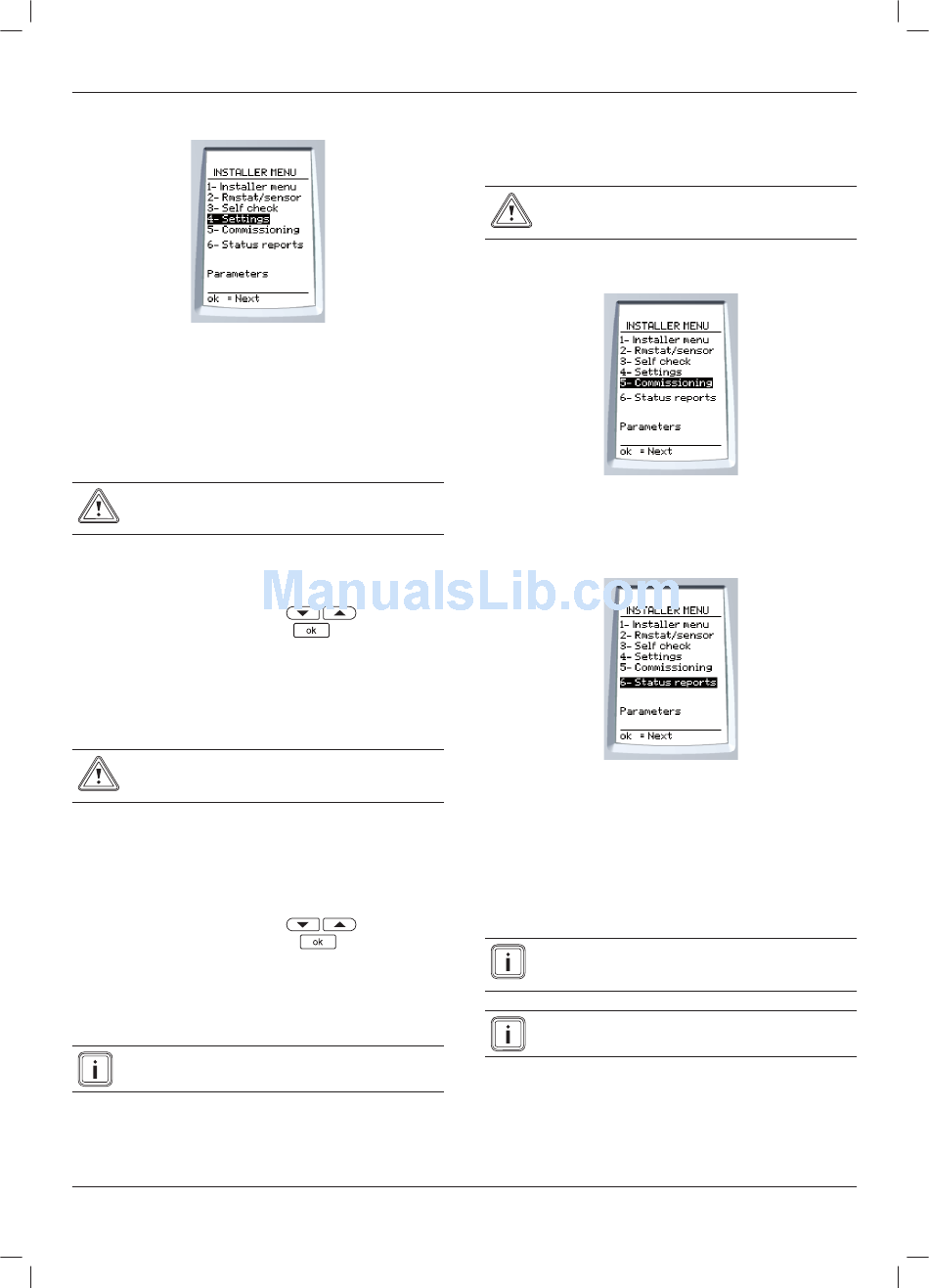

• From the installation menu> select on the screen >
4-settings > heating > maximum fl ow temperature >
maximum fl ow temperature
• Increase or decrease by pressing
desired value and press the button
9.7.2 Selecting the heat curve
This function allows you to select the heating curve (value
adjustable between 0.2 and 4 - factory setting: 1.2 for the high
temperature zone and 0.6 for the low temperature zone).
Ensure that the heat curve is correctly matched
to the design of the heating system.
• From the installation menu> select on the screen >
4-settings > heating > htg curve setting > htg curve
setting
• Consult the outdoor sensor's installation manual to
determine the curve adjustment value.
• Increase or decrease by pressing
desired values and press the button
9.7.3 Hot water, cooling and energy management
The settings available vary in accordance with the installation
diagram and the options selected.
Consult the system manual in order to install and
start-up the system.
- 12 -
9.7.4
This function allows you to reset the parameters of the control
unit (factory setting).
9.8
This menu allows you to carry out the necessary operations on
the appliances following installation.
9.9
to display the
to confi rm.
This menu enables real-time access to:
- the status of the appliances responding to a demand (ON /
OFF)
- the reading the different information available from the
appliances (temperature, pressure, fl ow,)
- the register of last 5 faults recorded for each appliance (date,
time, code and description of faults).
to display the
to confi rm.
- resetting the fault report.
Resetting parameters
The resetting of factory settings is irreversible.
Any customised confi guration of the control unit
will be lost.

Commissioning

Component information

Refer to the "Troubleshooting> failure codes" chapter
for a description of the fault code displayed on the
screen.
The fault status may be "inactive" (disappeared)
"active" (still affects the installation).
