INSTALLATION

9

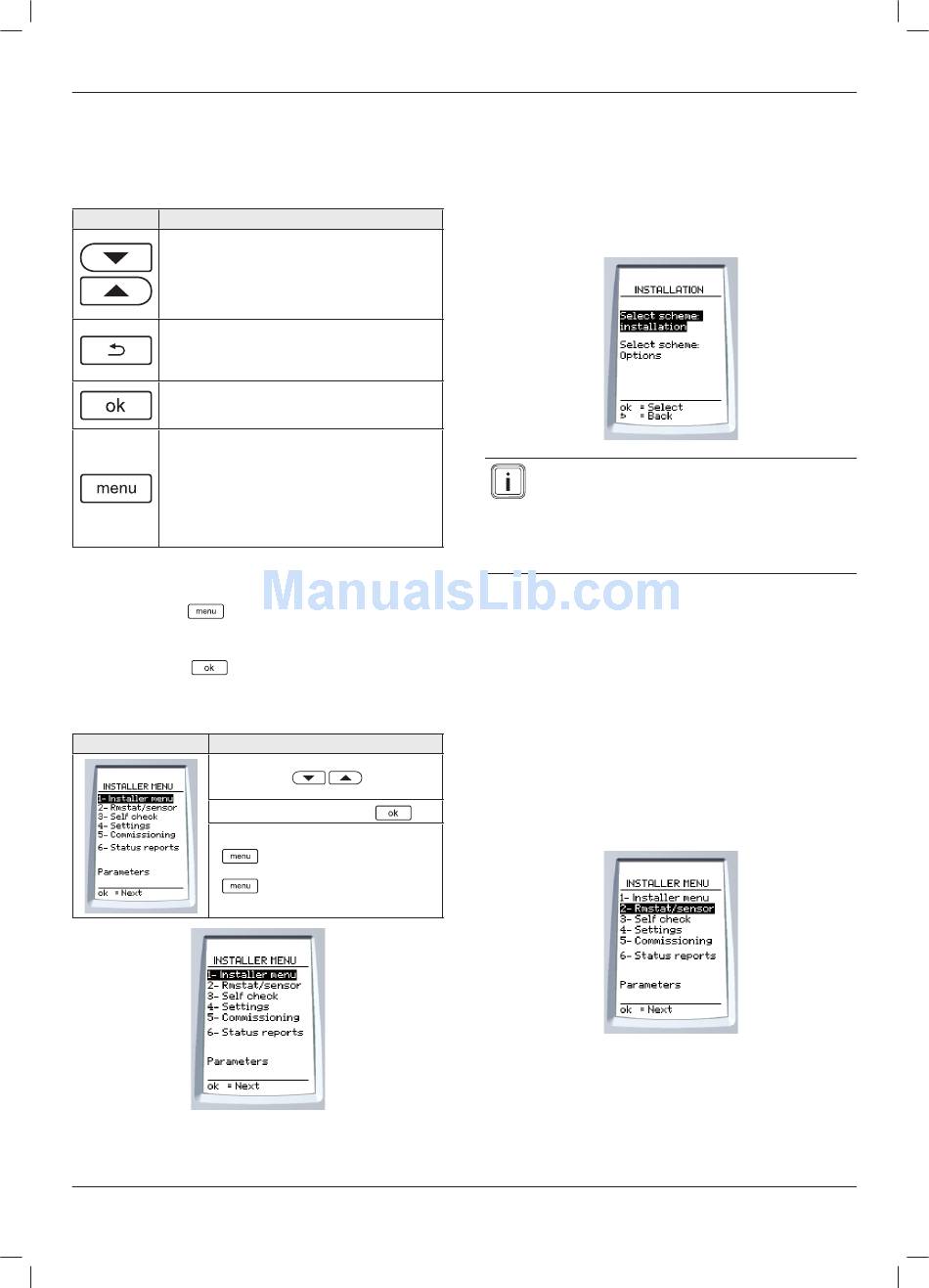

Installation menu

9.1

Description of buttons

Buttons Description
Up / down buttons
The buttons allow:
- To browse menus.
- To decrease / increase value to be adjusted.
- To reset the control unit (factory setting by pressing
simultaneously both buttons for 10 seconds).
Back button
The button allows:
- To return to the previous menu.
- To return to the previous setting.
OK button
The button allows:
- Confi rmation of the selection or setting.
Menu button
The button allows:
- To access the installation menu.
- To access the maintenance menu.
- To return to the installation and maintenance
menus (at any time).
- To return to the main user screen by pressing for 3
seconds.
9.2

Access to the installation menu

• Press the button for 7 seconds.
• Enter the installer access code 96.
• Press the button to confi rm.
9.3

Description of the installation menu

Menu Browsing
Use the keys :
Select by pressing the button :
Press the key :
-
screen,
-
user screen.
The control units installation menu allows you to carry out
certain adjustments to the installation.
- 10 -
to return to the installation menu
for 3 seconds to return to the main
The control unit and the room thermostat have some common
settings. Adjustments made to the control unit automatically
modify those of the Climapro
2
At the end of each confi guration stage, the current stage is
highlighted.
9.4 Installation
The multizone installation screen refers to the
installation of zone valves in the system (Z20 &
Z30 kits can be substituted for zone valves for two
and three zones (same temperature) respectively).
A mixer module can also be used in place of the Z11
kit which mixes one high and one low temperature
zone.
9.4.1 Modifying the installation
This menu allows you to change the diagram number when
modifying the installation's confi guration.
A diagram number is assigned to each possible installation, with
various options available. The number is indicated in the system
manual.
9.4.2 Modifying options
This menu allows you to enable or disable the options available
in the selected installation diagram.
9.5

Thermostat and sensor

Pairing (recognition) is necessary in order to use:
- the Climapro RF room thermostat(s),
2
- the wireless outdoor sensor.
RF room thermostat.
