- Page 1 TM-2430 PC2 Instruction manual...
-
Page 2: Table Of Contents
Selecting and connecting the cuff ..........11 Fitting protective covers (optional) ..........12 Fitting the cuff ................13 Taking readings with the boso TM-2430 PC2............14 Starting automatic interval control ..........14 Automatic inflation pressure adjustment ........15 Maximum inflation pressure restriction ........15 Taking a manual reading ...............15 Interrupting readings ..............15... - Page 3 Replacing batteries ...............17 Charging batteries ................18 Important information on battery charging ........18 Error messages ................20 After use / cleaning and disinfection ..........23 Disposal instructions ..............23 Warranty Conditions / customer service ........24 Accessories ...................25 Technical data ................26 Clinical test ...................27 Metrology test instructions ............28 EMC information ................29...
-
Page 4: Contents Of Package
(one set is already inserted in the device) Cuff for adults (standard CA11/washable) Hip bag with detachable straps and belt Instruction manual for: TM-2430 PC2 TM-2430 PC2 battery charger profile manager Instruction manual One boso profile manager CD-ROM USB cable (serial interface types are also available) -
Page 5: Overview Of The Device

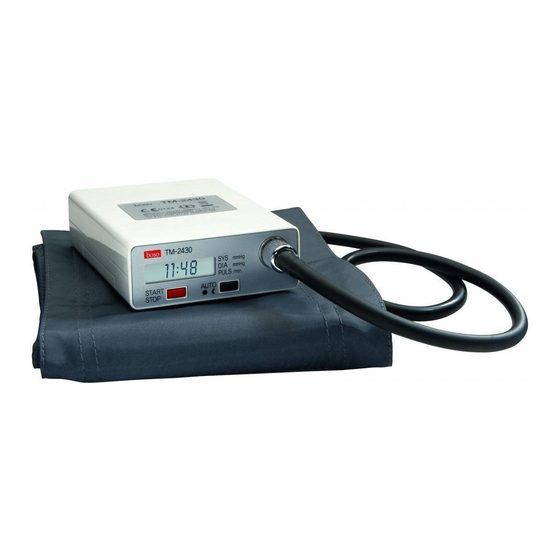

Overview of the device Cuff connection socket START/STOP button AUTO button DAY/NIGHT button START/STOP button: – starts a reading manually (see page 15) – interrupts a current reading (see page 15) AUTO button (DAY/NIGHT button): – 5 seconds: starts automatic interval control (see page 14) –... -
Page 6: Display Screen
Display screen Systolic blood pressure Time Diastolic blood pressure Error message Pulse... -
Page 7: Introduction / Purpose
Dear customer, Thank you for purchasing this boso blood pressure measuring device. The boso brand offers optimum quality and accuracy. 96% of German doctors currently use boso blood pressure measuring devices. This device has undergone our strict quality control procedures and will be a reliable partner in monitoring your patients’... -
Page 8: Area Of Use And Safety Instructions
Area of use and safety instructions The boso TM-2430 PC2 blood pressure measuring device operates according to the oscillometric principle of measurement. The device is used to take readings over a 24-hour period. It is suitable for use both in hospitals and in community medicine. It is not suitable for use on young children, infants or on unconscious patients without supervision. -
Page 9: Safety Instructions
Safety instructions If any liquid has been spilt on the device, immediately remove the batteries and send the device to the customer service depart- ment (see page 24 for the address) for inspection. Only use the batteries contained in the pack which you recei- ved. -
Page 10: Before First Use
TM-2430 PC2. Follow the instructions given on pages 17 and 18 (replacing and charging batteries). Then install the boso profile manager. This software will allow you to programme the blood pressure measuring device and assess... -
Page 11: Selecting And Connecting The Cuff
Selecting the cuff and connecting it to the TM-2430 PC2 Selecting the cuff Only use genuine CA11, CA12 and CA13 cuffs. Select the correct cuff for the arm circumference printed on it. Connecting the cuff Screw the air connection plug of the cuff tube directly into the air connection socket of the blood pressure measuring device (see figure 1). -
Page 12: Fitting Protective Covers (Optional)
Fitting protective covers (optional) If necessary you can also use protective covers to prevent soiling (see accessories on page 25). Apply the protective covers as described below: Protective cover Cuff ➡ Pull the cuff through the loop in the protective cover ➡... -
Page 13: Fitting The Cuff
Fitting the cuff ➡ Place the cuff on the bare upper arm so that the yellow marking is lying over the Arteria brachialis. Most people have higher blood pressure in the left arm, which is why blood pressure is measured in the left arm. -
Page 14: Taking Readings With The Boso Tm-2430 Pc2
Taking readings with the boso TM-2430 PC2 ➡ Once the cuff has been correctly fitted, a test reading can be taken with the boso TM-2430 PC2 using the START/STOP button (the result will only be displayed if the device has been programmed accordingly). -
Page 15: Automatic Inflation Pressure Adjustment
Maximum inflation pressure restriction The boso TM-2430 PC2 has the ability to restrict the inflation pres- sure. See the boso profile manager manual for details of how to do this. Taking a manual reading Patients can start a manual reading in addition to the automatic readings at any time. -
Page 16: Finishing A Reading And Transferring Results
Then connect the TM-2430 PC2 to the computer via the PC con- nection cable. Transfer the data according to the instructions in the boso profile manager. You are strongly advised to empty the results memory once the results have been transferred. -
Page 17: Replacing Batteries
24-hour reading has been completed. To avoid data loss, the data stored in the boso TM-2430 PC2 is buffe- red by means of an internal battery, which is automatically charged by the external batteries. A fully-charged internal battery stores data for approximately 10 days. -
Page 18: Charging Batteries
Charging batteries Place the batteries in the charger and then plug it in. Once the green LED lights up, the batteries are being charged. Completely flat batte- ries take around 42 hours to charge. According to the battery charger manual, it will normally take only around 10 hours to charge batte- ries that have been used to perform a 24-hour reading. - Page 19 Charging batteries If the device is not used for an extended period (4 weeks or more), set the switch in the internal battery compartment to OFF and remove the external batteries in order to prevent any damage that may be caused by leakage.
-
Page 20: Error Messages
Error messages Error Cause Solution code Device not Reprogramme device programmed Zero point cannot Deflate cuff be aligned completely Batteries flat Charge or replace batteries Leak Remove cuff from device and reconnect. Contact your distributor if the error occurs repeatedly. Pressure above 320 mmHg The arm must be kept still while the reading... - Page 21 Error messages Pulse < 30 or >200 No measurable oscillations in the diastolic (E21) Check position or systolic (E22) range and fit of cuff Difference between systolic and diastolic readings < 10 or > 150 mmHg Reading takes longer Contact your than 120 seconds to distributor.
- Page 22 Error messages Error Cause Solution code No contact with batteries Remove batteries, check contacts and clean if necessary, replace batteries. Contact your distributor if the error occurs again. Deflation error Contact your distributor. Data transfer error Check the connection to the PC. Contact your distributor if the error occurs repeatedly.
-
Page 23: After Use / Cleaning And Disinfection
Cleaning and disinfection ➡ Please use a soft cloth, moistened in soapy water if necessary, to clean the boso TM-2430 PC2 and the cuff. Protective covers should be machine-washed at up to 60° C. ➡ Never use solvents, petrol, alcohol or abrasives for cleaning. -
Page 24: Warranty Conditions / Customer Service
Warranty Conditions / customer service We give 2 years warranty from the date of purchase. The purchase date has to be proven by the invoice. Within the warranty period defects are eliminated free of charge. After repairs the warranty period is not extended on the whole unit, but only to the replaced components. -
Page 25: Accessories
Accessories Please only use the accessories recommended by the manufac- turer. Cuffs Adults (normal) CA11 22 - 32 cm 257-4-400 Adults (large arms) CA12 32 - 45 cm 257-4-410 Children CA13 16 - 22 cm 257-4-420 Protective covers (10) Normal 256-7-400 Large arms 256-7-410... -
Page 26: Technical Data
Technical data Product: Blood pressure measuring device for 24-hour readings Type designation: boso-TM-2430 PC2 Rated voltage: 3 x 1,2 V DC Power supply: 3x NiMh batteries (AA) Classification: Defibrillation-protected BF device Measurement range: 40 - 280 mmHg 30 - 200 Puls/min Accuracy: Pressure display ±3 mmHg... -
Page 27: Clinical Test
Clinical test The clinical test was carried out in accordance with the specifications laid down by the AAMI (Association for the Advancement of Medical Instrumentation). Result: Systematic reading deviation: systolic blood pressure: -0,33 mmHg diastolic blood pressure: -0,14 mmHg Empirical standard deviation: systolic blood pressure: ±3,95 mmHg diastolic blood pressure:... -
Page 28: Metrology Test Instructions
Test of pressure circuit tightness and pressure display deviation ➡ Switch off the boso TM-2430 PC2 using the ON/OFF switch. Then set up the test as shown in figure 3. Hold the START/STOP button down and switch the device on again. The START/STOP button must be held down until a flashing “0”... -
Page 29: Emc Information
Guidance and manufacturer’s declaration – electromagnetic emissions The boso unit is intended for use in the electromagnetic environment specified below. The customer of the user of the boso unit should assure that it is used in such an environment. - Page 30 EMC notes Guidance and manufacturer’s declaration – electromagnetic immunity The boso unit is intended for use in the electromagnetic environment specified below. The customer or the user of the boso unit should assure that it is used in such an environment.
- Page 32 0124 BOSCH + SOHN GmbH u. Co. KG Bahnhofstraße 64 · 72417 Jungingen · GERMANY Telephone: +49 (0)74 77 / 92 75-0 · Fax: +49 (0)74 77 / 10 21 Internet: www.boso.de · e-Mail: zentrale@boso.de...
